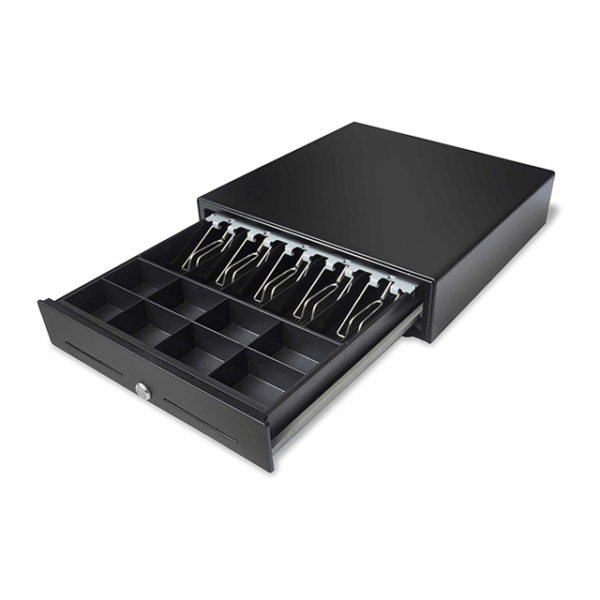

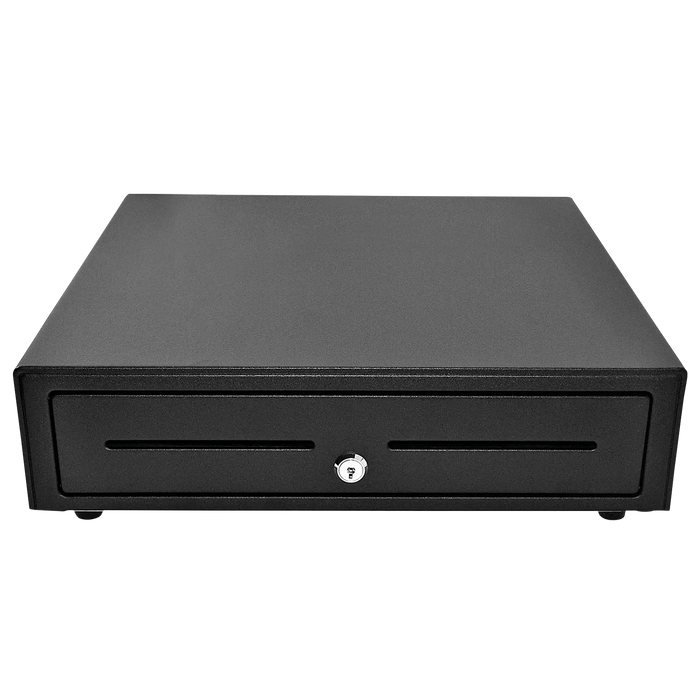

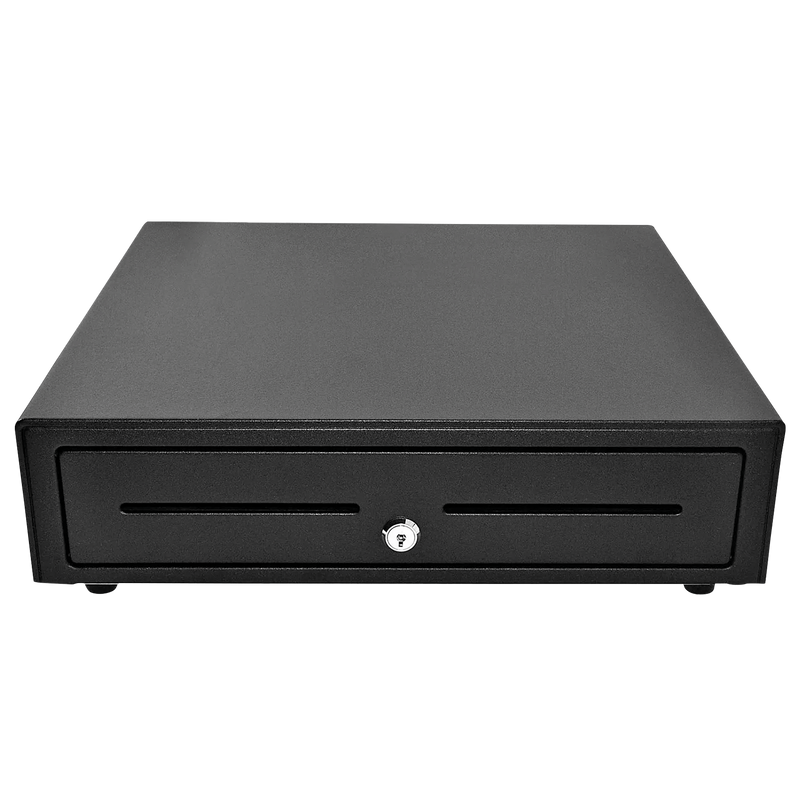

The Star Micronics CD4-1416 heavy-duty cash drawer is a compact, high-performance POS cash till engineered for UK retail shops, cafes, bars, and restaurants where counter space is limited. Part of Star's CD4 "Choice" Series, this 14-inch (350 mm) steel cash drawer provides high security and smooth roller-bearing performance, tested to over 1 million opening cycles.
Designed for full compatibility with major EPOS software including Shopify POS, Square, Epos Now, and Lightspeed, the CD4-1416 features a standard 24V RJ12 printer-driven interface. It plugs directly into Star receipt printers (such as the TSP100, TSP650, and mC-Print series) for automatic drawer opening on every transaction.
Key Features & Specs
-
Compact Footprint: 350 mm (W) x 405 mm (D) x 110 mm (H) – fits narrow checkout counters and small till areas.
-
UK Currency Layout: Removable cash tray with 4 note compartments (fitted with sturdy metal bill clips) and 8 coin compartments.
-
Dual Front Media Slots: Post credit card slips, vouchers, and high-value notes directly into the till base without opening the drawer.
-
Printer Connectivity: Supplied with a standard 24V RJ12 printer cable for instant plug-and-play operation.
-
3-Position Key Lock: Supports manual key opening, electronic drive, and full lock security. Includes 2 keys.
-
Durable Construction: Painted steel casing with a clean stainless steel front panel.
-
Tested Durability: Built for high-volume checkouts with over 1,000,000 smooth opening and closing cycles.
| Specification |
Details |
| Product Series |
Star Micronics CD4-1416 Choice Series Commercial Cash Drawer |
| Dimensions (with rubber feet) |
350 mm (W) x 405 mm (D) x 110 mm (H) / 13.8 in (W) x 16.0 in (D) x 4.4 in (H) |
| Construction & Finish |
Durable steel construction with reinforced top for extra load strength; stainless steel front panel and painted drawer interior |
| Cash Till Configuration |
4 Note / 8 Coin removable insert till |
| Interface & Connectivity |
Standard printer-driven RJ12 kick-out interface (bottom-exit cable included) |
| Lock & Security |
Single-key solution for both cash drawer and optional locking till cover (2 x foldable hinged keys included); manual key release override |
| Reliability |
Rated for 1,000,000 open/close cycles |
| Media Slot |
No media slot |
| Product Weight |
Approx. 6.2 kg |
| Printer Compatibility |
Compatible with Star Micronics and all standard POS receipt printers via RJ12 cash drawer port |
| Variant Details (Black Variant) |
Part Number: 37969430 | Model Code: CD4-1416BKSS48 | Casing Colour: Black with Stainless Steel Front |
| Variant Details (White Variant) |

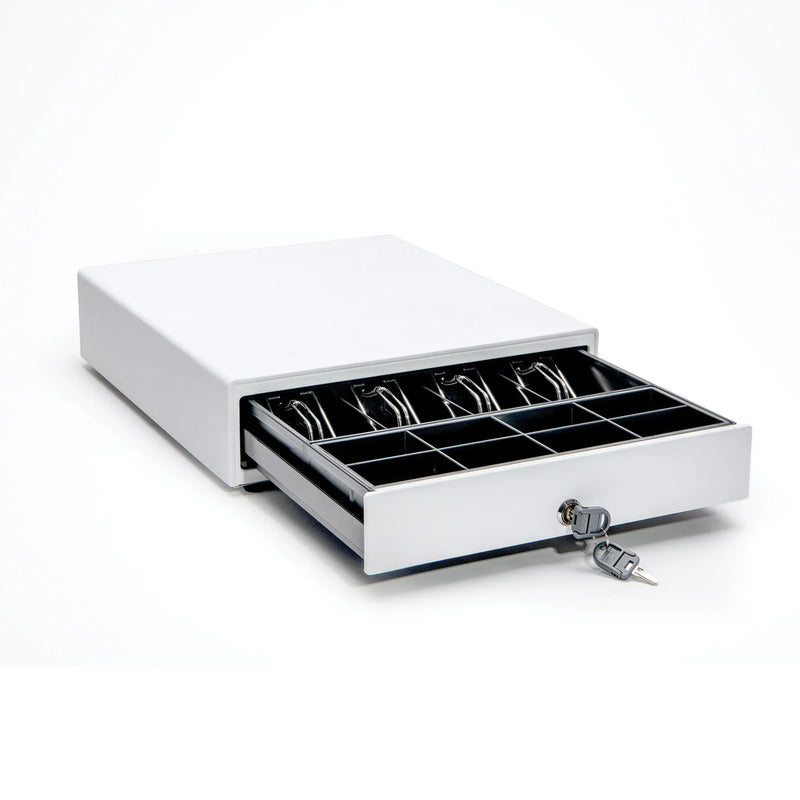

Part Number: 37969440 | Model Code: CD4-1416WTSS48 | Casing Colour: Matte White with Stainless Steel Front |
| Warranty |
1 Year Manufacturer Warranty |
