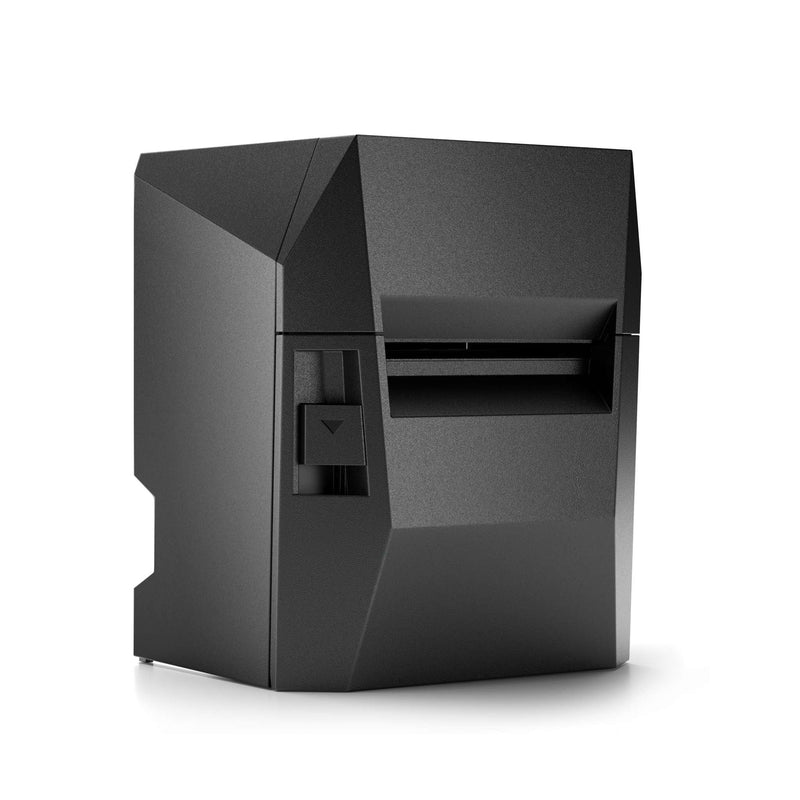

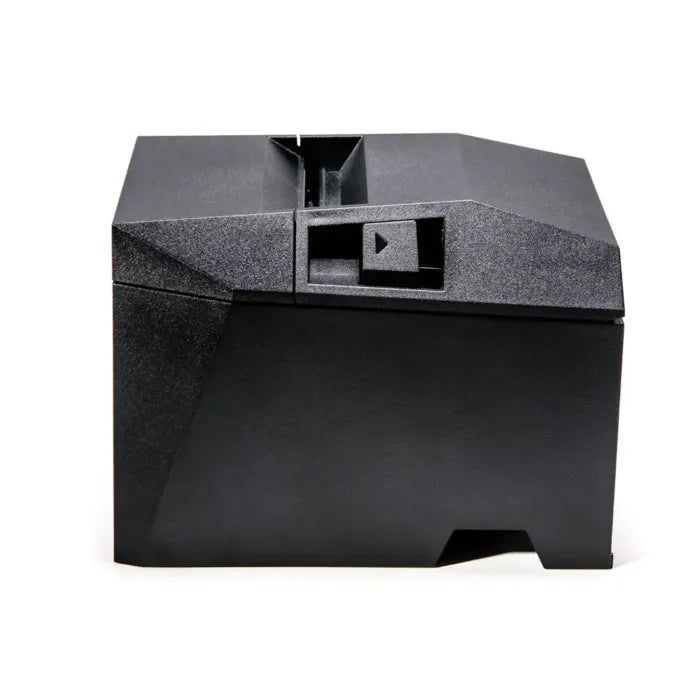

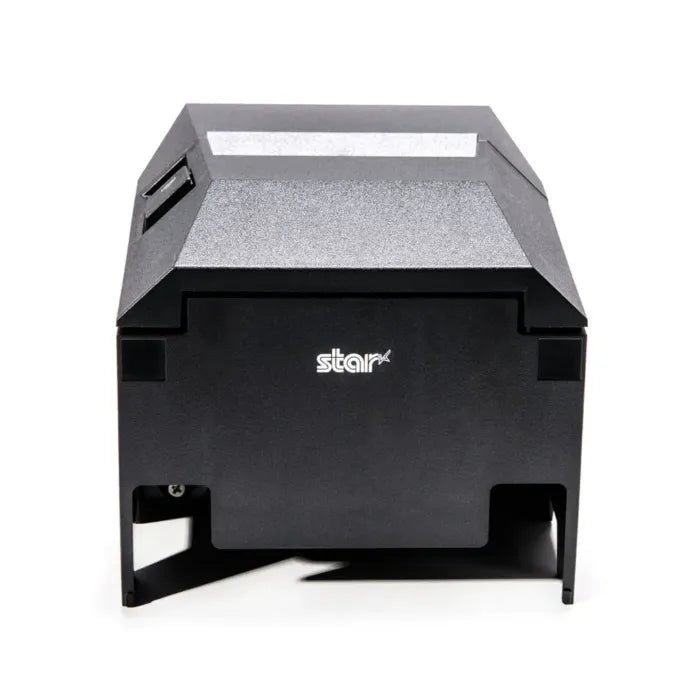

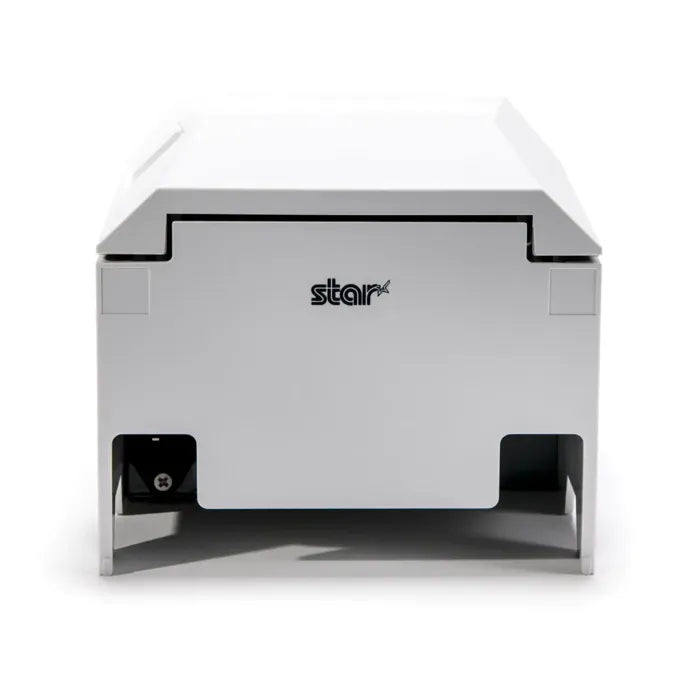

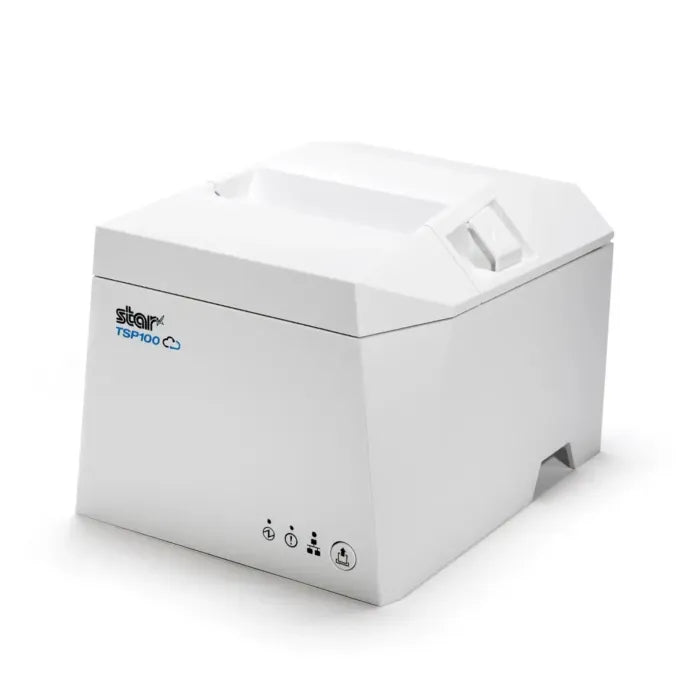

Star Micronics TSP143IV UE Thermal Receipt Printer
Also known as: Star Micronics TSP100IV UE Series
The Star Micronics TSP143IV UE represents the modern dual-interface standard for retail and hospitality point-of-sale environments. Built as the direct, space-saving successor to the legacy TSP100 series, this model replaces multiple historical interface versions by combining hardwired USB-C, USB-A, and Ethernet (LAN) connectivity into a single chassis.
This standalone page covers the standard wired dual-interface version, available in two distinct colourways:
Core Hardware Features
-
Compact Footprint & Internal Power: Features a redesigned polygon chassis that reduces required counter space by 20% compared to older TSP143III models. The 24VDC power supply is completely internal, eliminating external power bricks and simplifying cable management.
-
Android Open Accessory (AOA) Protocol: The integrated USB-A port supports Android Open Accessory technology. When connected to a compatible Android tablet via a standard USB cable, the printer establishes a direct physical data connection while simultaneously delivering a 1.5A charge to the tablet to prevent wireless network dropouts.
-
Native CloudPRNT Next Technology: Operating via the MQTT communication protocol, built-in CloudPRNT Next allows the printer to communicate directly with your online web server. It pulls and prints online orders from e-commerce platforms and restaurant delivery software automatically, without requiring a local PC or tablet to act as an intermediary bridge.
-
Integrated Receipt De-Curl Function: To maintain neat presentation and ease ticket handling, a mechanical de-curl feature straightens the thermal paper roll memory as it prints, ensuring receipts emerge flat from the paper exit rather than tightly coiled.
-
Manufacturer Warranty: Backed by Star Micronics' standard 4-Year Limited Manufacturer Warranty (including printhead and cutter coverage) for complete B2B reliability.
What's in the Box?
-
Star Micronics TSP143IV UE Thermal Printer (Grey or White variant)
-
Region-specific mains power cables (UK & EU)
-
USB-C to USB-A interface cable
-
Ethernet network cable
-
58mm paper roll guide
-
Quick Setup Manual
| Specification |
Details |
| Product Series |
Star Micronics TSP143IV UE (TSP100IV Series) Thermal POS Receipt Printer |
| Print Technology & Design |
Direct thermal line printing with compact internal power supply; supports horizontal, vertical, or integral wall-mount orientation |
| Print Speed |
Up to 250 mm/sec |
| Print Resolution |
203 x 203 DPI (8 dots/mm) |
| Print Width |
72 mm max. (on 80 mm paper width) | 51 mm max. (on 58 mm paper width) |
| Paper Specifications |
Paper Width: 80 mm standard (58 mm using included paper guide) | Maximum Roll Diameter: 83 mm | Thin paper support down to 49 µm | Paper Load: Drop-in & print |
| Auto Cutter & Reliability |
Guillotine auto-cutter (partial cut) | Cutter Lifespan: 2 million cuts | MCBF: 60,000,000 lines |
| Connectivity & Interfaces |

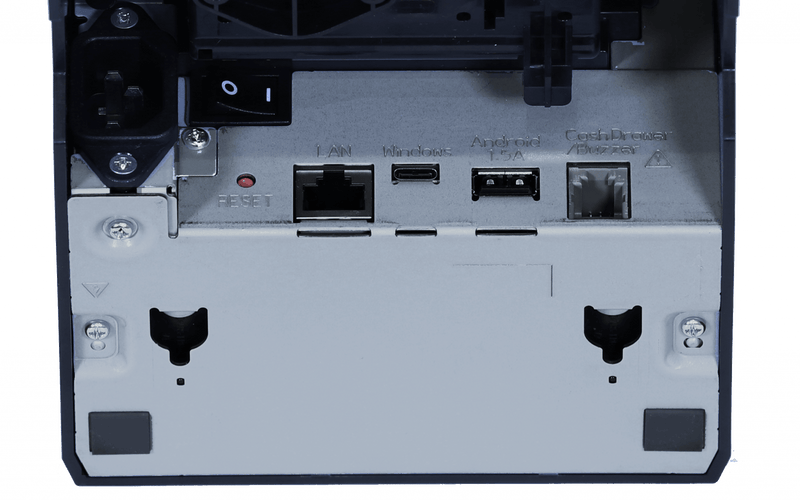

USB-C (Data interface), USB-A with Android Open Accessory (AOA) support (Direct Data & Charge for Android devices), Ethernet (LAN 10/100Base-T), Cash Drawer Kick-out (RJ12), optional Wireless LAN (via MCW10 adapter) |
| Cloud & Web Printing Features |
Star CloudPRNT™ (Direct printing from web servers), Star Cloud Services support |
| Power Supply & Consumption |
Internal Power Supply (AC 100V–240V, 50/60 Hz) | Energy Star Certified |
| Dimensions & Weight |
140 mm (W) x 169 mm (D) x 123 mm (H) | Weight: Approx. 1.6 kg |
| Supported Operating Systems |
iOS, Android, Windows, macOS, Linux |
| Included Accessories |
Internal Power Supply, UK & EU Mains Cables, USB-C to USB-A Cable, Ethernet LAN Cable, 58mm Paper Guide, Setup Sheet |
| Variant Details (Charcoal Grey) |

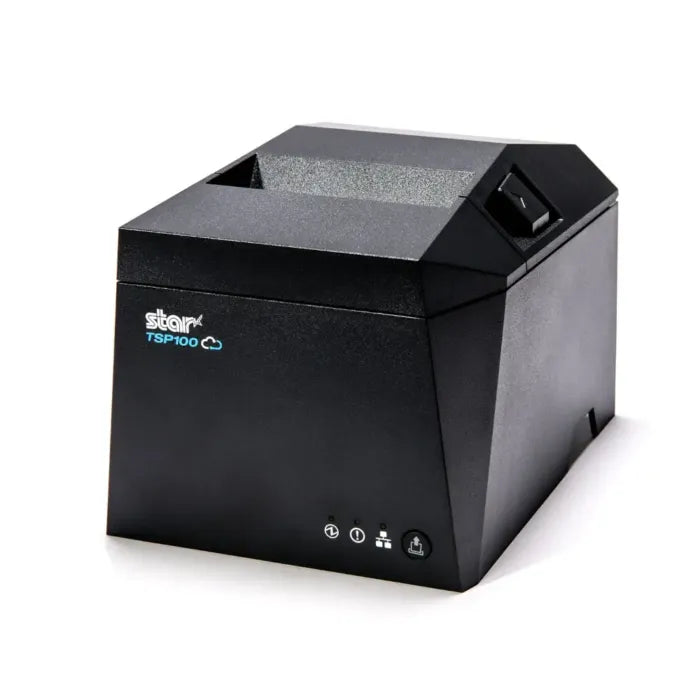

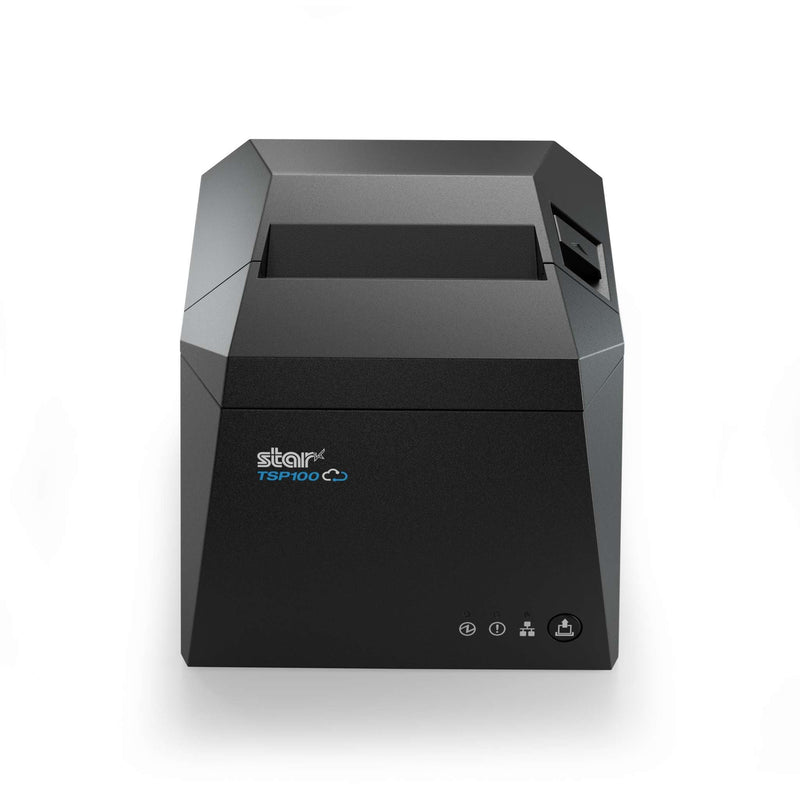

Part Number: 39473090 | Model: TSP143IV UE GRY | Colour: Charcoal Grey | Interfaces: USB-C, USB-A, Ethernet, CloudPRNT | Price: £194.00 |
| Variant Details (White) |

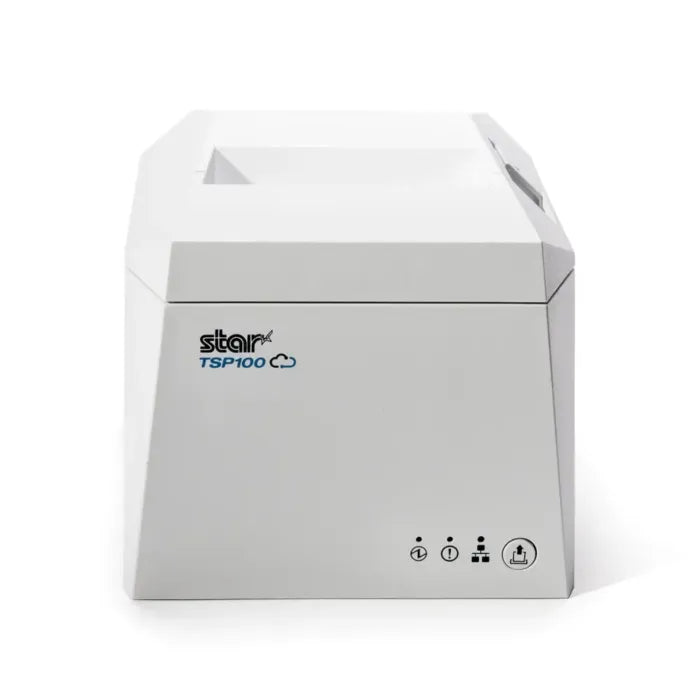

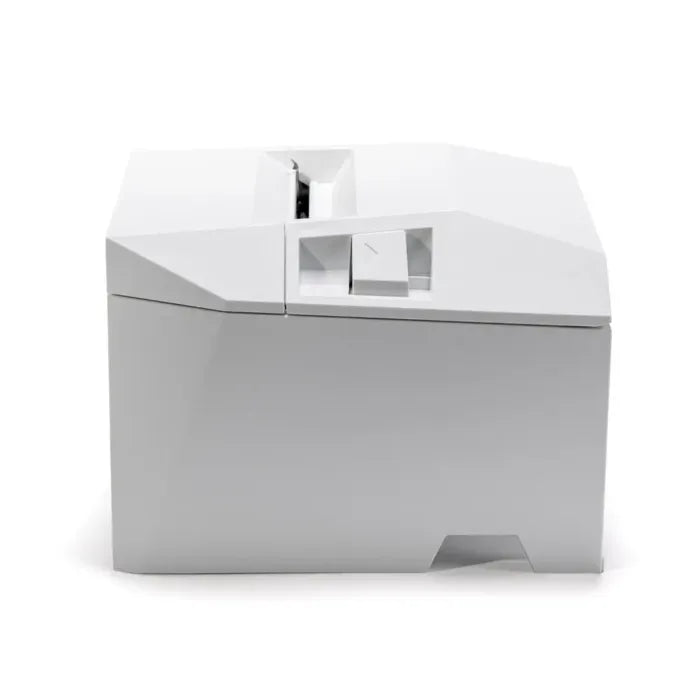

Part Number: 39473190 | Model: TSP143IV UE WT | Colour: White | Interfaces: USB-C, USB-A, Ethernet, CloudPRNT | Price: £194.00 |
| Warranty |
4 Years Manufacturer Warranty (including Print Head and Cutter) |
