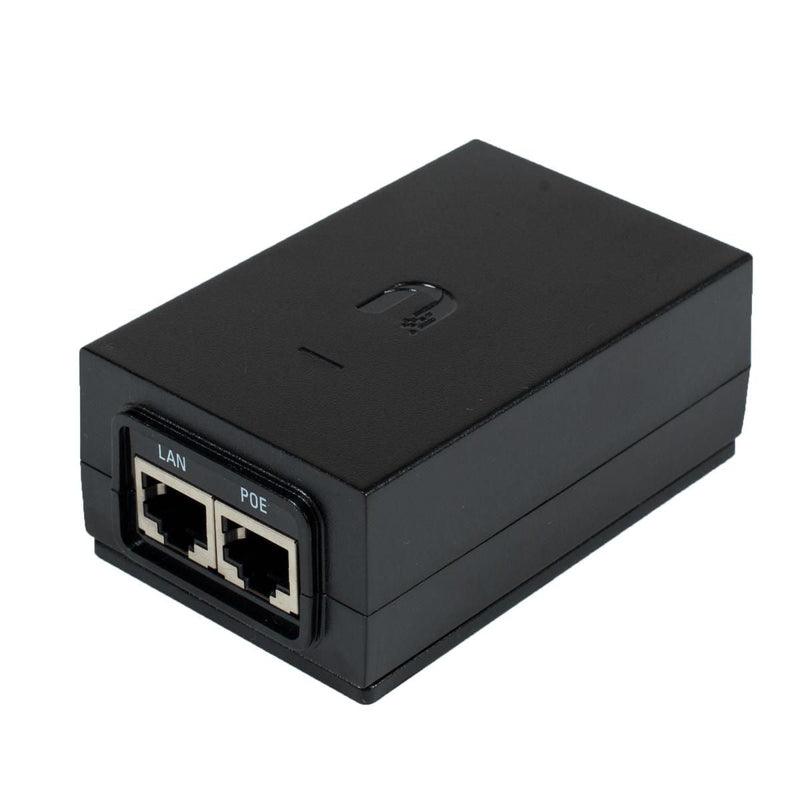

Ubiquiti 48V DC 24W Fast Ethernet Passive PoE Injector (POE-48-24W)

Authorised Supplier – Full Warranty & Genuine Stock

Ubiquiti 48V DC 24W Fast Ethernet Passive PoE Injector (POE-48-24W)

SKU POE-48-24W
by Ubiquiti
€11.95 - €11.95
€11.95
€11.95 - €11.95
€11.95
Return Policy Read our Returns & Refunds Policy.
Fast Shipping Across Europe Orders are processed quickly with reliable, trackable delivery throughout Europe.
Need Expert Advice? Questions on compatibility? Email us at hello@thepointofsale.store.

Product Overview The Ubiquiti POE-48-24W is a reliable external Power over Ethernet adapter designed to supply up to 24W of continuous electrical power alongside standard network data. Delivering a stable output of 48V DC at 0.5A, this variant is equipped with a standard 10/100 Fast Ethernet interface, making it a cost-effective choice for powering legacy wireless access points, client premises equipment (CPE), and base stations where multi-gigabit speeds are not required. Built to industrial manufacturing standards, it incorporates critical grounding protection and internal surge suppression to actively defend your connected hardware investments from unexpected electrical faults.

Key Features

  • 24W Continuous Output: Delivers a reliable 48V DC supply at up to 0.5A, perfectly matched to the operational demands of non-Gigabit network endpoints.

  • 10/100 Fast Ethernet Pathing: Features standard 10/100 Mbps RJ45 ports to safely route data and power over copper network cables without premium cost overheads.

  • Electrostatic Discharge Protection: Employs a dedicated earth-grounding path within the AC power delivery cord to minimise the risk of catastrophic component failure caused by static build-up on outdoor cabling.

  • Surge and Voltage Suppression: Integrates difference and common mode clamp arrays that react to line drops and sudden voltage spikes in less than one nanosecond.

  • Interlocking Wall Mount Support: Fully compatible with Ubiquiti wall-mounting clips (such as the POE-WM), ensuring neat installation inside compact enclosure cabinets or equipment walls.

Technical Specifications

  • Manufacturer Part Code (MPN): POE-48-24W

  • Product Type: Passive Power over Ethernet (PoE) Injector

  • Dimensions: 88 x 57 x 33 mm

  • Weight: 135.5 g

  • Output Voltage: 48V DC @ 0.5A

  • Power Capacity: 24W

  • Input Voltage: 90–260V AC @ 47–63Hz

  • Input Current: 0.6A @ 120VAC | 0.4A @ 240VAC

  • Interface Ports:

    • 1 x 10/100 Data IN (RJ45 Shielded Socket)

    • 1 x 10/100 Data & PoE OUT (RJ45 Shielded Socket)

  • PoE Pin Configuration: 2-Pair Powering; Pins 4, 5 (+) and Pins 7, 8 (-)

  • AC Connector Interface: IEC-320 C6 (C5/C6 "Cloverleaf" configuration)

  • Clamping Protection: 11V Data / 60V Power

  • Max Surge Discharge: 1500A (8/20 µs) Power

  • Response Time: Less than 1 ns

  • Operating Temperature: 0 to 40°C

  • Certifications: CE, FCC, IC, UL, NDAA Compliant

What's in the Box?

  • 1 x Ubiquiti 48V 24W Fast Ethernet Passive PoE Injector

  • 1 x UK Mains Power Cable (3-pin Grounded UK Plug)
