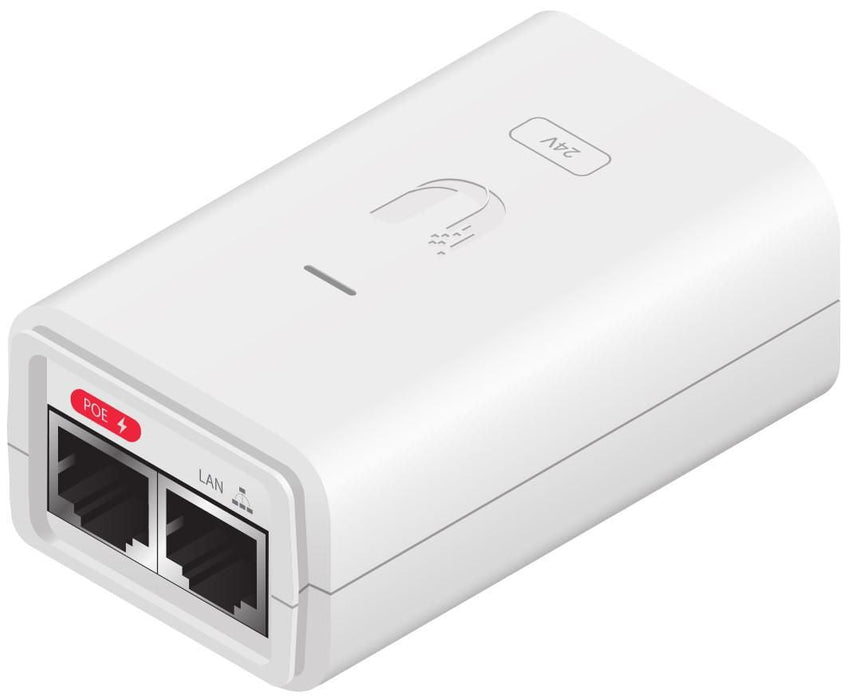

Ubiquiti 24V DC 7W Gigabit Passive PoE Injector - White (POE-24-7W-G-WH)

Ubiquiti 24V DC 7W Gigabit Passive PoE Injector - White (POE-24-7W-G-WH)

SKU POE-24-7W-G-WH
by Ubiquiti
€6.95 - €6.95
€6.95
€6.95 - €6.95
€6.95

Product Overview The Ubiquiti POE-24-7W-G-WH is a compact, ultra-low-power external Power over Ethernet adapter styled in a clean white finish. Supplying a continuous output of 24V DC at 0.3A for a maximum capacity of 7W, this injector is designed to run efficient, low-draw network endpoints—such as the UniFi UAP-AC-Lite and UAP-AC-LR (when deployed in standard non-cascading configurations) or airMAX client devices. Outfitted with a pass-through Gigabit LAN port interface, it ensures your backhaul transmission lines suffer zero bandwidth restrictions. It also features a physical remote reset button that allows installers to power-cycle or factory-restore connected outdoor devices directly from the safety of the indoor comms cupboard.

Please Note: This adapter outputs low-power passive 2-pair PoE and does not support active 802.3af/at/bt switching lines. Check the exact maximum power draw and voltage requirements of your target device before installation.

Key Features

  • 7W Low-Power Efficiency: Supplies a highly stable 24V DC up to 0.3A, matching the energy profiles of lightweight wireless access points and compact building-to-building bridges.

  • Unthrottled Gigabit Interface: Built with high-speed pass-through Data IN and PoE OUT RJ45 ports to maintain uncompromised wired network throughput.

  • Integrated Hardware Reset: Features a physical manual reset button on the chassis, allowing you to trigger hardware reboots or factory resets remotely without climbing ladders to access the physical device.

  • Electrostatic Discharge Protection: Utilises a dedicated earth-grounding path inside the mains power cable alongside shielded ports to bleed away static electricity build-up from outdoor copper cable runs.

  • Sub-Nanosecond Transient Shielding: Employs precise common and differential mode clamping circuitry to isolate unexpected voltage surges or lightning spikes in less than one nanosecond.

Technical Specifications

  • Manufacturer Part Code (MPN): POE-24-7W-G-WH

  • Product Type: Low-Power Passive Power over Ethernet (PoE) Injector

  • Dimensions: 72 x 45 x 33 mm

  • Weight: 72.1 g

  • Output Voltage: 24V DC @ 0.3A

  • Power Capacity: 7W

  • Input Voltage: 100–240V AC @ 50/60Hz

  • Input Current: 0.3A @ 120VAC | 0.2A @ 240VAC

  • Interface Ports:

    • 1 x Gigabit Data IN (RJ45 Shielded Socket)

    • 1 x Gigabit Data & PoE OUT (RJ45 Shielded Socket)

  • PoE Pin Configuration: 2-Pair Powering; Pins 4, 5 (+) and Pins 7, 8 (-)

  • Remote Reset Capability: Yes (Integrated Reset Button)

  • AC Connector Interface: IEC-320 C6 (C5/C6 "Cloverleaf" style)

  • Clamping Protection: 11V Data / 60V Power

  • Max Surge Discharge: 1500A (8/20 µs) Power

  • Response Time: Less than 1 ns

  • Operating Temperature: 0 to 40°C

  • Certifications: CE, FCC, IC, UL, NDAA Compliant

What's in the Box?

  • 1 x Ubiquiti 24V 7W Gigabit Passive PoE Injector (White)

  • 1 x White UK Mains Power Cable (3-pin Grounded UK Plug)
