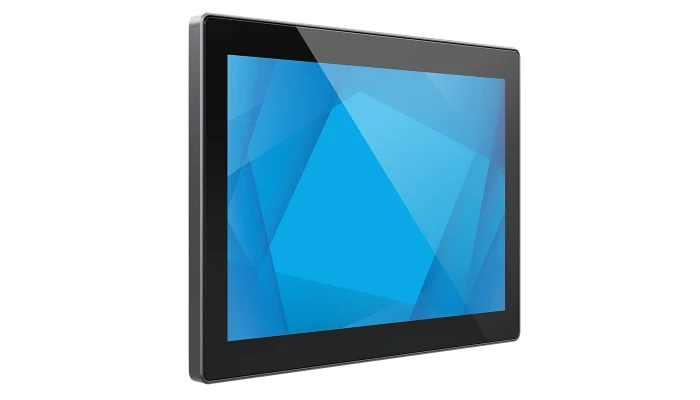

The Elo 0704LS 7-inch Touchscreen Monitor (E967730) delivers a compact, commercial-grade display solution constructed for secondary customer interaction at the point of sale. Featuring an edge-to-edge zero-bezel glass design with direct optical bonding, this compact panel handles customer verification, order confirmation, and promotional content on busy sales counters.
Technical Performance & Key Features
Single Cable Power & Touch Signal Delivery
Connects to host computers using a single USB-C port that transfers video output, touch signals, and operational power concurrently. This single-line connection reduces cable clutter on checkout desks while simplifying setup across commercial installations.
High-Definition Glass Display Panel
Provides HD 1280 x 800 resolution across a 7-inch widescreen active matrix TFT LCD panel. The display glass includes anti-glare surface treatment to cut down reflections from overhead shop lighting, maintaining visual clarity for shoppers and cashiers.
Responsive Touch Responsiveness & Durability
Features TouchPro® Projected Capacitive (PCAP) multi-touch technology that registers up to 10 simultaneous touch points. Built with a lockable rear port cover, connected cables stay locked in place to avoid accidental pull-outs during daily operation.
What's Included in the Box
-
1 x Elo 0704LS 7" Touchscreen Monitor (E967730)
-
1 x USB Type-C to Type-C Cable
-
1 x Quick Installation Guide
| Specification |
Details |
| Brand |
Elo Touch Solutions |
| Product Range |
04LS Series Commercial Touchscreen Displays |
| Model Name |
Elo 0704LS |
| Manufacturer Part Number (MPN) |
E967730 |
| Global EAN or UPC Barcode |
0843173153308 |
| Form Factor |
Zero-Bezel Commercial Touch Display (No Stand Included) |
| Enclosure Colour |
Dark Grey Metallic |
| Display Screen Diagonal Size |
7 in (177.8 mm) |
| Native Resolution |
1280 x 800 HD @ 60Hz |
| Aspect Ratio |
16:10 |
| Active Display Area |
149.76 mm x 93.60 mm (5.90 in x 3.69 in) |
| Touch Technology and Capacity |
TouchPro Projected Capacitive (PCAP) - 10 Touch Points |
| Screen Surface Treatment |
Anti-Glare Surface Coating |
| Display Luminance |
LCD Panel: 400 nits | With PCAP Touch: 360 nits |
| Contrast Ratio |
800:1 (Typical) |
| Viewing Angles |
Horizontal: ±88° (176° Total) | Vertical: ±88° (176° Total) |
| Input Port Architecture |
1 x USB Type-C (Video, Touch Data, and Power Input) |

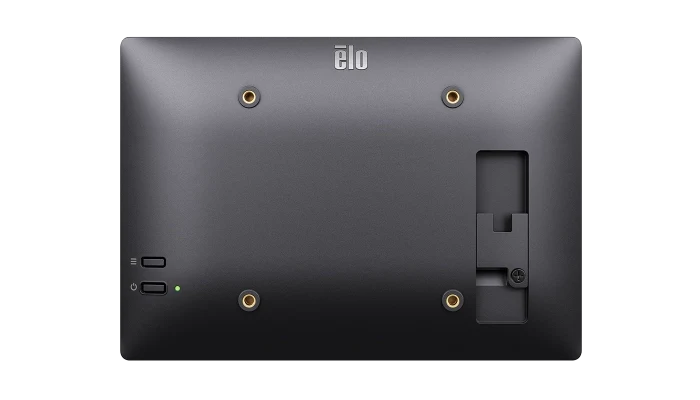

| Mounting Standard Support |
VESA 75 mm x 75 mm 4-Hole Rear Pattern |
| Impact Resistance Rating |
IK07 Rated |
| Power Consumption |
Active ON: 4.8W | Sleep Mode: 0.8W | OFF Mode: 0.15W |
| Monitor Dimensions (W x D x H) |
173.06 mm x 121.56 mm x 14.60 mm (6.81 in x 4.78 in x 0.57 in) |
| Packaging Dimensions (W x D x H) |
232.0 mm x 168.0 mm x 71.0 mm (9.13 in x 6.61 in x 2.80 in) |
| Net System Weight |
0.32 kg (0.71 lbs) |
| Packaged Shipping Weight |
0.67 kg (1.48 lbs) |
| Operating Temperature Range |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature Range |
-20°C to 60°C (-4°F to 140°F) |
| Operating Humidity Range |
20% to 80% Relative Humidity (Non-Condensing) |
| MTBF Reliability Rating |
50,000 Hours Continuous Operating Hours |
| Regulatory Certifications |
UKCA, CE, UL, cUL, FCC, IC, CB, VCCI, MIC, RCM, BSMI, KCC |
| Box Contents |
0704LS Touchmonitor, USB Type-C Cable, Quick Installation Guide |
| Standard Manufacturer Warranty |
3-Year Factory Limited Warranty |
