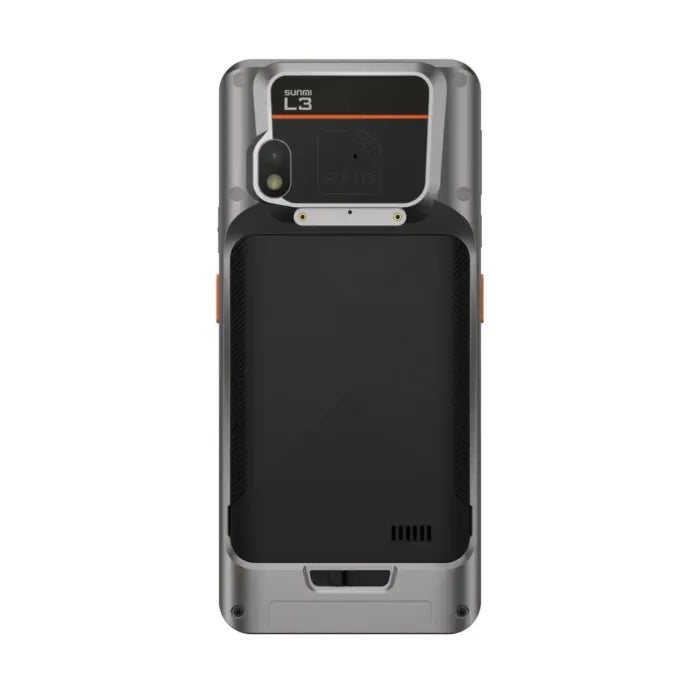

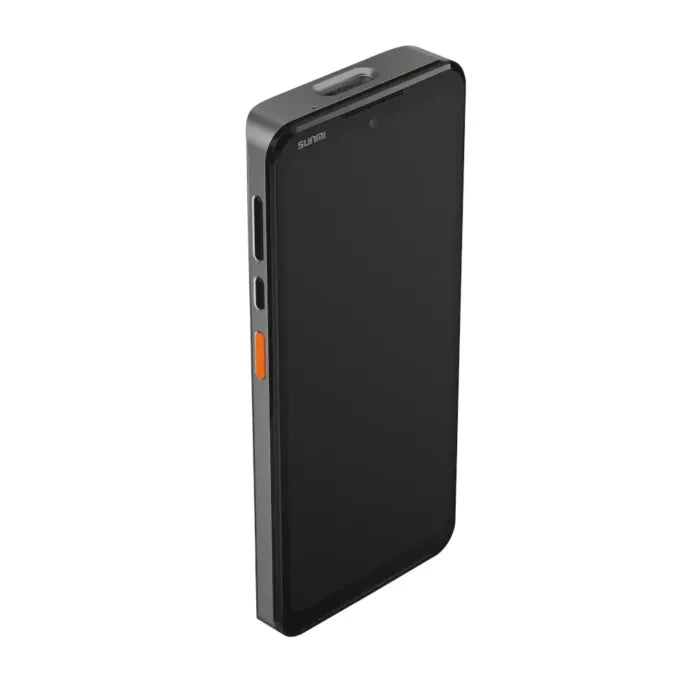

The SUNMI L3 is a heavy-duty handheld computer made for shop floors, warehouses, delivery drivers, and stock management teams. Running on Android 14 with full Google Mobile Services (GMS EDLA) support, this unit gives your staff a fast and clear way to scan stock, run business apps, and collect daily work data.
Main Benefits
-
Large Clear Screen: The big 6.75-inch HD+ touch display lets staff view large stock lists, order details, and customer information easily.
-
Tough Build: IP68 dust and water protection keeps the device safe against spills, dirt, and wet weather. It handles drops onto hard concrete floors from up to 1.5 metres high.
-
Quick Data Reading: Read standard 1D and 2D barcodes fast using built-in scan engines. Dual-sided NFC allows quick tap-to-pay or badge checks from the front or back.
-
Swap Batteries Without Shutting Down: Features a hot-swappable battery setup so you can switch to a fresh main battery without closing your open apps or turning off the handheld unit.
-
Fingerprint Security: Built-in fingerprint sensor lets workers unlock the device in seconds while keeping company data safe.
Available Model Options
-
P09070036: SUNMI L3 – 6GB RAM + 128GB Storage, 13MP Rear + 5MP Front Camera, SS1111 2D Scanner, Dual NFC, Wi-Fi, 4G, Fingerprint Sensor, IP68, EU Power Adapter, 3-Year Warranty.
-
P09070015: SUNMI L3 – 6GB RAM + 128GB Storage, 13MP Rear + 5MP Front Camera, No Scanner (Camera Scanning Only), Dual NFC, Wi-Fi, 4G, Fingerprint Sensor, IP68, EU Power Adapter, 3-Year Warranty.
-
P09070072: SUNMI L3 – 3GB RAM + 32GB Storage, 2MP Rear + 2MP Front Camera, NFC, Wi-Fi, 4G, IP68, EU Power Adapter, 3-Year Warranty.
-
P09070073: SUNMI L3 – 4GB RAM + 64GB Storage, 13MP Rear + 5MP Front Camera, SS1111 2D Scanner, Dual NFC, Backside Pogo Pin Connections, Hot-Swap Battery, Wi-Fi, 4G, Fingerprint Sensor, IP68, EU Power Adapter, 3-Year Warranty.
-
P09070052: SUNMI L3 – 6GB RAM + 128GB Storage, 13MP Rear + 5MP Front Camera, SS1111 2D Scanner, Dual NFC, PSAM Slot, Hot-Swap Battery, Wi-Fi, 4G, Fingerprint Sensor, IP68, EU Power Adapter, 3-Year Warranty.
What Comes in the Box?
-
SUNMI L3 Handheld Mobile Device
-
Rechargeable Main Battery
-
USB Type-C Charging Cable
-
EU Power Adapter
-
Quick Start Guide
| Specification |
Details |
| Product Series |
SUNMI L3 Smart Mobile Terminal |
| Product Model |
T8F1B / T8F1C |
| Operating System |
SUNMI OS 4.0 (Based on Android 14, Google Mobile Services GMS certified) |
| Processor (CPU) |
Octa-Core Processor (Up to 2.2 GHz clock speed) |
| System Memory & Storage |
4 GB RAM + 64 GB ROM or 6 GB RAM + 128 GB ROM (UFS storage interface protocol) |
| Display Size & Resolution |
6.75-inch HD+ IPS Touchscreen with Anti-Fingerprint Coating | Resolution: 720 x 1600 pixels (420 nits brightness) |
| Touch Technology |
Capacitive Multi-Touch Screen (Supports glove operation mode) |
| Barcode Scanner |
Professional 1D/2D Barcode Scan Engine (Optional SS1111 or Zebra SE4710 modules) |
| UHF RFID Module |
Integrated UHF RFID Reader (Optional: 865–868 MHz / 902–928 MHz frequency, 5–33 dB output power, up to 4 m read range, 300 tags/sec read rate) |
| Cameras |
Rear: 13 MP Auto-Focus (AF) Camera | Front: 5 MP Fixed Focus (FF) Camera |
| NFC Reader |
Dual-Sided NFC (Tap on screen and tap on back; Non-RFID models) | Supports SoftPOS, EMVCo PCD L1, ISO/IEC 14443 Type A/B, Mifare, Felica, ISO 15693 |
| Wireless & Network Connectivity |
4G / 3G / 2G Cellular Data, Dual-Band Wi-Fi 2.4 GHz / 5 GHz (IEEE 802.11 a/b/g/n/ac), SUNMI Hyper Wi-Fi (Optional), Bluetooth 5.2 BLE |
| Positioning & Navigation |
AGPS, GPS, Glonass, Beidou, Galileo |
| Security Features |
Fingerprint Sensor integrated into the Power Button |
| Card & Expansion Slots |
1 x Nano SIM + 1 x MicroSD (Up to 256 GB) or 2 x Nano SIM | Optional: 1 x Nano SIM + 1 x eSIM + 1 x MicroSD | Optional: 1 x PSAM |
| Hardware Interfaces & I/O Ports |

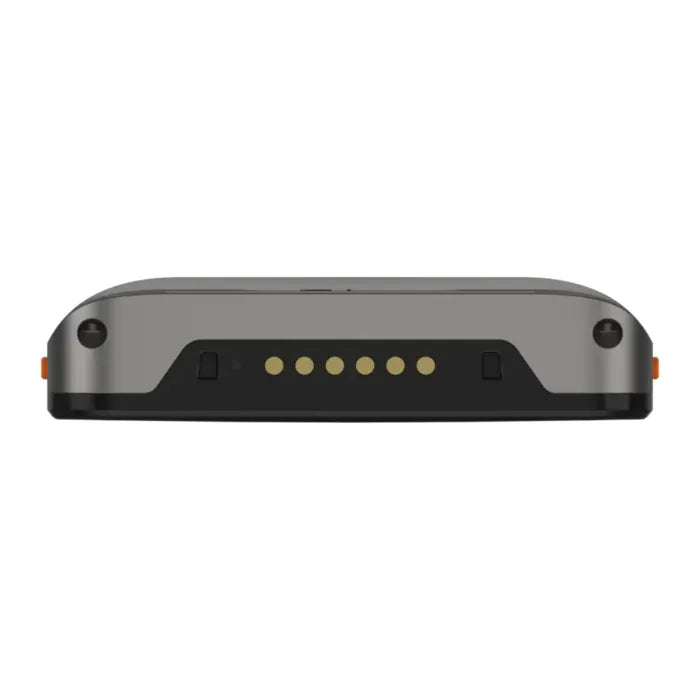

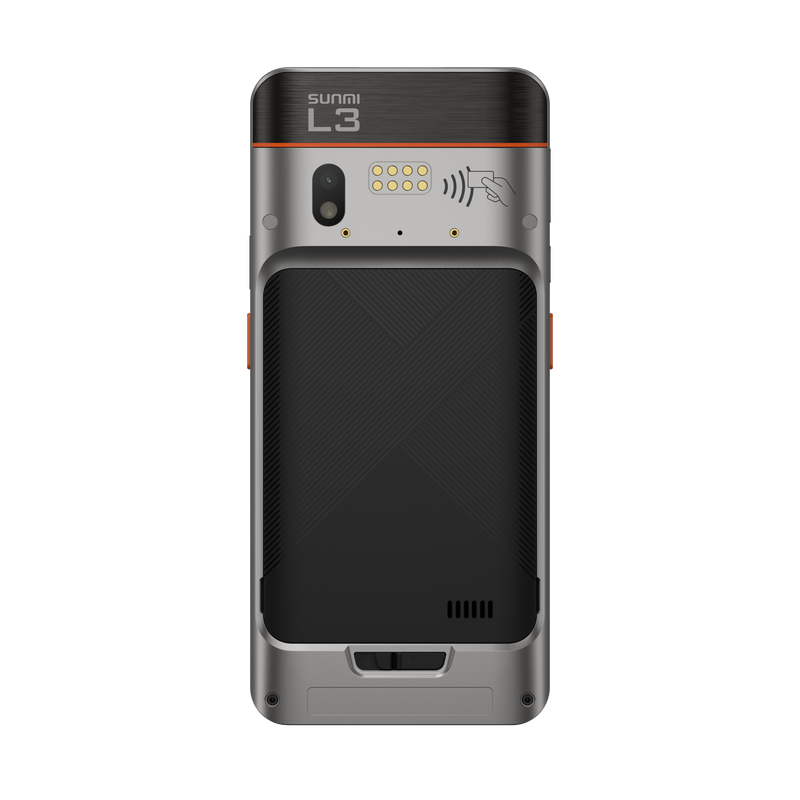

1 x USB Type-C, 6 x Bottom Pogo Pins (for charging), 8 x Rear Pogo Pins (Optional, for accessories) |
| Audio & Physical Buttons |
1 x Speaker, 2 x Microphones | 1 x Power button (Fingerprint ID), 1 x Custom button, 1 x Volume button, 2 x Scan buttons |
| Sensors |
Gravity Sensor, Light Sensor, Proximity Sensor, Geomagnetism |
| Battery & Power Supply |
Removable Lithium Polymer 4.4V / 5000 mAh (Optional Hot-Swap support) | Power Adapter Input: AC 100–240V, Output: DC 9V 2A / 5V 2A |
| Durability & Ingress Protection |
IP68 Dust and Water Resistance | 1.5-metre Drop Test (Concrete floor) | Explosion-proof certified | Metallic finish with corner reinforcement |
| Environmental Conditions |
Operating Temperature: -20°C to 55°C | Storage Temperature: -40°C to 70°C | Operating Humidity: 5% to 95% (Non-condensing) |
| System Dimensions (L x W x H) |
175 mm x 79 mm x 15 mm |
| Product Weight |
Net Weight: 282 g |
| Optional Accessories |
Single charging base, 4-slot charging base, 4-slot battery charger, Trigger handle, Protective case, Tempered glass screen protector, Hand strap, Wrist strap, Lanyard, Shoulder strap |
