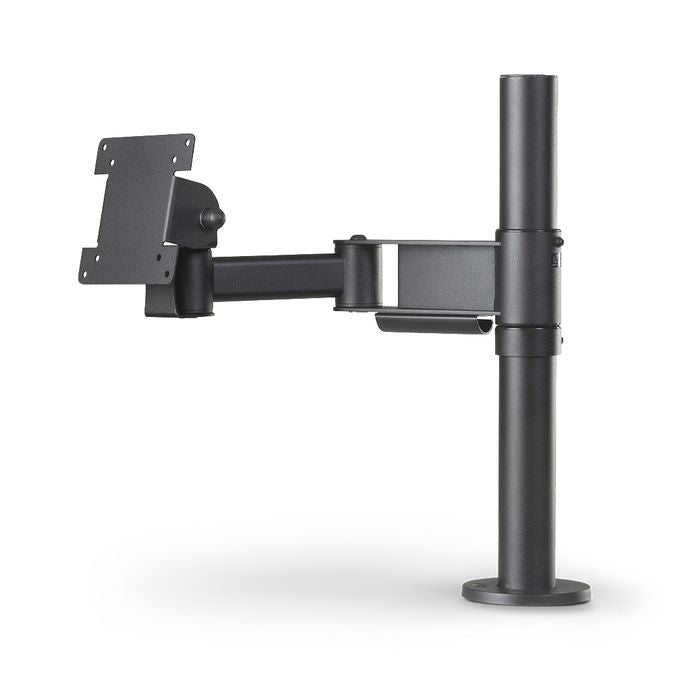

SpacePole Essentials SPV1106-FX-02 | Screen Mount with 300mm Elbow Arm
The SpacePole Essentials SPV1106-FX-02 is a highly flexible point-of-sale mounting solution designed for workspaces that require extended reach and maximum manoeuvrability. Featuring a 300mm elbow arm, this mount allows the operator to effortlessly reposition the screen for order confirmation, digital signatures, or shared use with customers.
Built from robust steel and finished in a professional structured black, the SPV1106-FX-02 is the ideal choice for hospitality desks, retail counters, and service points where ergonomics and customer engagement are top priorities.
Key Features & Benefits
Extended Elbow Arm: The 300mm elbow (articulated) arm provides a superior range of motion compared to standard fixed mounts, allowing for greater accessibility in cramped or deep counter environments.
Superior Ergonomics: Offers a full 310° rotation and a versatile tilt range of +10° to -70°, ensuring the display is always at the perfect angle to reduce glare and staff fatigue.
Universal VESA Support: Equipped with a dual-standard VESA plate that accommodates both 75x75mm and 100x100mm mounting patterns for screens up to 27 inches.
High Weight Capacity: Engineered to support heavy-duty touchscreens and all-in-one POS terminals weighing up to 12kg.
Clean Countertop: Features integrated internal and external cable management, ensuring that power and data leads are safely tucked away and protected from tampering.

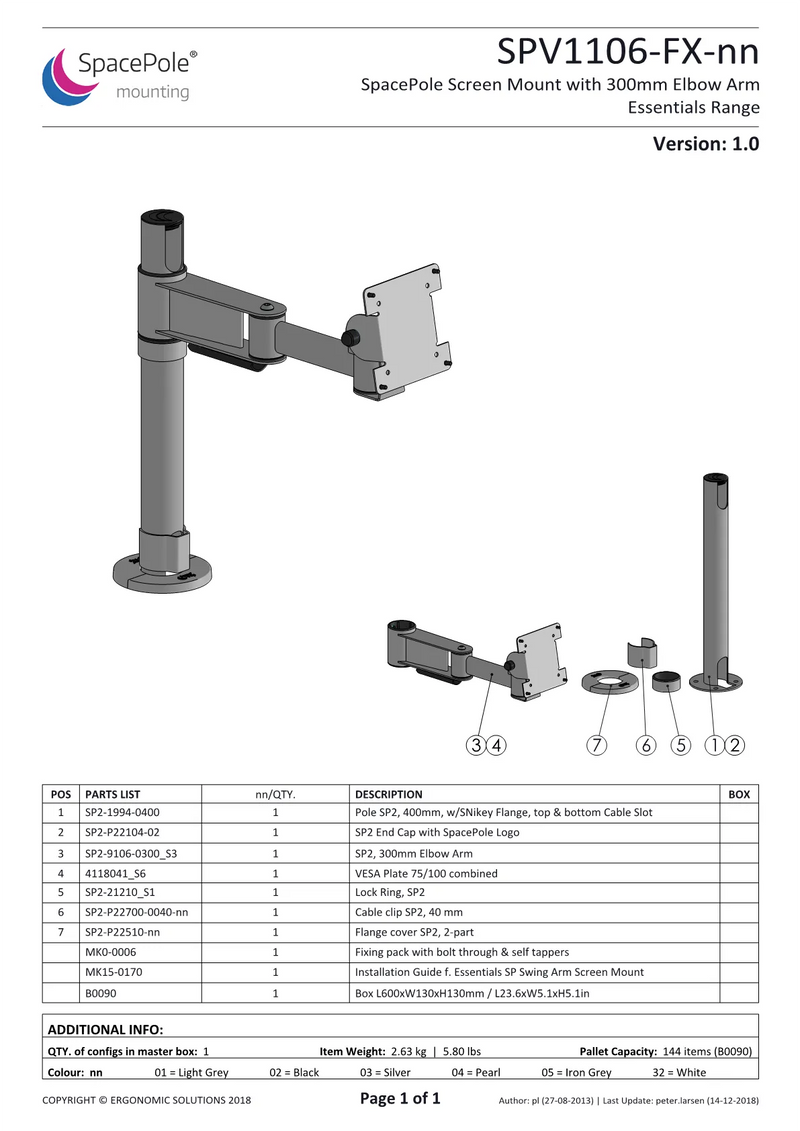

What’s in the Box?
The SPV1106-FX-02 kit comes with everything required for a professional, high-reach installation:
- 400mm Support Pole (44.5mm diameter)
- 300mm Elbow Arm (Articulated swing arm)
- VESA 75/100 Mounting Plate
- Standard Flange Base (97mm diameter footprint)
- Flange Cover (To conceal base mounting screws)
- Lock Ring (For secure height positioning on the pole)
- Cable Management Clips (Internal path and external clips)
- Fixing Pack (Essential screws and hardware for assembly)
| Feature | Details |
| Model Number | SPV1106-FX-02 |
| Colour | Black (02) |
| Pole Height | 400mm |
| Arm Length | 300mm (Elbow Arm) |
| Rotation | 310° |
| Tilt Range | +10° to -70° |
| Max Load | 12kg |
| Material | Metal / High-grade Steel |
| Warranty | 5 Years |
Compatible Accessories
Customise your ergonomic workstation further with these genuine SpacePole accessories:
Payment Terminal Mounts: Use a MultiGrip™ plate to add your card machine to the same pole system.
Scanner Holders: Add a dedicated cradle for handheld barcode scanners (Zebra, Datalogic, etc.) to the lower section of the pole.
Printer Plates: Mount your receipt printer directly onto the pole to free up 100% of your counter space.
Second Screen Mounts: Add a rear-facing customer display for digital signage or transaction details.
