SpacePole Essentials SPV1101-FX-02 | Classic VESA 75/100 Screen Mount

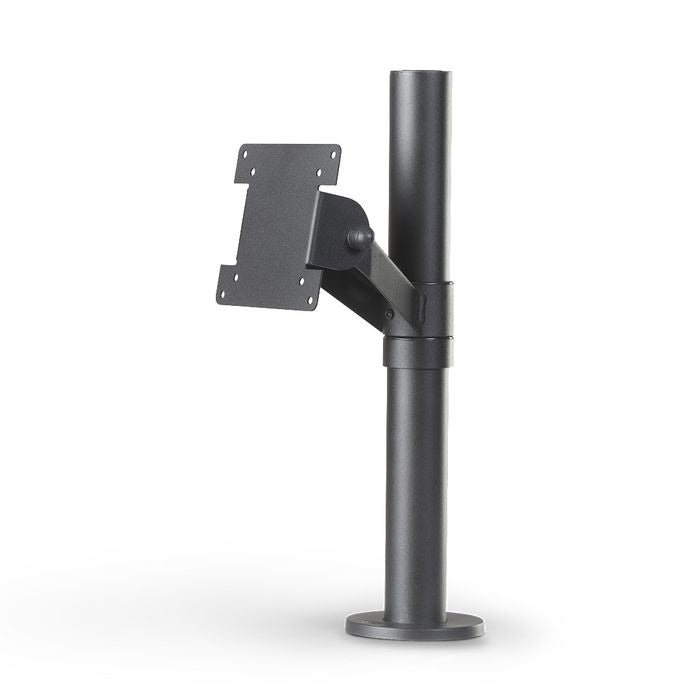

The SpacePole Essentials SPV1101-FX-02 is the definitive "foundation" of the SpacePole range. This classic screen mount is the most widely used pole-mounted solution in the global retail and hospitality sectors. It is designed to provide a stable, professional, and ergonomic mounting point for primary POS touchscreens or monitors.
The "FX" in the part number denotes that this is the updated version (replacing the older SPV1101-02), featuring refined internal components and the same industry-leading durability.
Key Features & Benefits
Industry Standard Design: The classic 400mm pole provides an ideal height for most standard counters, keeping the screen within the operator's eyeline.
Ergonomic Flexibility: Features a 310° rotation and a tilt range of +10° to -70°, allowing for easy adjustments to avoid glare and improve staff comfort.
Superior Strength: Engineered to support displays and all-in-one terminals weighing up to 12kg, far exceeding standard consumer mounts.
Integrated Cable Management: Cables are routed internally through the pole and out of the base, with an additional external clip for peripheral wires.
Antimicrobial Protection: Finished in a structured black powder coating that supports hygiene standards in high-traffic environments.
What’s in the Box?
The SPV1101-FX-02 is a comprehensive mounting kit containing:
- 400mm Support Pole (44.5mm diameter)
- VESA 75/100 Mounting Head (with Angled Connection Joint)
- Standard Flange Base (97mm footprint)
- Flange Cover (to hide the base screws)
- External Cable Management Clip
- Lock Ring (for secondary height security)
- Installation Hardware Pack (M4 screws and base fixings)
| Feature | Details |
| Model Number | SPV1101-FX-02 (Replaces SPV1101-02) |
| Colour | Black (02) |
| Pole Height | 400mm |
| VESA Patterns | 75 x 75mm & 100 x 100mm |
| Rotation | 310° |
| Tilt Range | +10° to -70° |
| Max Load | 12kg |
| Warranty | 5 Years (Metal parts) |
Compatible Accessories
As the core foundation of the SpacePole system, this mount can be expanded with:
Customer Display Adapters: Mount a second, smaller screen to the back of the pole for customer order confirmation.
Payment Terminal Arms: Attach a swing arm (like the SPV2102-02) to the lower section of the pole for an integrated card machine.
Printer Plates: Secure your receipt printer to the side of the pole using a peripheral arm to clear the counter completely.
Scanner Holders: Add a dedicated cradle for handheld scanners like the Zebra DS2208.
