Newland FM430 Barracuda Fixed Mount 2D Barcode Scanner Range (Red Laser Aimer)
Newland FM430 Barracuda Fixed Mount 2D Barcode Scanner Range (Red Laser Aimer)
Newland FM430 Barracuda Fixed Mount 2D Barcode Scanner Range (Red Laser Aimer)

Authorised Supplier – Full Warranty & Genuine Stock

Newland FM430 Barracuda Fixed Mount 2D Barcode Scanner Range (Red Laser Aimer)

SKU NLS-FM430L-U
by Newland
Availability:
57 in stock, ready to be shipped
Availability:
Out of stock
Availability:
17 in stock, ready to be shipped
€135.95 - €145.95
€143.95
€135.95 - €145.95
€143.95
Return Policy Read our Returns & Refunds Policy.
Fast Shipping Across Europe Orders are processed quickly with reliable, trackable delivery throughout Europe.
Need Expert Advice? Questions on compatibility? Email us at hello@thepointofsale.store.

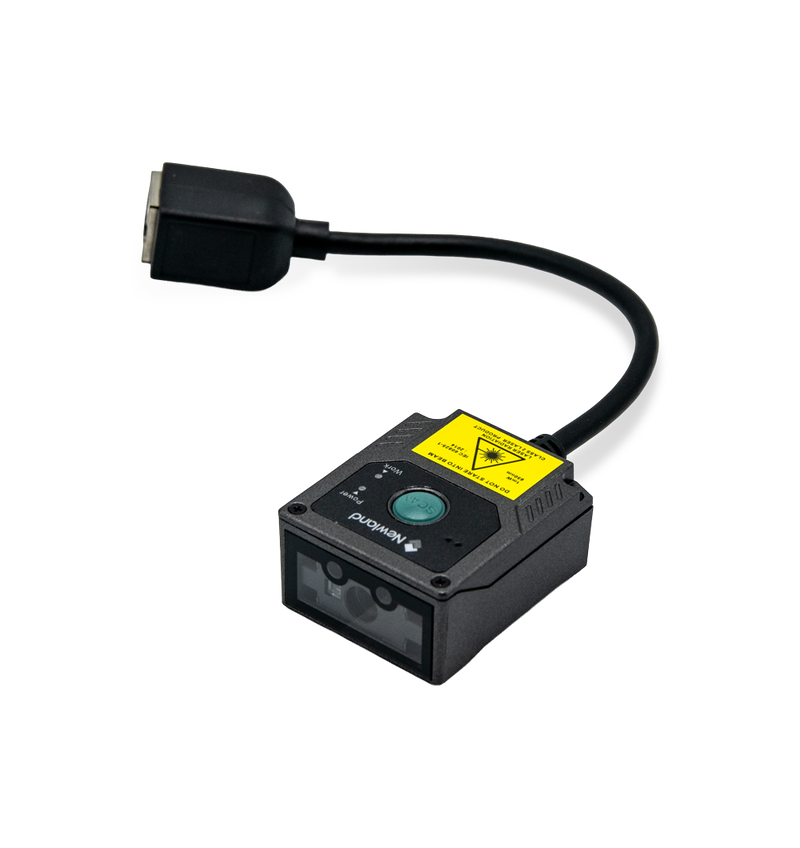

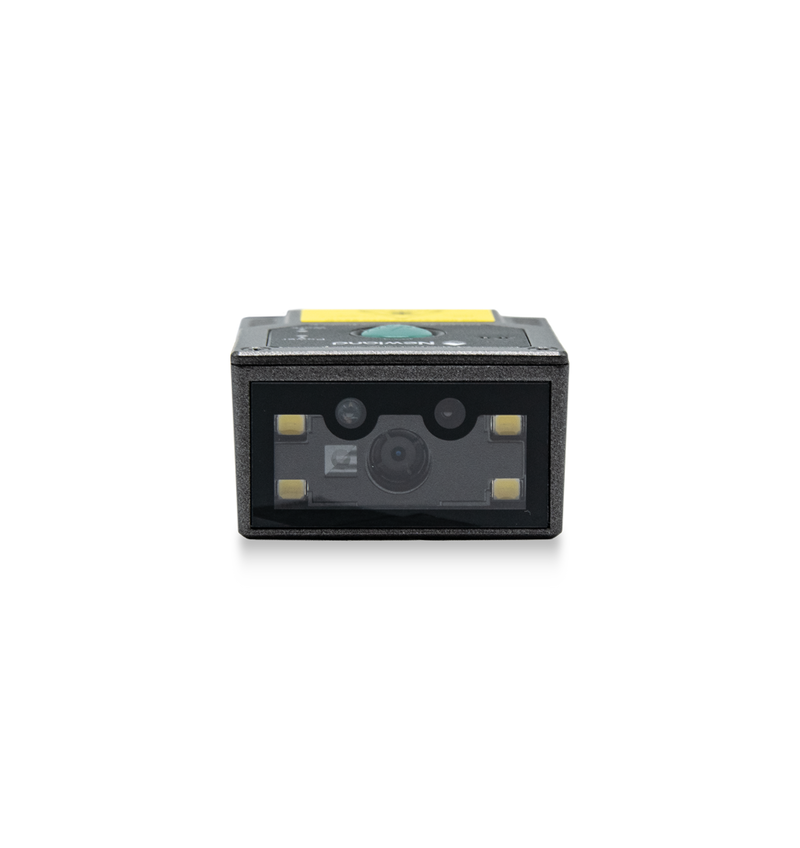

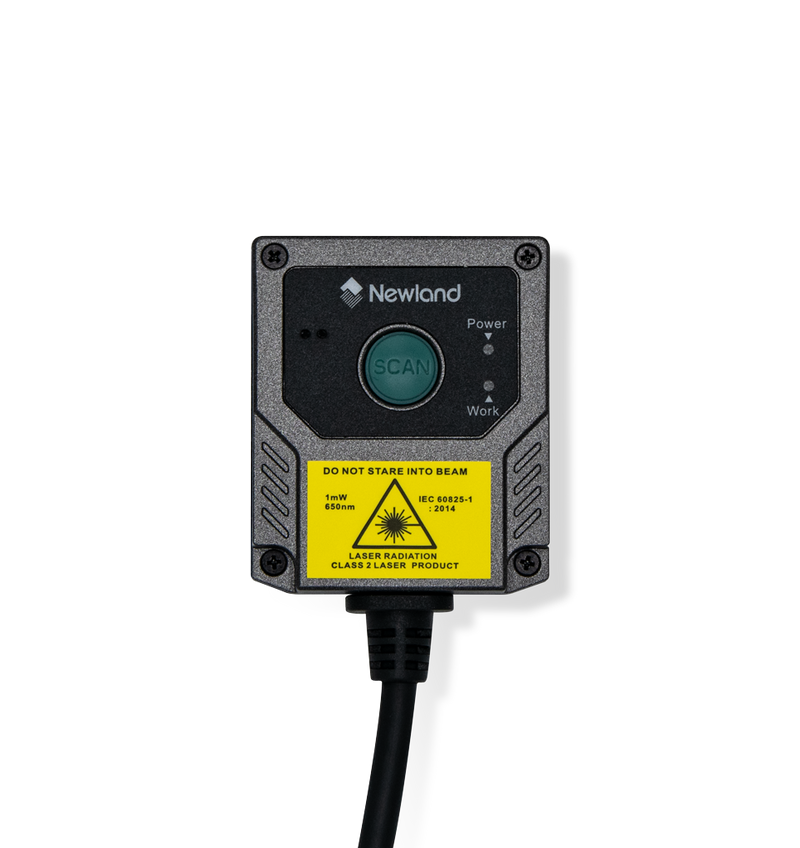

The Newland FM430 Barracuda is a compact stationary 2D barcode scanner built for integration into self-service kiosks, access control turnstiles, vending machines, and production line conveyor systems. Equipped with a megapixel CMOS sensor and a bright red laser crosshair aimer, it captures standard printed 1D and 2D barcodes alongside digital codes displayed on high-glare smartphone screens.

Featuring an IP54-rated weather-resistant housing and infrared auto-sense technology, the FM430 Barracuda detects items presented in front of its optical window even under changing ambient lighting conditions. This red laser aiming range offers multiple cable configurations, including short 50 cm direct cables for tight OEM kiosk housings and 2-metre extension leads for USB or RS232 connections.

Main Benefits

  • Megapixel 2D Imager: Reads fine, high-density, damaged, or screen-based 1D and 2D barcodes quickly.

  • Red Laser Crosshair Aimer: Projects a sharp red laser pattern to help users position barcodes accurately in front of the lens.

  • Infrared Auto-Sense: Internal IR sensors trigger scanning instantly when an item approaches the scanner window.

  • Weather-Resistant Enclosure: IP54 sealed against dust and water splashes for dependable use in outdoor terminals or damp environments.

  • Flexible Mounting Options: Small footprint and flush screw holes allow straightforward installation inside narrow self-service housings.

  • 5-Year Manufacturer Warranty: Supported by a 5-year warranty for lasting operational peace of mind.

Part Number Breakdown

  • NLS-FM430L-U: Fixed mount scanner with red laser crosshair aiming, supplied with a 2-metre USB extension cable.

  • NLS-FM430L-00: Fixed mount scanner with red laser crosshair aiming, supplied with a short 50 cm direct USB cable for compact enclosure integration.

  • NLS-FM430L-RC: Fixed mount scanner with red laser crosshair aiming, supplied with a 2-metre RS232 serial extension cable.
