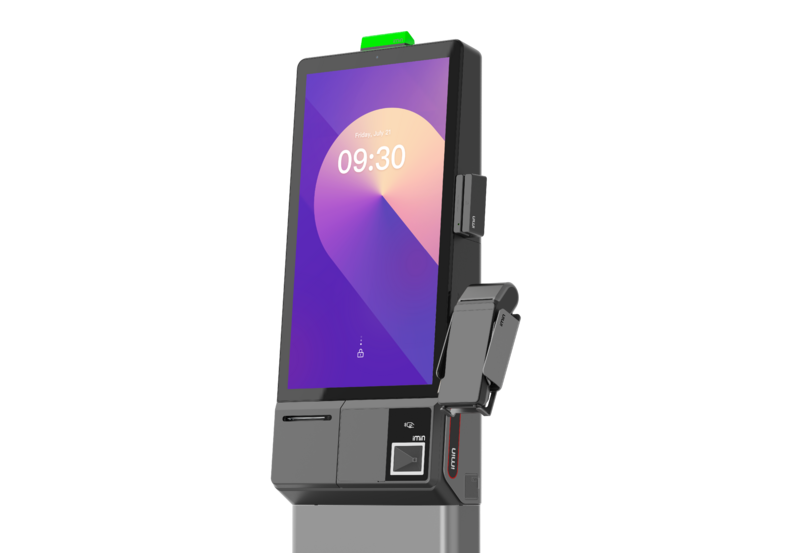

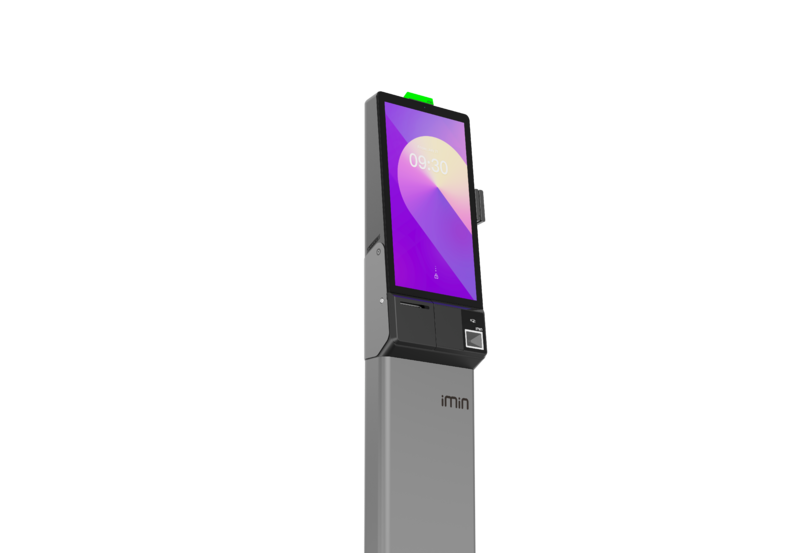

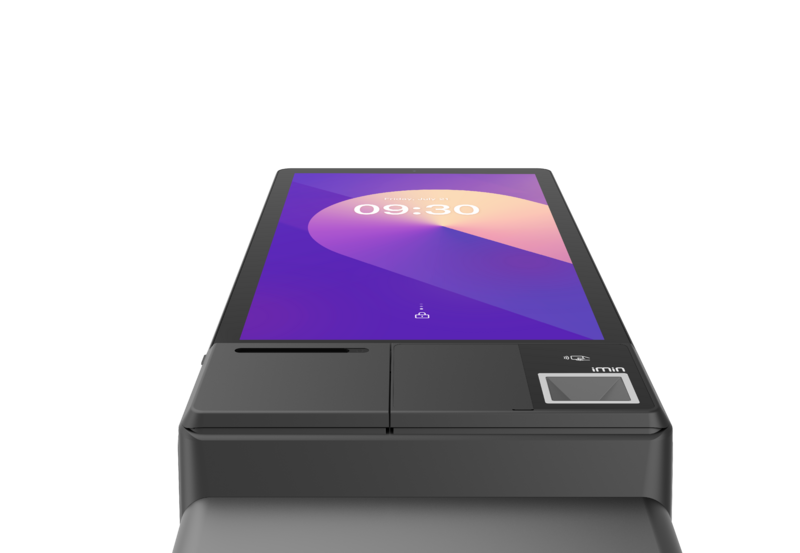

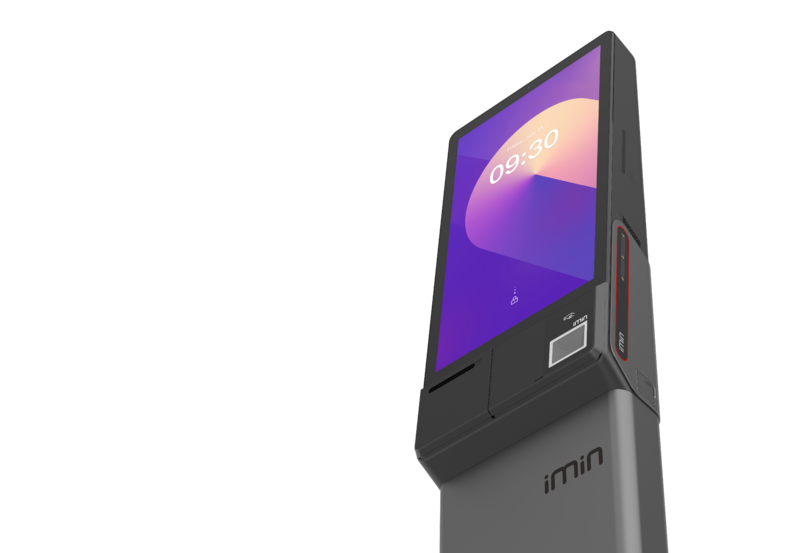

iMin Heron 1 | 23.8" Self-Service Kiosk | Android 15 & GMS Certified

iMin Heron 1 | 23.8" Self-Service Kiosk | Android 15 & GMS Certified

SKU IM-SH112A001
by Imin
Sold out
€1,578.95 - €1,813.95
€1,578.95
€1,578.95 - €1,813.95
€1,578.95

The iMin Heron 1 is a high-performance, all-in-one self-service terminal designed to transform the customer experience in UK retail, hospitality, and healthcare. Combining an expansive 23.8-inch Full HD display with the cutting-edge Android 15 (64-bit) operating system, the Heron 1 offers the fluid interaction and security required for modern high-traffic environments.

At its core, the Heron 1 is powered by an AI-enhanced 8-core 2.0GHz processor with a dedicated 3 TOPS Neural Processing Unit (NPU). This architecture ensures instantaneous response times for AI-driven tasks such as facial recognition, OCR for age verification, and smart upsell recommendations.

Precision Engineering for Modern Retail

  • Immersive 23.8” FHD Interface: A vibrant 1920 x 1080 capacitive touchscreen featuring G+G (Glass-on-Glass) construction. It is designed for longevity, supporting 10-point multi-touch even with wet hands or gloves.

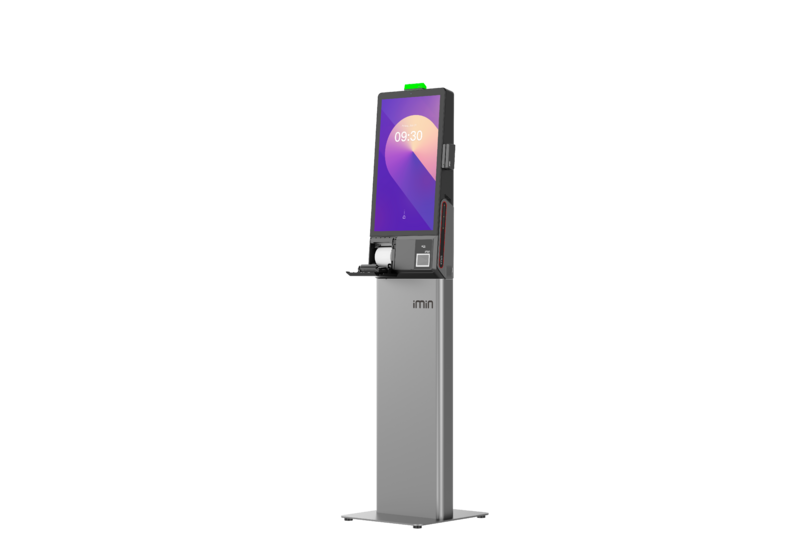

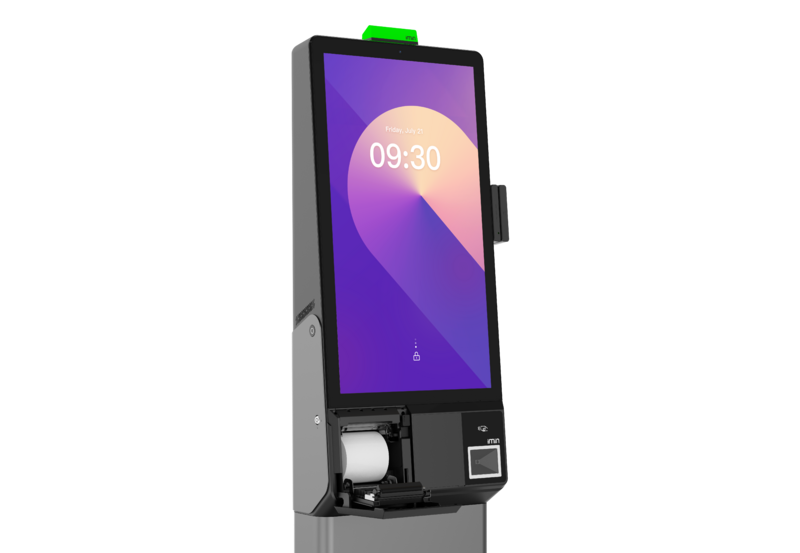

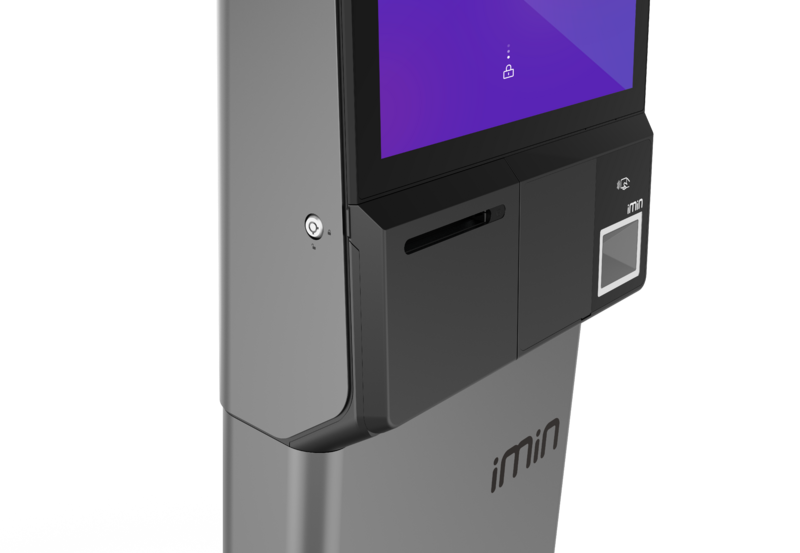

  • Industrial 80mm Thermal Printer: Features a premium Japanese auto-cutter and ultra-fast print speeds of 250mm/s. The modular front-loading design allows for paper roll changes in seconds, ensuring zero downtime during peak hours.

  • Future-Proof Connectivity: Integrated Wi-Fi 6 (802.11ax), Bluetooth 5.4, and Gigabit Ethernet provide ultra-stable cloud communication and support for a wide range of wireless peripherals.

  • Enhanced Security: GMS (Google Mobile Services) Certification ensures your device receives the latest security patches and provides native support for the Google Play Store and enterprise management tools.

Technical Specifications

Feature Detailed Specification
Processor Octa-Core (Dual-core A76 2.0GHz + Hexa-core A55 1.8GHz)
AI Performance NPU up to 3 TOPS
Operating System Android 15 (64-bit)
Display 23.8" 1920 x 1080 Full HD (250 nits)
Touch Panel Multi-point Capacitive (G+G, Anti-fingerprint)
Memory Options 4GB+64GB / 8GB+128GB / 16GB+256GB
Integrated Printer 80mm Thermal with Auto-Cutter (250mm/s)
Integrated Scanner 0.3MP CMOS (30 FPS) - Standard Edition
Wireless Wi-Fi 6 (2.4/5GHz), Bluetooth 5.4, NFC
Wired LAN 1000Mbps Gigabit Ethernet
Camera 2MP Front-facing Camera
Audio Dual 3W High-Output Speakers

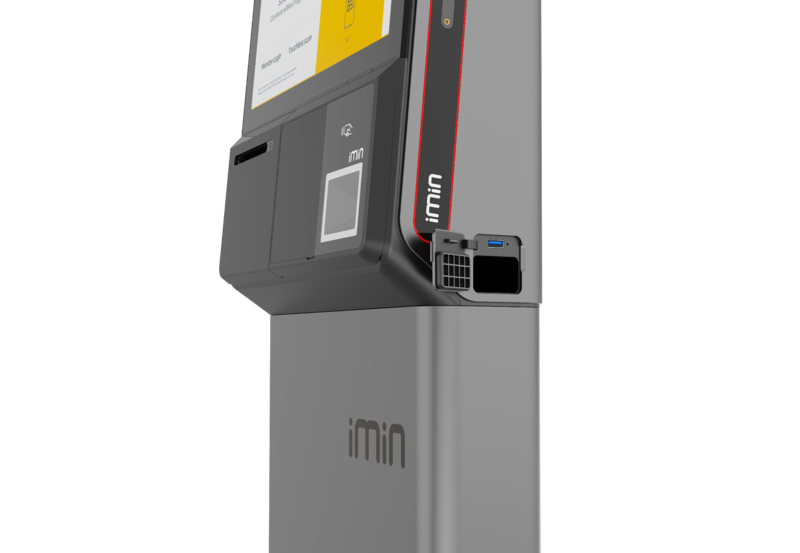

I/O Ports 4x USB 3.0, 1x USB-C, HDMI, RJ11, RJ12, RJ45, 2x DB9, TF Card



What’s in the Box?

  • iMin Heron 1 Main Unit: 23.8" Full HD terminal with integrated printer and scanner.

  • UK 3-Pin Power Supply: Input 100-240V / Output 24V DC.

  • Thermal Paper Starter Roll: 80mm high-sensitivity thermal paper.

  • 9-Pin Serial Data Cable: For legacy peripheral integration.

  • Quick Start Guide: Technical setup and hardware overview.

  • Mounting Kit: Hardware for standard installation (Countertop/VESA).

Frequently Asked Questions (FAQ)

Q: Can I mount the Heron 1 on a floor stand? A: Absolutely. The Heron 1 is VESA-compatible and fits our official heavy-duty Floor Stand (IM-SH133A001) or the POS Holder (IM-SH131A001) for countertop security.

Q: Does it support contactless payments? A: Yes. The built-in NFC module supports SoftPOS applications. Alternatively, dedicated payment terminal brackets can be attached to support hardware from providers like Dojo, PAX, or Adyen.

Q: What is the difference between the Standard and Retail scanners? A: The Standard scanner (included in this listing) is a 30 FPS sensor ideal for QR codes and loyalty apps. For high-volume supermarkets, we recommend the Heron 1 Retail Edition, which features a 60 FPS scanner for instant barcode throughput.

Optional Mounting Accessories

To complete your self-service installation, the following official iMin hardware is compatible with all Heron 1 models:

  • IM-SH131A001: iMin Heron 1 POS Holder (Secure Countertop Mount)

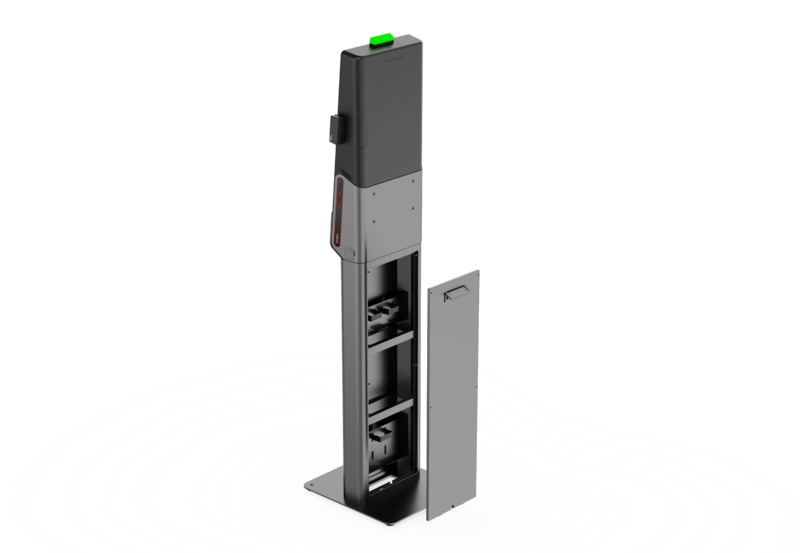

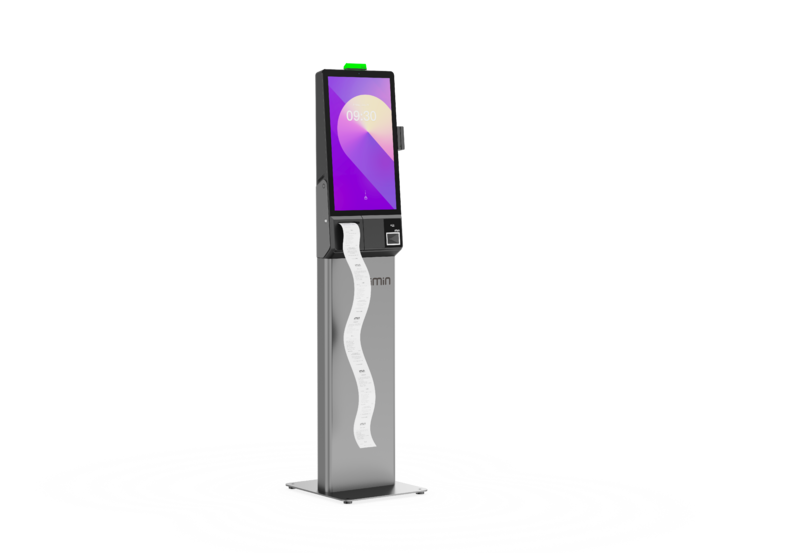

  • IM-SH133A001: iMin Heron 1 Floor Stand (Heavy-Duty Freestanding Kiosk Base)

Note: For the Retail Edition (60 FPS Scanning) or Dual-Camera security configurations, please see the Heron 1 Retail Edition listing.
