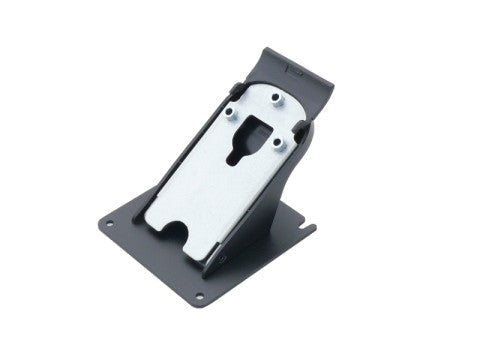

The EloPOS Rear-Facing Display Mount (E835969) provides a stable, commercial-grade attachment bracket designed to mount a customer-facing display directly onto the back of an EloPOS System terminal. Designed for busy retail counters and hospitality point-of-sale setups, this bracket holds the secondary screen securely in place to show order totals, promotional material, and payment prompts directly to shoppers.
Technical Performance & Key Features
-
Direct Point-of-Sale Integration: Attaches cleanly to the rear housing of standard EloPOS terminals. This design maintains a unified hardware setup, keeping the main checkout counter clean without needing separate standalone monitor bases.
-
Clean Internal Cable Routing: Features dedicated cable channels and clamping points to guide data and power connections through the assembly. This conceals wiring inside the mount structure, protecting cables from accidental disconnections or tampering during daily store operations.
-
High-Strength Metal Construction: Built with commercial-grade materials to withstand constant daily adjustments in high-traffic commercial environments. The mounting bracket holds secondary screens firmly at an ideal viewing height for customer interaction.
Important Connection Requirement
Required Cable: Connecting the rear display to the main terminal requires an authorised Elo 2ft USB-C Cable (Part Number: E969524), which is sold separately. Standard commercial USB-C cables do not fit the specific power delivery and data channel requirements of this mount.
What's Included in the Box
-
1 x Assembled Rear-Facing Display Mount Module (E835969)
-
4 x M4 x 7 mm Cross-Recess Pan Head Screws (Black)
-
3 x M4 x 10 mm Cross-Recess Pan Head Screws (Stainless Steel)
-
1 x M3 x 8 mm Cross-Recess Pan Head Screw (Black)
-
1 x Cable Clamp Bracket
-
1 x Quick Installation Guide
| Specification |
Details |
| Brand |
Elo Touch Solutions |
| Product Range |
EloPOS System Accessories |
| Model Name |
EloPOS Rear-Facing Display Mount Kit |
| Manufacturer Part Number (MPN) |
E835969 |
| Global EAN or UPC Barcode |
0843173111889 |
| Product Type |
Customer Facing Secondary Display Bracket |
| Enclosure Colour |
Black |
| Terminal Hardware Compatibility |
EloPOS System 15-inch Touchscreen Terminals |
| Display Compatibility |
Elo 0702L, 1002L, and 1302L Touchscreen Displays |
| Required Connecting Cable |
Elo Authorized 2ft USB-C Cable (MPN: E969524 - Sold Separately) |
| Mounting Standard |
Direct Terminal Chassis Mount |
| Cable Routing Architecture |
Concealed Internal Channel with Retaining Clamp |
| Module Net Weight |
0.41 kg (0.90 lbs) |
| Packaged Shipping Weight |
1.36 kg (3.00 lbs) |
| Operating Temperature Range |
0°C to 35°C (32°F to 95°F) |
| Storage Temperature Range |
-20°C to 60°C (-4°F to 140°F) |
| Operating Humidity Range |
20% to 80% Relative Humidity (Non-Condensing) |
| Regulatory Certifications |
UKCA, CE, RoHS, China RoHS |
| Box Contents |
Rear Mount Module, Screw Fixings Kit (M4x7, M4x10, M3x8), Cable Clamp, Quick Install Guide |
| Standard Manufacturer Warranty |
2-Year Factory Limited Warranty |
