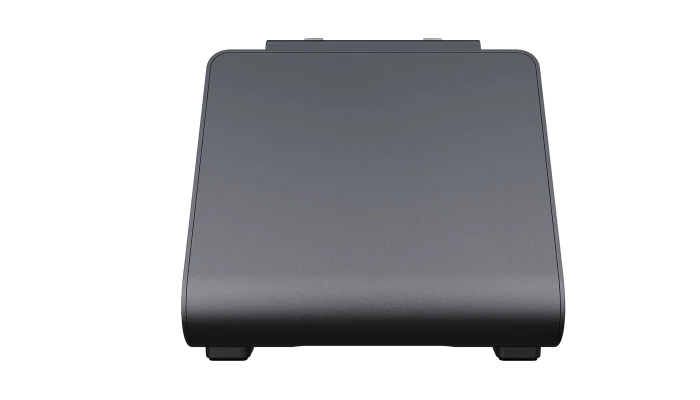

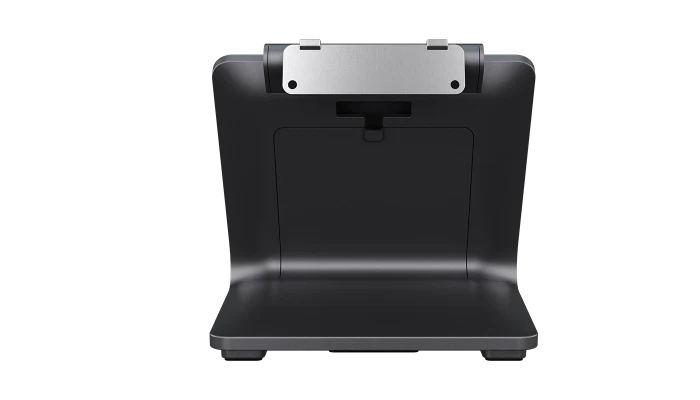

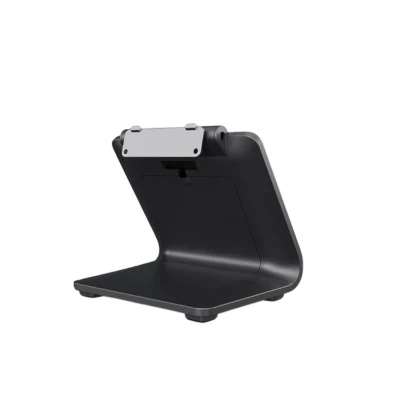

The Elo Z10 POS Stand Gen 2 (E767159) provides a solid, commercial-grade mounting platform crafted to transform interactive displays into point-of-sale checkout systems. Designed specifically for space-conscious retail counters, hospitality service desks, and self-service stations, this Gen 2 stand combines a compact footprint with heavy-duty stability.
Technical Performance & Key Features
Clean Cable Routing & Space Saving
Features an internal cable management channel that hides power and data leads completely from view. This eliminates loose cables, clutter, and accidental disconnections on busy sales counters while maintaining a clean, professional aesthetic.
Dual-Display Setup Support
Built with integrated secondary mounting capability on the rear housing. Merchants can mount a rear-facing customer display (such as the Elo 0702L monitor) to show basket totals, promotional messages, and digital loyalty prompts to shoppers in real time.
Multi-Device Hardware Compatibility
Equipped with an enterprise VESA mounting pattern designed for attachment to current and previous generation Elo displays, including the 15-inch I-Series 3 (Intel) and I-Series 5 Slate (Android) terminals. Adjustable hinge torque allows precise tilt customization using the included hex tool to suit varying checkout counter heights.
What's Included in the Box
-
1 x Elo Z10 POS Stand Gen 2 Base & Tower Unit (E767159)
-
1 x VESA Adapter Mounting Plate
-
2 x M4 x 5 mm Head Attachment Screws
-
4 x M4 x 10 mm Plate Adapter Screws
-
4 x M4 x 18 mm Customer Facing Display Mounting Screws
-
1 x Hex 4x108 Allen Wrench (for adjusting hinge tension)
-
1 x Rear Protective Cover for CFD Mount
-
1 x Quick Installation Guide
| Specification |
Details |
| Brand |
Elo Touch Solutions |
| Product Range |
POS Stand and Counter Mount Series |
| Model Name |
Elo Z10 POS Stand Gen 2 |
| Manufacturer Part Number (MPN) |
E767159 |
| Global EAN or UPC Barcode |
0843173152509 |
| Form Factor |
Compact Commercial POS Terminal Stand |
| Enclosure Colour |
Dark Grey Metallic |
| Main Display Compatibility |
Elo 15-inch I-Series 5 Slate (Android), Elo 15-inch I-Series 3 Slate (Intel) |
| Customer Facing Display (CFD) Compatibility |
Elo 0702L 7-inch Touchscreen Monitor (Elo P/N: E796382) |
| Mounting Interface Standard |
VESA 75 mm x 75 mm Pattern |
| Cable Management Architecture |
Concealed Internal Channel Routing |
| Hinge Mechanism |
Adjustable Torque Tilt Hinge (Hex Key Adjusted) |
| Stand Physical Dimensions (W x D x H) |
160.0 mm x 129.0 mm x 157.0 mm (6.3 in x 5.1 in x 6.2 in) |
| Packaging Dimensions (W x D x H) |
256.0 mm x 223.0 mm x 220.0 mm (10.1 in x 8.8 in x 8.7 in) |
| Net Stand Weight |
1.14 kg (2.52 lbs) |
| Packaged Shipping Weight |
2.10 kg (4.63 lbs) |
| Operating Temperature Range |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature Range |
-20°C to 50°C (-4°F to 122°F) |
| Operating Humidity Range |
20% to 80% Relative Humidity (Non-Condensing) |
| MTBF Reliability Demonstration |
50,000 Continuous Hours |
| Box Accessories |
Z10 Gen 2 Base Unit, VESA Adapter, Screw Kit (M4x5, M4x10, M4x18), Hex Allen Wrench, CFD Cover, Installation Guide |
| Standard Manufacturer Warranty |
2-Year Factory Limited Warranty (Optional 3, 4, or 5-Year Extended Coverage Available) |
