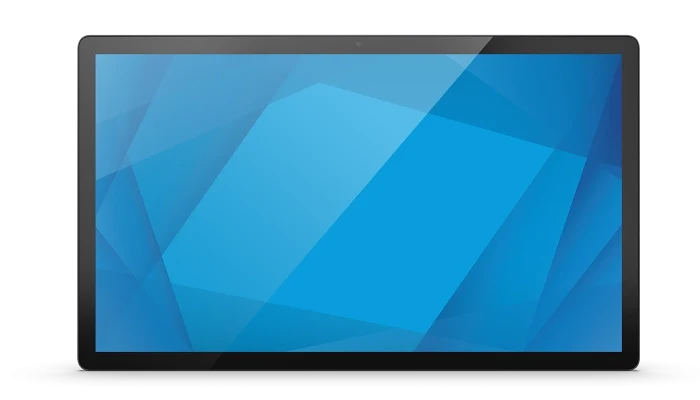

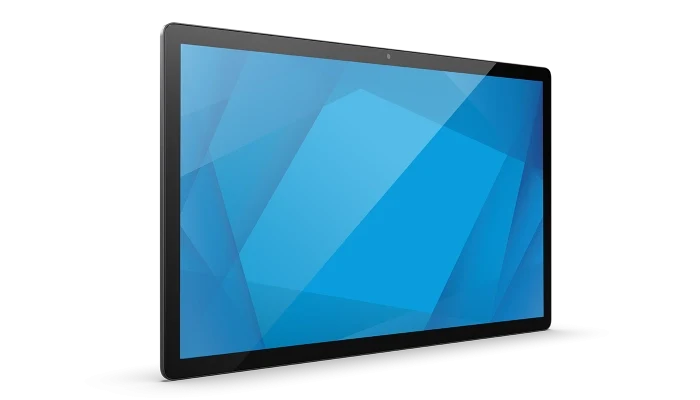

The Elo I-Series 4 Slate VALUE (E392786) delivers a thin, commercial-grade 15.6-inch interactive terminal built for high-traffic retail counters, hospitality check-in desks, and corporate environments. Running on Android 10 with official Google Mobile Services (GMS) certification, this fixed-tablet touchscreen computer provides dependable performance for point-of-sale applications, self-service kiosks, and interactive digital signage.
Technical Performance & Key Features
Reliable Processing Engine
Driven by the Rockchip RK3399 processor paired with 4GB system memory and 32GB flash storage. This hardware combination handles daily checkout tasks, web-based business applications, and media playback efficiently while maintaining low power consumption.
Clear Display Glass & Multi-Touch Support
Features a Full HD (1920 x 1080) resolution display with TouchPro® Projected Capacitive (PCAP) 10-point touch technology. The glass surface is sealed to the display panel to protect against everyday store dust and liquid spills on busy commercial counters.
Enterprise Control with EloView
Works alongside the EloView® cloud platform to allow remote setup, application distribution, system lockdown, and network monitoring across multiple business sites. An integrated 5-megapixel front camera, stereo speakers, and built-in microphone support identity verification and user interaction.
What's Included in the Box
-
1 x Elo I-Series 4 Slate 15.6" VALUE Touchscreen Terminal (E392786)
-
1 x External Connectivity I/O Hub
-
1 x 65W External Power Supply Brick (E153026)
-
1 x European Mains Power Cable
-
1 x UK / North American Power Cable
-
4 x M4 x 6 mm Flathead Screws
-
4 x M4 x 6 mm Panhead Screws
-
1 x Quick Installation Guide
| Specification |
Details |
| Brand |
Elo Touch Solutions |
| Product Range |
I-Series 4 Slate Commercial Interactive Display Series |
| Model Name |
15.6-inch I-Series 4 Slate VALUE |
| Manufacturer Part Number (MPN) |
E392786 |
| Global EAN or UPC Barcode |
0843173149950 |
| Form Factor |
Thin Fixed Commercial Tablet / All-in-One Interactive Terminal |
| Enclosure Colour |
Dark Grey Metallic |
| Display Diagonal Size |
15.6 in (396.24 mm) |
| Native Resolution |
1920 x 1080 Full HD @ 60 Hz |
| Aspect Ratio |
16:9 Widescreen |
| Active Display Area |
344 mm x 194 mm (13.55 in x 7.62 in) |
| Display Luminance |
LCD Panel: 350 nits | With PCAP Touch Panel: 280 nits |
| Contrast Ratio and Colour Depth |
1000:1 Contrast Ratio | 8-bit (16.7 Million Colours) |
| Viewing Angles |
Horizontal: ±85° (170° total) | Vertical: ±85° (170° total) |
| Response Time |
20 ms (Typical) |
| Touch Technology |
TouchPro® Projected Capacitive (PCAP) - Sealed to LCD |
| Multi-Touch Capacity |
10 Independent Touch Points |
| Processor (CPU) |
Rockchip RK3399 Processor |
| System RAM |
4GB System Memory |
| Internal Storage |
32GB Flash Storage |
| Operating System |
Android 10 with Google Play Services (GMS) |
| Remote Management Platform |
EloView® Compatible | OEMConfig Support |
| Wireless Network Capabilities |
Wi-Fi (802.11a/b/g/n/ac) + Bluetooth 5.0 |
| Wired Network Interface |
Gigabit Ethernet RJ45 (10/100/1000 Mbps via I/O Hub) |
| Included External I/O Hub Interfaces |
1 x DC Input, 4 x USB-A 3.0 (900mA), 1 x RJ45 LAN |
| Display Head Interfaces |
1 x USB-C Port (Supports USB 2.0/3.0, DisplayPort Output, 20V/20W PD 2.0 Input) |
| Integrated Camera System |
5 Megapixel Front Camera with Auto Focus (1920 x 1080 @ 30fps Max) |
| Integrated Audio System |
2 x 1W Internal Stereo Speakers | 1 x Built-in Analog Microphone |
| Real-Time Clock (RTC) |
Internal Lithium Coin Cell Battery Backup |

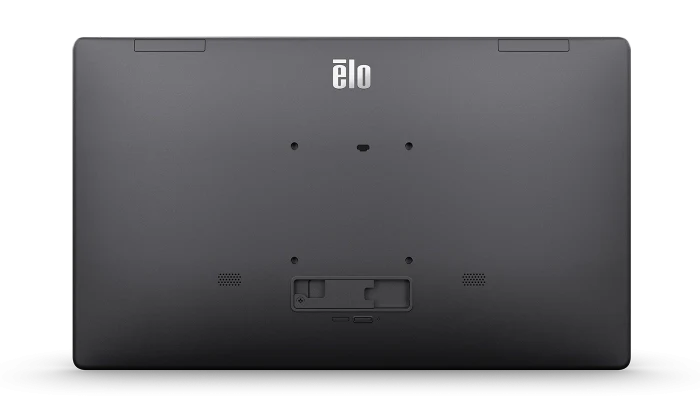

| Mounting Standards |
VESA 75 mm x 75 mm Pattern |
| Power Supply Specifications |
External 65W Power Adaptor (AC 100-240V, 50-60 Hz Input) |
| Power Consumption |
Active ON: 11.5W | Sleep Mode: 4.4W | OFF Mode: 0.68W |
| Terminal Dimensions (W x D x H) |
370.8 mm x 221.8 mm x 13.95 mm (14.6 in x 8.74 in x 0.55 in) |
| Packaging Box Dimensions (W x D x H) |
443.0 mm x 310.0 mm x 156.0 mm (17.4 in x 12.2 in x 6.1 in) |
| Unit and Packed Weight |
Net Weight: 1.50 kg (3.30 lbs) | Packaged Weight: 3.45 kg (7.61 lbs) |
| Operating Temperature and Humidity Range |
Temperature: 0°C to 40°C (32°F to 104°F) | Relative Humidity: 20% to 80% (Non-Condensing) |
| MTBF Reliability Rating |
50,000 Hours Continuous Operating Hours |
| Regulatory Certifications |
UL/cUL, FCC, IC, CE, CB, VCCI, MIC, RCM |
| Box Contents |
I-Series 4 Slate Unit, I/O Hub, 65W Power Brick, NA Power Cord, EU Power Cord, Screws Set, Quick Install Guide |
| Standard Manufacturer Warranty |
2-Year Factory Limited Warranty (Extended EloCare Coverage Available) |
