Elo I-Series 3 Intel Commercial Interactive Display Series

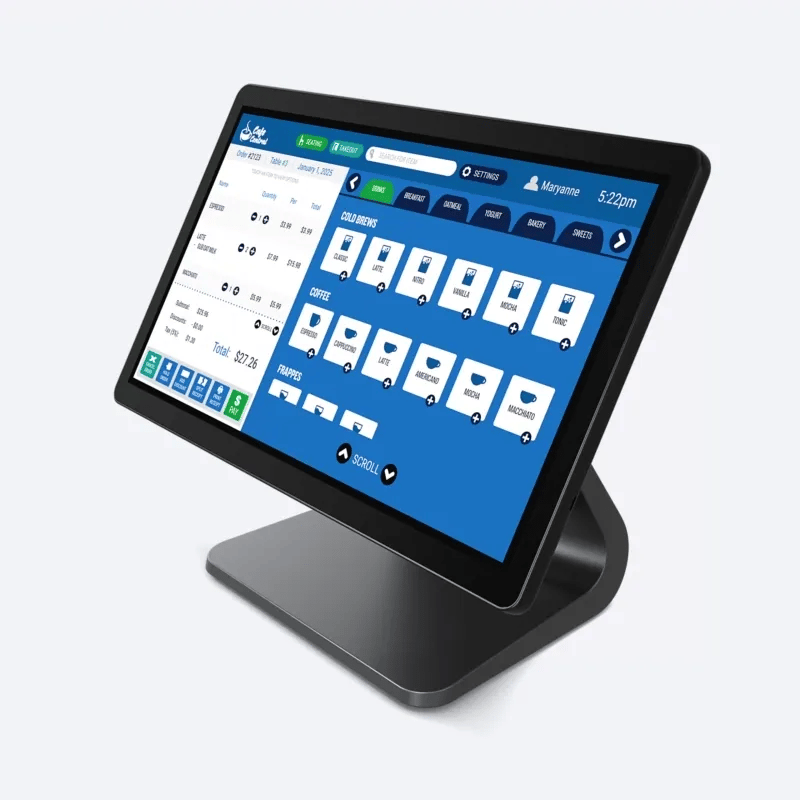

The Elo E-Series 3 Series delivers a 15.6-inch commercial touchscreen computing platform constructed for point-of-sale checkout counters, interactive self-service kiosks, hospitality check-in desks, and corporate service stations. Powered by Intel N-series N97 quad-core processing, these all-in-one interactive terminals combine industrial-grade hardware with responsive performance across multiple operating system options, memory tiers, and mounting setups.

Model Configuration & Hardware Variants

Windows 11 IoT Enterprise Configurations

• Elo E849902: Windows 11 IoT Enterprise, Countertop Desktop Stand Included, 8GB DDR5 System RAM, 128GB NVMe SSD Storage, Wi-Fi and Bluetooth Integrated.

• Elo E153259: Windows 11 IoT Enterprise, No Stand Included (75mm VESA Mountable), 16GB DDR5 System RAM, 256GB NVMe SSD Storage, Wi-Fi and Bluetooth Integrated.

• Elo E567592: Windows 11 IoT Enterprise, No Stand Included (75mm VESA Mountable), 8GB DDR5 System RAM, 128GB NVMe SSD Storage, Wi-Fi and Bluetooth Integrated.

• Elo E849711: Windows 11 IoT Enterprise, Countertop Desktop Stand Included, 8GB DDR5 System RAM, 128GB NVMe SSD Storage, Gigabit Ethernet Connection (No Wi-Fi Module).

No OS (Linux Ready) Configurations

• Elo E850098: No Operating System Pre-Installed (SuSE, Ubuntu, and Red Hat Tested), Countertop Desktop Stand Included, 8GB DDR5 System RAM, 128GB NVMe SSD Storage, Wi-Fi and Bluetooth Integrated.

• Elo E567394: No Operating System Pre-Installed (SuSE, Ubuntu, and Red Hat Tested), No Stand Included (75mm VESA Mountable), 8GB DDR5 System RAM, 128GB NVMe SSD Storage, Wi-Fi and Bluetooth Integrated.

Technical Performance & Key Features

Intel N-Series N97 Quad-Core Processing

Powered by the Intel N-series N97 quad-core processor (with speeds up to 3.60 GHz) and high-speed DDR5 memory. This processing base handles inventory systems, retail transaction software, customer loyalty applications, and self-checkout portals smoothly.

Operating System Flexibility

Choose between Windows 11 IoT Enterprise for standard commercial software setups or No OS (Linux Ready) configurations for deploying custom enterprise images, open-source Linux distributions, or ChromeOS Flex.

Multi-Touch Screen Glass & Peripheral Connections

Features a 15.6-inch Full HD (1920 x 1080) widescreen panel with TouchPro® Projected Capacitive (PCAP) 10-point multi-touch technology sealed to resist store dust and liquid splatters. Includes built-in connection ports for cash drawers, barcode scanners, receipt printers, and USB-C customer-facing displays.

What's Included in the Box

• 1 x Elo E-Series 3 15.6" Touchscreen Terminal Unit (Selected MPN Variant)

• 1 x Desktop Counterstand (Included with E849902, E850098, and E849711 models)

• 1 x External 90W Universal Power Supply Adaptor Brick

• 1 x UK Mains Power Cable

• 1 x European Mains Power Cable

• 1 x Serial Port Adapter Cable (RJ-45 to DB-9)

• 1 x Cable Ties Set

• 1 x Quick Installation Guide
