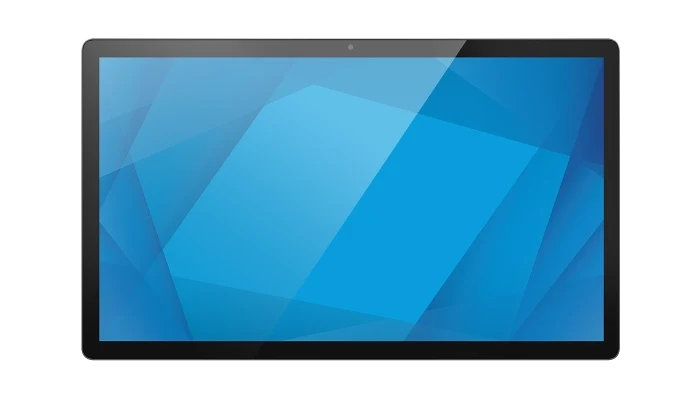

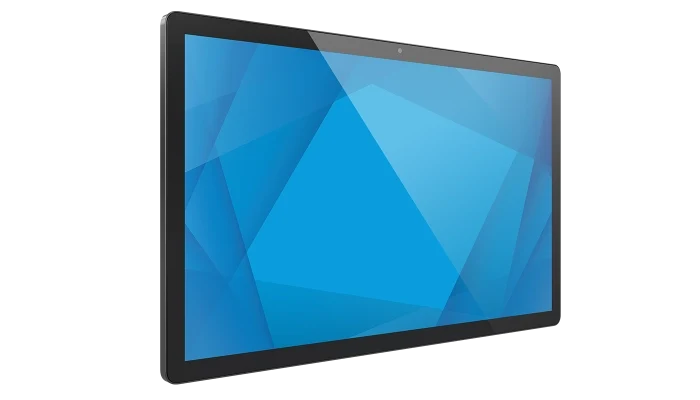

The Elo I-Series 5 Slate E540697 delivers a ultra-thin 15.6-inch commercial touchscreen system designed specifically for high-traffic retail, hospitality, and corporate environments. Combining an industrial-grade build with modern processing capabilities, this enterprise fixed-tablet system runs on Android 14 with full Google Mobile Services (GMS) certification.
Overview and Key Capabilities
Industrial Performance Architecture
Powered by the Qualcomm QCS6490 octa-core processor and paired with 8GB RAM, the terminal handles resource-heavy point-of-sale (POS) software, self-service applications, and digital signage without lag. Integrated Qualcomm Hexagon 770 neural processing (up to 12 TOPS) accelerates local AI tasks directly on the device.
Optical Bonding and Touch Clarity
Featuring a Full HD (1920 x 1080) resolution display with TouchPro® Projected Capacitive (PCAP) 10-point multi-touch technology. Optical bonding directly attaches the touch glass to the LCD panel, reducing reflections, improving light transmittance, and sharpening visual clarity in brightly lit retail conditions.
Deployment Flexibility and EloView
Built to fit custom enclosures, counter stands, or VESA mounting systems. The system integrates with EloView® cloud software to simplify remote configuration, application deployment, peripheral management, and kiosk lockdown across entire store networks.
Key Business Benefits
-

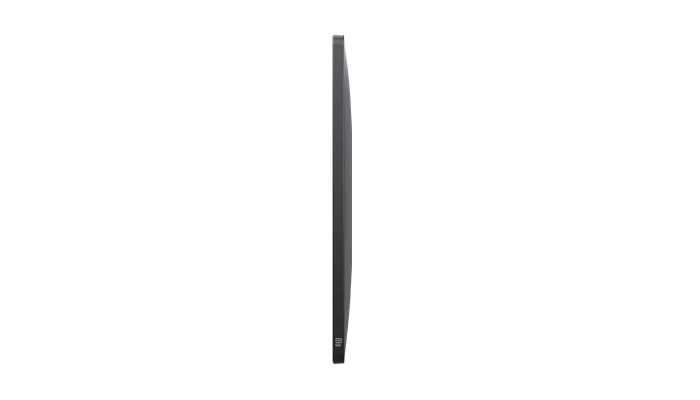

Thin Commercial Form Factor: Designed to maintain a low-profile aesthetic while meeting continuous 24/7 operating standards.
-
Complete Android 14 Ecosystem: Full GMS compliance grants access to standard application frameworks, backed by enterprise management features like OEMConfig.
-
Integrated Connectivity Hub: Ships with an external I/O hub providing dedicated ports for receipt printers, barcode scanners, payment terminals, and network cables.
-
Built-in Multimedia & AI Processing: Features an integrated 8MP autofocus camera, stereo speakers, and digital dual microphones for user verification, video calls, or interactive kiosk applications.
What's Included in the Box
-
1 x Elo I-Series 5 Slate 15.6" Touchscreen Terminal (E540697)
-
1 x External Connectivity I/O Hub
-
1 x 65W External Power Adaptor Brick (E153026)
-
1 x UK Mains Power Cable
-
1 x European Mains Power Cable
-
4 x M4 x 6 mm Panhead Mounting Screws
-
1 x Quick Installation Guide
Z10 POS Stand (75mm VESA) - Elo P/N: E767159
I/O Hub with 4x USB 3.0 ports, 1x RJ45 Ethernet LAN (Gigabit), 65W power brick, power cables - Elo P/N: E955492
| Specification |
Details |
| Brand |
Elo Touch Solutions |
| Product Range |
I-Series 5 Slate Commercial Interactive Display Series |
| Model Name |
15.6-inch I-Series 5 Slate STANDARD |
| Manufacturer Part Number (MPN) |
E540697 |
| Form Factor |
Fixed Commercial Tablet / All-in-One Interactive Terminal |
| Display Diagonal |
15.6-inch (396.24 mm) |
| Native Resolution |
1920 x 1080 Full HD @ 60Hz |
| Aspect Ratio |
16:9 Widescreen |
| Active Display Area |
344 mm x 194 mm (13.55" x 7.62") |
| Display Luminance |
LCD Panel: 350 nits | With PCAP Touch: 280 nits |
| Contrast Ratio & Colour Depth |
1000:1 Contrast Ratio | 8-bit (16.7 Million Colours) |
| Viewing Angles |
Horizontal: ±85° (170° total) | Vertical: ±85° (170° total) |
| Touch Technology |
TouchPro® Projected Capacitive (PCAP) with Optical Bonding |
| Multi-Touch Points |
10 Independent Touch Points |
| Processor (CPU) |
Qualcomm QCS6490 Octa-Core Processor (Up to 2.7 GHz) |
| Neural Processing Unit (NPU) |
Qualcomm Hexagon 770 NPU (Up to 12 TOPS AI Acceleration) |
| Graphics Processing Unit (GPU) |
Qualcomm Adreno 643 GPU |
| System RAM |
8GB LPDDR5 Memory |
| Internal Storage |
64GB eMMC Flash Memory |
| Operating System |
Android 14 with Google Mobile Services (GMS) |
| Remote Management Platform |
EloView® Compatible | OEMConfig Support | OS 360 Lifecycle Updates |
| Wireless Network Capabilities |
Wi-Fi 6 (802.11a/b/g/n/ac/ax) + Bluetooth 5.2 |
| Wired LAN Connection |
Gigabit Ethernet RJ45 (10/100/1000 Mbps via I/O Hub) |
| Included External I/O Hub Ports |
4 x USB-A 3.0 (900mA), 1 x RJ45 LAN, DC Input Jack |
| Display Head Interfaces |
1 x USB-C (Supports USB 2.0/3.0, DisplayPort Output, 20V/20W PD 2.0) |
| Camera System |
8 Megapixel Front Camera with Auto Focus (Max 3264 x 2448 @ 30fps) |
| Integrated Audio |
2 x 1W Internal Stereo Speakers | 2 x Built-in Digital Microphones |
| Real-Time Clock (RTC) |
Internal Lithium Coin Cell Battery Backup |
| Enclosure Colour |
Dark Grey Metallic |
| Mounting Options |
VESA 75 mm x 75 mm Pattern | Z-Hinge Mount Compatible |
| Power Supply Specifications |
External 65W Power Adaptor (AC 100-240V, 50-60 Hz Input) |
| Power Consumption |
Active ON: 8.5W | Sleep Mode: 3.0W | OFF Mode: 0.4W |
| Physical Dimensions (W x D x H) |
370.3 mm x 221.3 mm x 15.1 mm (14.6" x 8.7" x 0.6") |
| Unit & Shipping Weight |
Net Weight: 1.56 kg (3.44 lbs) | Gross Weight: 3.51 kg (7.74 lbs) |
| Operating Temperature & Humidity |
Temperature: 0°C to 40°C | Relative Humidity: 20% to 80% Non-Condensing |
| Reliability Rating & Mean Time Between Failures |
MTBF Rating: 50,000 Hours Continuous Use |
| Regulatory Certifications |
UKCA, CE, UL/cUL, FCC, IC, CB, VCCI, MIC, RCM, BSMI, NCC, KCC, CCC, SRRC |
| Included Box Contents |
I-Series 5 Slate Unit, External I/O Hub, 65W Power Brick, UK/EU Power Cables, M4x6mm Screws, Quick Install Guide |
| Standard Factory Warranty |
2-Year Manufacturer Limited Warranty (EloCare Extended Options Available) |
