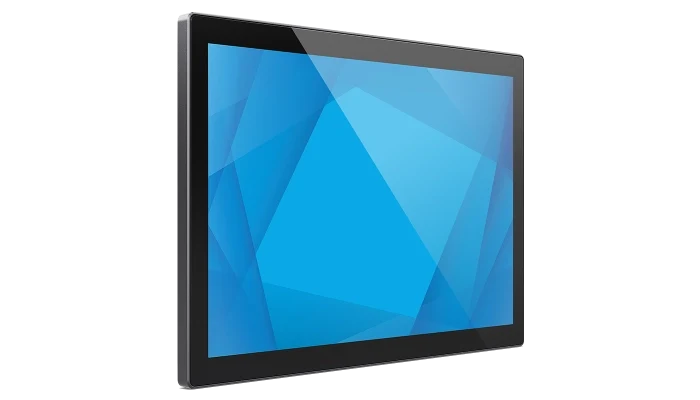

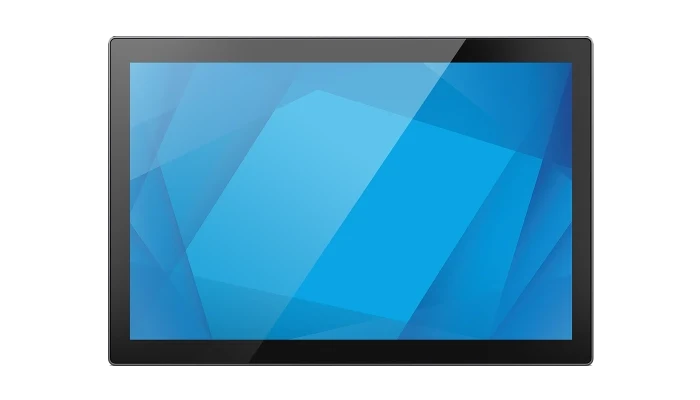

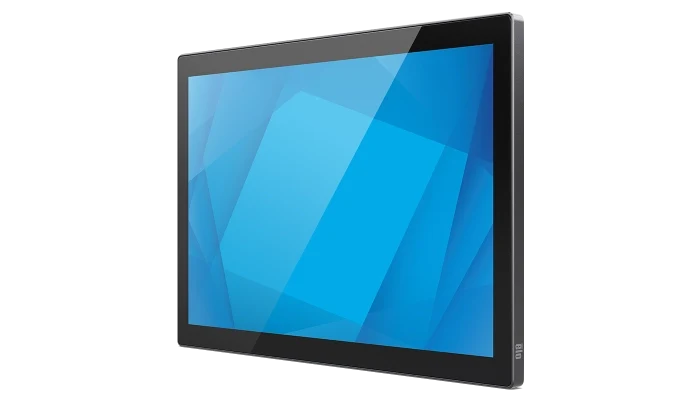

The Elo 1004LS 10.1-inch Touchscreen Monitor (E967935) provides a compact, commercial-grade display solution constructed for secondary customer interaction at the point of sale. Featuring an edge-to-edge zero-bezel glass design with direct optical bonding, this 10.1-inch panel handles customer verification, order breakdown, digital signatures, and promotional content on retail counters.
Technical Performance & Key Features
Single Cable Power & Signal Delivery
Connects to host computers using a single USB-C port that handles video output, touch input, and operational power concurrently. This single-line connection reduces cable clutter on sales desks while simplifying mounting across commercial till stations.
High-Definition Glass Display Panel
Provides HD 1280 x 800 resolution across a 10.1-inch widescreen active matrix TFT LCD panel. The screen glass includes anti-glare surface treatment to cut down glare from overhead shop lighting, maintaining visual clarity for shoppers.
Responsive Multi-Touch & Built-in Audio
Features TouchPro® Projected Capacitive (PCAP) multi-touch technology that registers up to 10 simultaneous touch points. Integrated 2-watt stereo speakers provide audio feedback during checkout tasks and customer interactions.
What's Included in the Box
-
1 x Elo 1004LS 10.1" Touchscreen Monitor (E967935)
-
1 x Pre-Assembled 75 mm VESA Adapter Plate
-
1 x USB Type-C to Type-C Cable
-
1 x Quick Installation Guide
| Specification |
Details |
| Brand |
Elo Touch Solutions |
| Product Range |
04LS Series Commercial Touchscreen Displays |
| Model Name |
Elo 1004LS |
| Manufacturer Part Number (MPN) |
E967935 |
| Global EAN or UPC Barcode |
0843173153315 |
| Form Factor |
Zero-Bezel Commercial Touch Display (No Desktop Stand Included) |
| Enclosure Colour |
Dark Grey Metallic |
| Display Screen Diagonal Size |
10.1 in (256.54 mm) |
| Native Resolution |
1280 x 800 HD @ 60Hz |
| Aspect Ratio |
16:10 Widescreen |
| Active Display Area |
216.96 mm x 135.60 mm (8.54 in x 5.34 in) |
| Touch Technology and Capacity |
TouchPro Projected Capacitive (PCAP) - 10 Touch Points |
| Screen Surface Treatment |
Anti-Glare Surface Coating |
| Display Luminance |
LCD Panel: 400 nits | With PCAP Touch: 360 nits |
| Contrast Ratio |
800:1 (Typical) |
| Viewing Angles |
Horizontal: ±85° (170° Total) | Vertical: ±85° (170° Total) |
| Response Time |
30 ms (Typical) |
| Integrated Audio |
2 x 2W Internal Stereo Speakers |
| Input Port Architecture |
1 x USB Type-C (DisplayPort Video, Touch Data, and Power Input) |
| Mounting Standard Support |

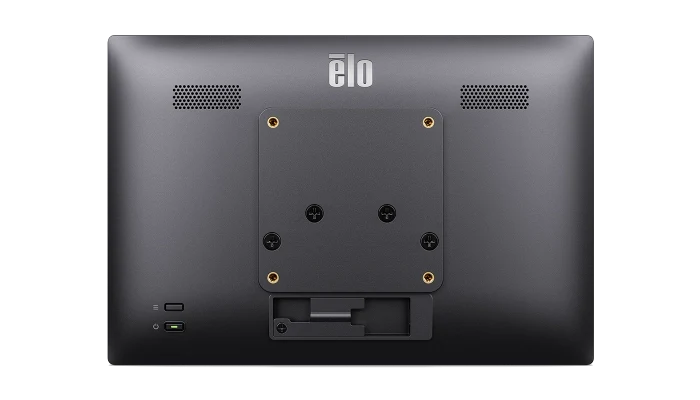

VESA 75 mm x 75 mm Pattern (Adapter Plate Included) |
| Power Consumption |
Active ON: 6.6W | Sleep Mode: 0.8W | OFF Mode: 0.15W |
| Monitor Dimensions (W x D x H) |

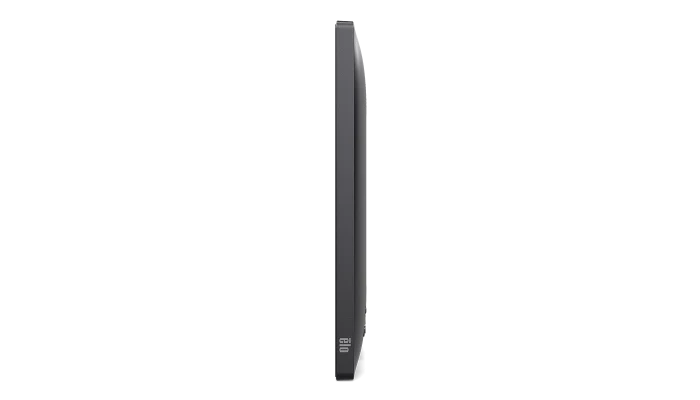

239.94 mm x 15.00 mm x 163.00 mm (9.45 in x 0.59 in x 6.42 in) |
| Packaging Dimensions (W x D x H) |
312.0 mm x 222.0 mm x 77.0 mm (12.28 in x 8.74 in x 3.03 in) |
| Net System Weight |
0.60 kg (1.32 lbs) |
| Packaged Shipping Weight |
1.11 kg (2.45 lbs) |
| Operating Temperature Range |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature Range |
-20°C to 60°C (-4°F to 140°F) |
| Operating Humidity Range |
20% to 80% Relative Humidity (Non-Condensing) |
| MTBF Reliability Rating |
50,000 Hours Continuous Operating Hours |
| Regulatory Certifications |
UKCA, CE, UL, cUL, FCC, IC, CB, VCCI, MIC, RCM, BSMI, KCC |
| Box Contents |
1004LS Touchmonitor, VESA Adapter, USB Type-C Cable, Quick Installation Guide |
| Standard Manufacturer Warranty |
3-Year Factory Limited Warranty |
