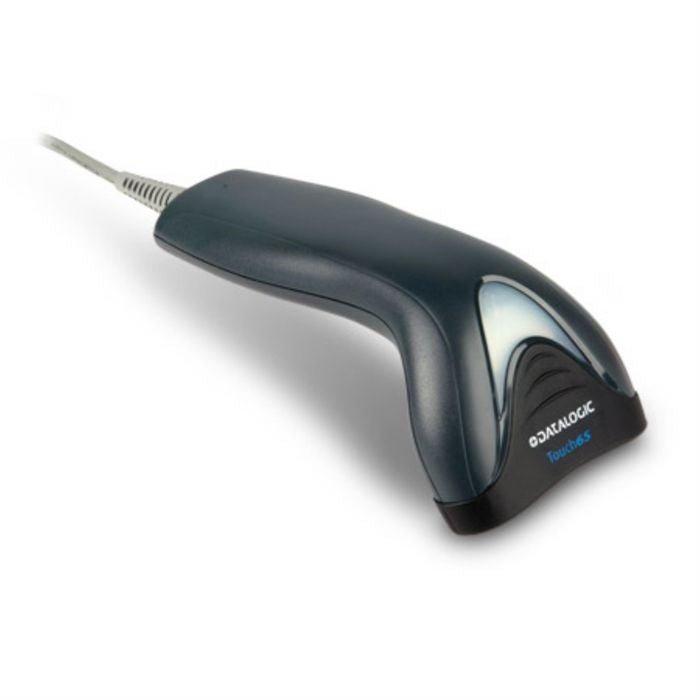

Datalogic Touch TD1100 Corded Linear Imager Barcode Scanner
The Datalogic Touch TD1100 is a series of corded linear imaging contact readers designed for low-throughput applications where a cost-effective, close-contact scanning solution is required.
The Lite vs. Pro Distinction
There are two distinct tiers within the TD1100 range:
-
Lite Models: Feature a fixed interface. You must choose either USB only or RS-232/Keyboard Wedge.
-
Pro Models: Feature a Multi-Interface (USB, RS-232, KBW, and Wand Emulation) in one unit, offering greater flexibility if you change your point-of-sale hardware in the future.
Key Features:
-
Exceptional Contact Reading: Guaranteed performance on 1D barcodes, including those that are damaged, faded, or poorly printed.
-
Two Window Sizes: Choose the 65 model for standard retail items or the 90 model for wider barcodes found on utility bills, invoices, and bank documents.
-
Hands-Free "Read-Thru" Holder: Every kit includes an innovative holder that allows the scanner to be used in a hands-free capacity for documents or small items.
-
Compact & Lightweight: Weighing as little as 130g, it is designed for comfortable, low-fatigue use throughout a shift.
-
Durable Build: Despite its entry-level price point, it features a 1.5m drop resistance and an IP30 rating.
| Feature | Touch 65 | Touch 90 |
| Reading Width | 6.5 cm / 2.6 in | 9.0 cm / 3.5 in |
| Scan Engine | Linear Imager (CCD) | Linear Imager (CCD) |
| Max Resolution | 4 mil (0.102 mm) | 5 mil (0.127 mm) |
| Drop Rating | 1.5 m (5.0 ft) to concrete | 1.5 m (5.0 ft) to concrete |
| Dimensions | 160 x 84 x 58 mm | 170 x 104 x 67 mm |
| Weight | 130g | 153g |
| Warranty | 5-Year Factory Warranty | 5-Year Factory Warranty |
What’s in the Box? (Full Kit)
-
Datalogic Touch TD1100 Scanner (Black)
-
Standard Interface Cable (USB or RS-232 depending on SKU)
-
Innovative "Read-Thru" Desktop Holder
-
Quick Start Guide
