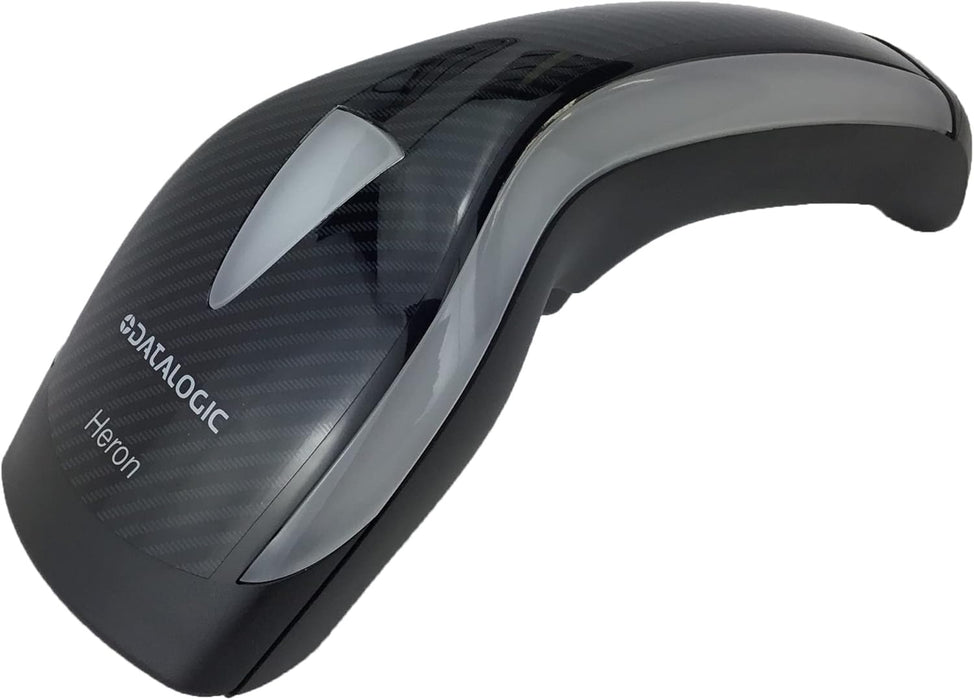

Datalogic Heron HD3430 2D Area Imager Barcode Scanner
Datalogic Heron HD3430, 2D, Area Imager, multi-IF, kit (USB), black.
SKU: HD3430-BKK1B.
handheld scanner, retail, 2D, Area Imager, Green Spot, multi-interface (RS232, KBW, USB), IP40, incl.: cable (USB), stand, colour: black
| Feature | Details |
| Scanner Engine | Wide VGA: 752 x 480 pixels |
| Aiming System | 650 nm Laser (4-dot centre-cross) |
| Drop Resistance | Withstands repeated drops from 1.5m (5.0 ft) to concrete |
| IP Rating | IP40 (Protected against solid objects >1mm) |
| Weight | 150g (Excluding cable) |
| Dimensions | 152mm x 153mm x 68mm |
| Warranty | 5-Year Factory Warranty |
-
Stunning Design Aesthetics: Features a unique, curving silhouette with in-mould decorated top covers. You have the choice of a "carbon-fibre" look for black models or a "silver" look for white models.
-
Customisable Branding: The side and top LED lights can be programmed to match your company colours, and the unit supports custom audio feedback (polyphonic speaker) to reinforce your brand at the checkout.
-
High-Motion Tolerance: Utilises a global shutter sensor that allows for rapid reading of barcodes even when they are moving quickly—ideal for fast-paced retail environments.
-
Patented "Green Spot" Technology: Provides a physical green dot of light directly on the barcode to confirm a successful read, supplemented by customisable LED strips and audio.
-

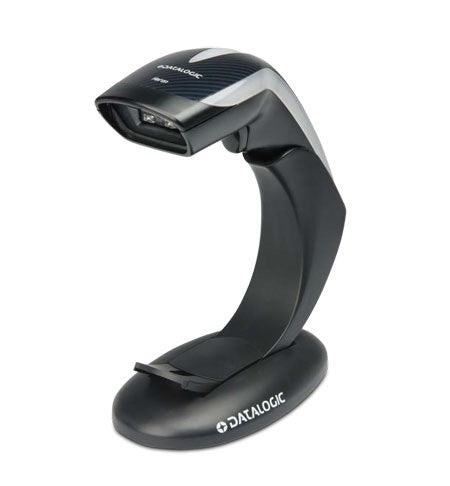

Hands-Free Versatility: Every Heron HD3430 includes a matching "Autosense" stand. The scanner automatically detects when it is placed in the stand and switches to hands-free presentation mode.
-
Advanced 2D Decoding: Effortlessly reads all standard 1D and 2D codes (including QR, Data Matrix, and Aztec) from both paper labels and mobile phone screens.
| Variant | Part Number (SKU) | What's Included |
| Black USB Kit | HD3430-BKK1B | Scanner (Black), Fixed Stand, USB Cable |
| White USB Kit | HD3430-WHK1B | Scanner (White), Fixed Stand, USB Cable |
| Black Flex Kit | HD3430-BKK1S | Scanner (Black), Flex Stand, USB Cable |
| White Flex Kit | HD3430-WHK1S | Scanner (White), Flex Stand, USB Cable |
| Black Standalone | HD3430-BK | Scanner (Black), Fixed Stand (Requires Cable) |
| White Standalone | HD3430-WH | Scanner (White), Fixed Stand (Requires Cable) |
