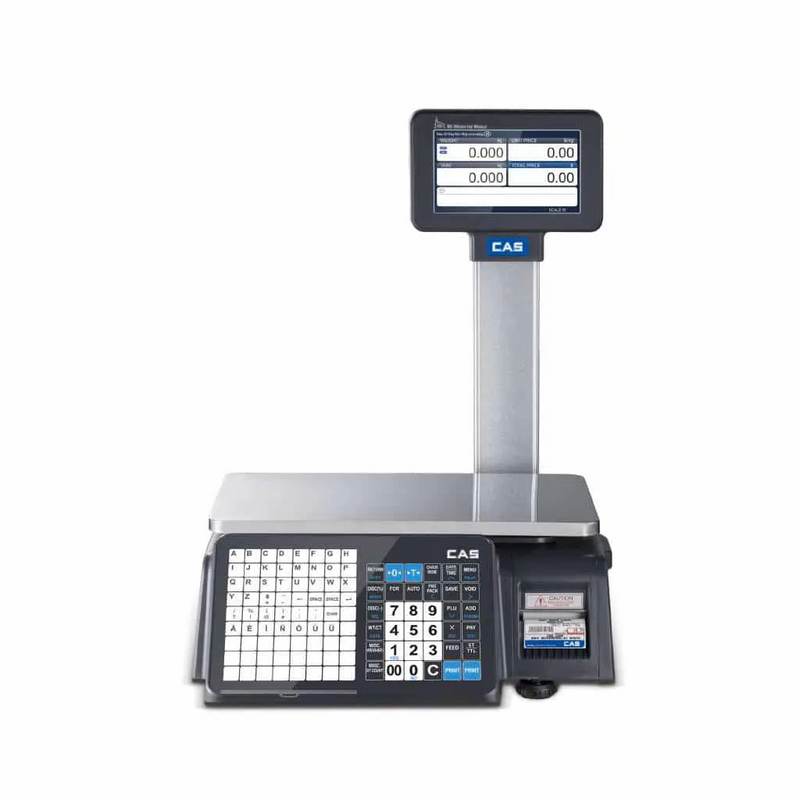

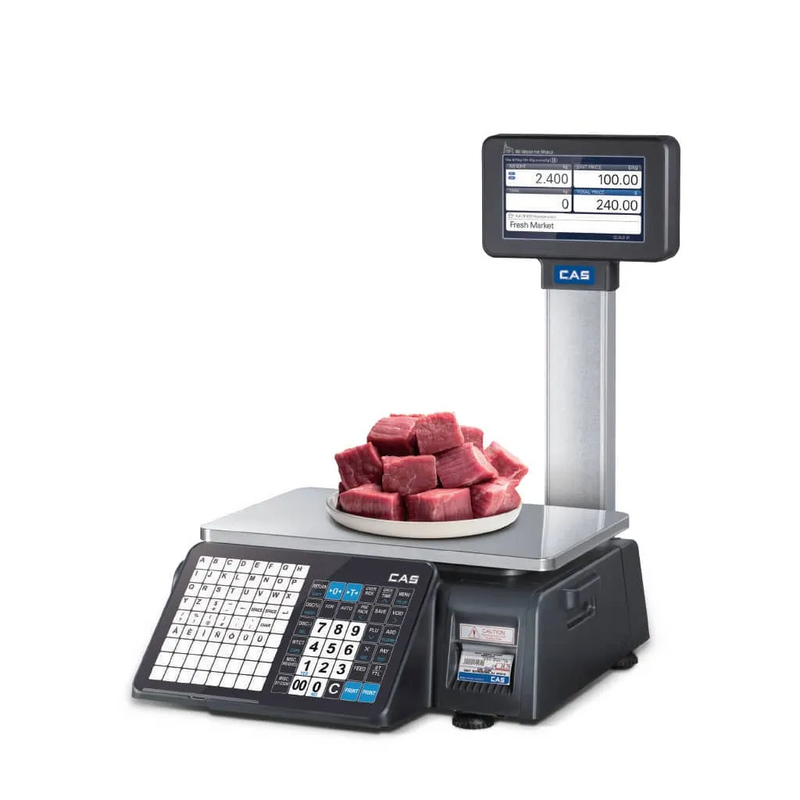

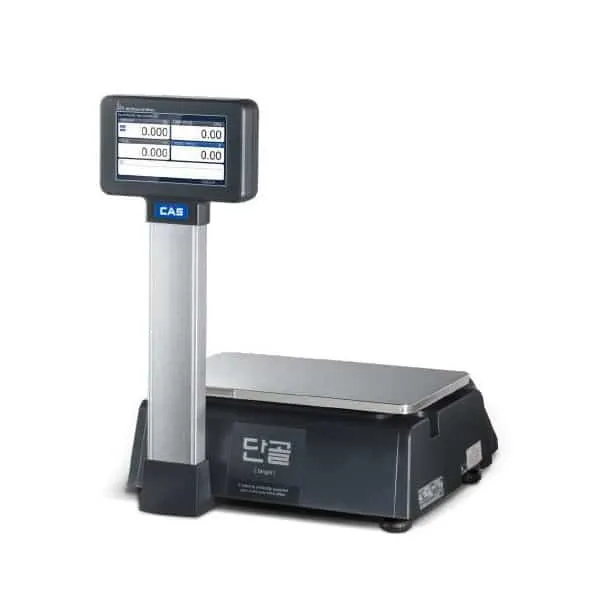

CAS CN1 Network Label Printing Scale (15kg Trade Approved)

Advanced Successor to the CAS CL5200 & LP1 Series

The CAS CN1 is a high-performance, network-ready label printing scale designed for modern retail environments such as butchers, delis, greengrocers, and supermarkets. Engineered as the upgraded replacement for the legacy CAS CL5200 and LP1 series, the CN1 delivers faster 100mm/s thermal printing, an enhanced die-cast aluminium frame, and a dual-sided 7-inch colour display for both operator and customer transparency.

This standalone page covers the standard UK pole-display model configured for UK £/kg specifications.

Key Retail & Hardware Features

  • Natasha’s Law & Allergen Compliance: Produces high-resolution thermal labels displaying weights, unit prices, barcodes, and detailed ingredient lists. Fully supports bold allergen highlights and nutritional tables to ensure strict UK food legislation compliance.

  • Dual-Range Trade Precision: Fully certified as an EC Type Approved Class III scale ("Legal for Trade" in the UK). Utilizes dual-range weighing: 0kg–6kg in 2g increments, and 6kg–15kg in 5g increments.

  • Intuitive 7" Dual-Sided Colour Display: Vivid 800 x 480 LCD screen provides an easy-to-navigate icon menu for operators and clear price-per-kg visibility for shop customers.

  • 72 Direct Speed Keys: Includes 72 tactile PLU shortcut keys with double-click capability to trigger up to 144 fast-moving items instantly at the counter.

  • CL-Works Pro Network Management: Connect multiple CN1 units across LAN networks in master/slave setups. Use CAS CL-Works Pro PC software to manage up to 10,000 PLUs and 1,000 ingredient templates remotely.

  • Heavy-Duty Build: Includes a food-grade 380mm x 250mm stainless steel weighing platter supported by a die-cast aluminium chassis built for busy counter use.

  • Supported Label Width: 40mm to 60mm

  • Supported Label Length: 30mm to 290mm (Supports full continuous linerless or die-cut labels)

  • Standard Roll Compatibility: Fits standard 58mm x 40mm (Small) and 58mm x 60mm (Large) thermal scale label rolls on standard 38mm cores.

Operating Modes (Pre-Pack vs. REGister Mode)

Explain how it functions at the counter to capture long-tail retail queries:

  • Standard REGister Mode: Instantaneous weighing and label generation at the point-of-sale counter. Includes an "Add" Function to sum multiple weighed items into a single overall transaction total label for scanning at checkout.

  • Pre-Pack Mode: Automated batch printing for pre-packaging meat, cheese, or produce before store opening.

Technical Specifications

Specification Details
Max Weighing Capacity 15kg (Dual Range)
Readability / Increments 2g (0–6kg) / 5g (6–15kg)
Display Type Dual 7" Full Colour LCD Screens (800 x 480)
Print Speed & Width Direct Thermal at 100mm/sec (Supports 40mm–60mm label width)
Supported Barcodes EAN13, CODE128, UPC, I20F5, GS1 DataBar, QR Code
Memory Capacity 10,000 PLUs / 1,000 Ingredient Profiles
Interfaces Ethernet LAN, RS-232C, USB, RJ11 Cash Drawer Port

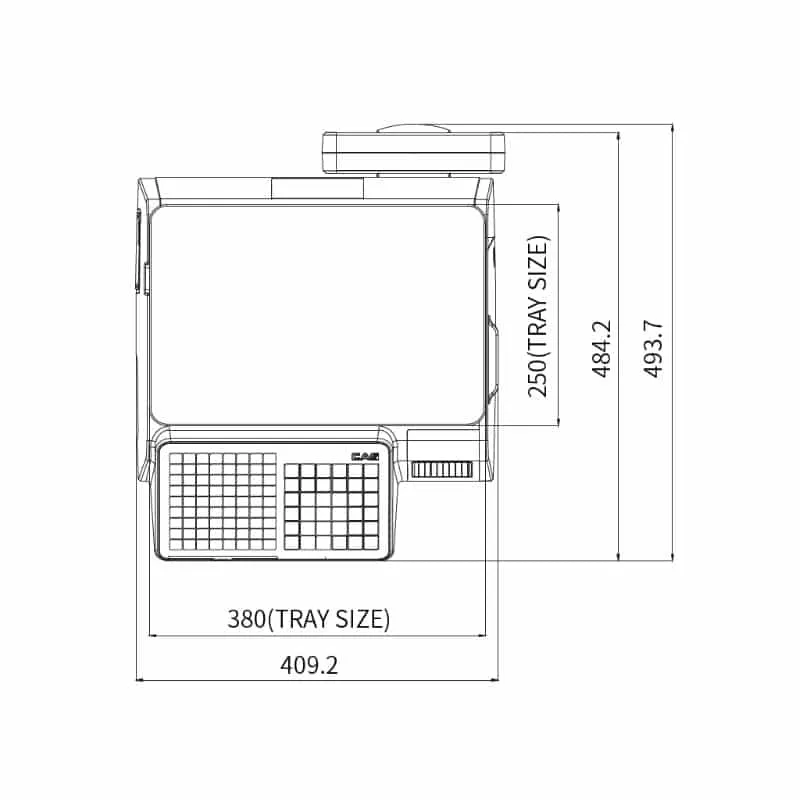

Platter Size 380mm (W) x 250mm (D) Stainless Steel
Trade Certification UKCA / OIML EC Type Approved (Class III)

What's in the Box?

  • CAS CN1 15kg Label Printing Scale (Pole Display Unit)

  • Removable Stainless Steel Weighing Platter

  • UK 3-Pin Mains Power Cable

  • Official UK Trade Use Verification Certificate

  • Quick Setup Guide & User Manual

Complete Barcode Compatibility Matrix

List supported barcode formats so IT managers know it fits their EPOS:

  • Supported Formats: EAN13, CODE128, UPC, I20F5, GS1 DataBar, and QR Codes.
