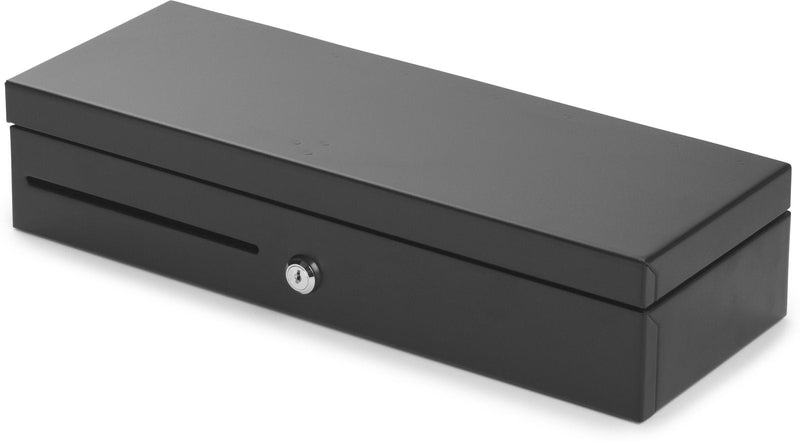

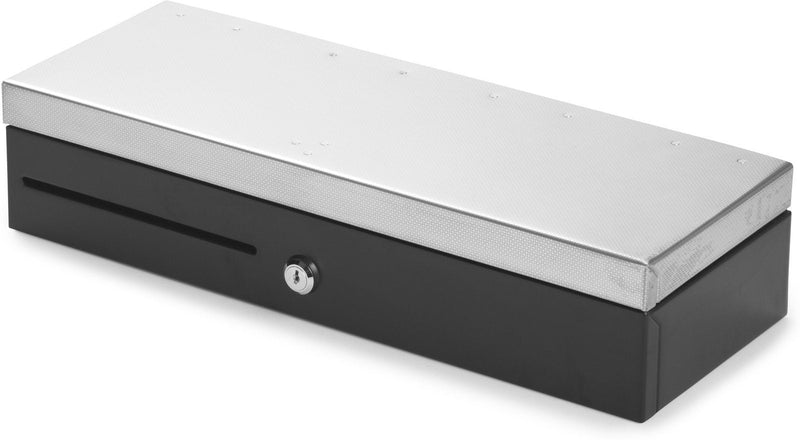

Capture 460 Flip Top Cash Drawer – Compact, Secure & Reliable POS Cash Drawer

The Capture 460 flip-top cash drawer (CF-460 series) is a space-saving, heavy-duty POS cash till engineered specifically for fast-paced UK supermarket, retail, bar, and hospitality checkouts. Designed with a narrow 460 mm footprint and a vertical-opening lid, it allows cashiers to process transactions quickly where counter space is limited.

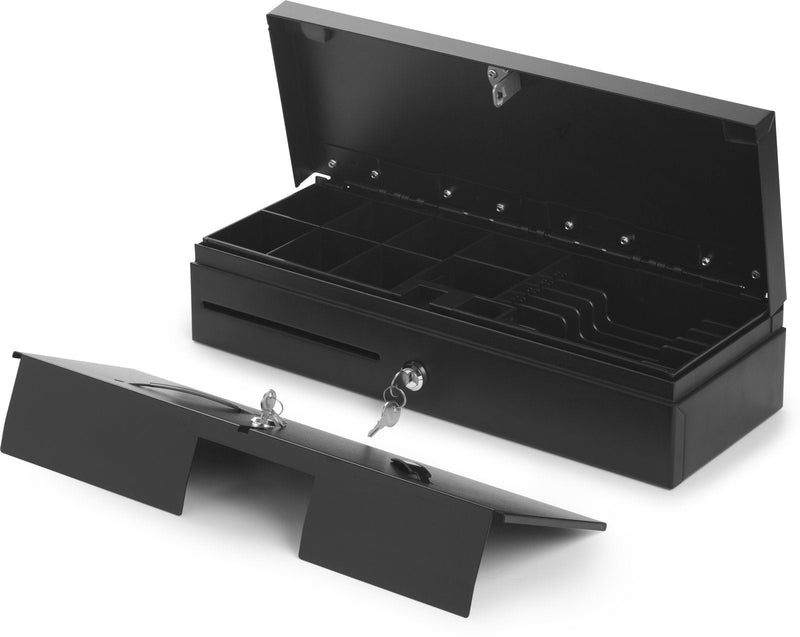

Built from tough powder-coated steel, it includes a removable high-capacity till insert with 6 note slots and 8 coin compartments, a front media slot for posting cheques and vouchers without opening the lid, and a lockable transport cover for secure float balancing between shifts. The universal RJ11/RJ12 interface with built-in microswitch connects directly to standard receipt printers (12V/24V) and tracks real-time drawer status in your EPOS software.

Key Features & Specs

• Compact Vertical Footprint: 460 mm (W) x 170 mm (D) x 100 mm (H) – fits narrow checkout lanes and under-counter spaces.

• UK Currency Layout: 6 note compartments and 8 coin sections for quick note and change handling.

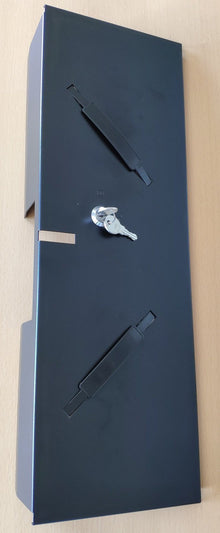

• Lockable Transport Lid: Includes a key-locked lid cover for safe cash tray movement to back-office counting rooms.

• Printer Interface: Dual-voltage 12V/24V RJ11/RJ12 connection for automatic opening via receipt printers.

• Status Microswitch: Real-time drawer open/closed sensor compatible with major UK EPOS software.

• Front Media Slot: Post credit card slips, vouchers, and high-value notes directly into the till base.

• 2-Position Lock: Manual key open and automated printer-driven electronic release.

• Warranty: 1-year UK manufacturer warranty.

Part Numbers & Accessories
