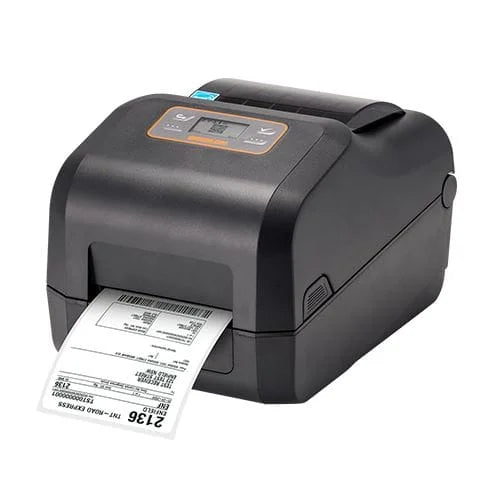

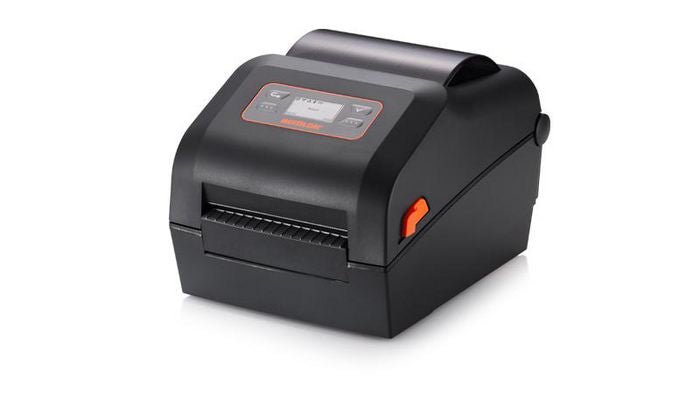

BIXOLON XD5-40DK/BEG 4-inch Direct Thermal Label Printer | USB & USB Host

BIXOLON XD5-40DK/BEG 4-inch Direct Thermal Label Printer | USB & USB Host

SKU XD5-40DK/BEG
by Bixolon
€245.95 - €245.95
€245.95
€245.95 - €245.95
€245.95

The BIXOLON XD5-40DK/BEG is a mid-level, high-performance direct thermal desktop printer designed for professional labelling in the manufacturing, transport, logistics, and healthcare sectors. This specific model features a compact clamshell design and is optimised for high-speed, monochrome printing of shipping labels, asset tags, and barcodes.

Equipped with dual USB 2.0 and USB Host interfaces as standard, it allows for easy data cloning and integration into existing systems.

Key Features

  • High-Speed Performance: Delivers rapid print speeds of up to 178mm/sec (7 ips) at a standard 203 dpi resolution for efficient throughput.

  • USB Host Port: Includes a USB Host interface featuring Twin Function™, which enables the duplication of printer settings and data across multiple units for fast deployment.

  • Smart Media Detection™: Automatically identifies various media formats, including Gap, Black Mark, Continuous, and Notch, ensuring accurate printing without manual calibration.

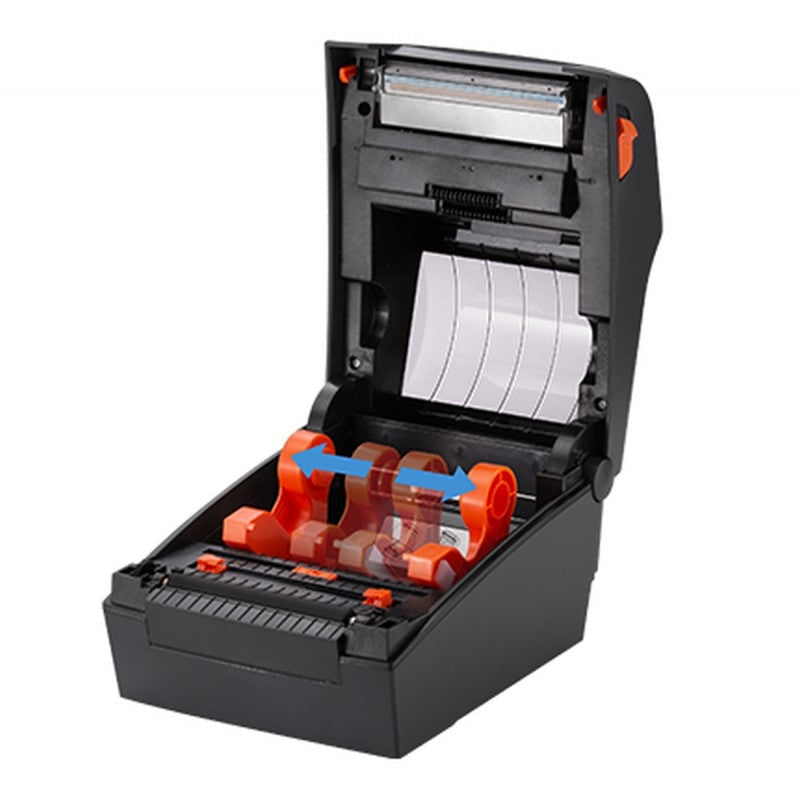

  • User-Friendly Design: Features a compact clamshell body with intuitive menu buttons and an adjustable media guide and holder for simple media loading.

  • Industry Compatibility: Seamlessly supports market-leading programming languages such as SLCS, BPL-Z™ (ZPLII), and BPL-E™ (EPL).

  • Rugged Reliability: Built to operate in diverse environments with a 2-year warranty as standard and tool-less design for easy maintenance of the print head and platen roller.

Feature Specification
Manufacturer Part Code XD3-40DK/BEG
Print Method Direct Thermal
Resolution 203 dpi ($8 \text{ dots/mm}$)
Max Print Speed 178 mm/sec
Max Print Width Up to 108 mm
Media Width 15 mm to 118 mm
Media Roll Diameter Up to 127 mm (5 inches)
Standard Memory 64 MB SDRAM / 128 MB Flash
Interface USB 2.0 + USB Host
Dimensions (WxDxH) 194mm x 248mm x 169mm
Weight 1.89 kg



Software & Support

  • Label Design: Bundled with BarTender® UltraLite for BIXOLON and Label Artist-II™ for professional label creation.

  • Advanced Management: Compatible with BIXOLON’s XPM™ web-based printer profile management software and Simple Network Management Protocol (SNMP).

  • Platform Compatibility: Fully compatible with Microsoft Windows, Apple macOS, Linux, Android, and iOS.

  • Eco-Efficiency: Certified by ENERGY STAR for energy-efficient operation.

What’s in the Box?

  • BIXOLON XD5-40d Label Printer (Black)

  • External AC/DC Power Adaptor & UK Power Cord

  • USB Type B Cable

  • Quick Installation Guide
