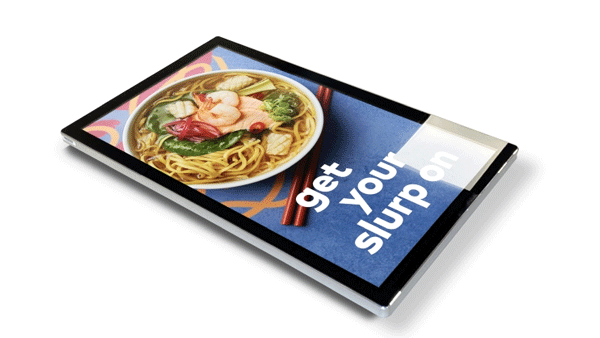

The Allsee Slimline Pro HD9 Series is the gold standard for high-end retail, hospitality, and corporate environments. Combining a sleek, diamond-cut aluminium surround with edge-to-edge toughened glass, these displays offer a premium aesthetic that consumer screens simply cannot match.
Designed for 24/7 commercial use, the Slimline Pro ensures your message is delivered with crystal-clear precision, day and night.
Choose Your Size:
22" (PF22HD9): Ideal for counters, shelf-edge displays, or small entryways.

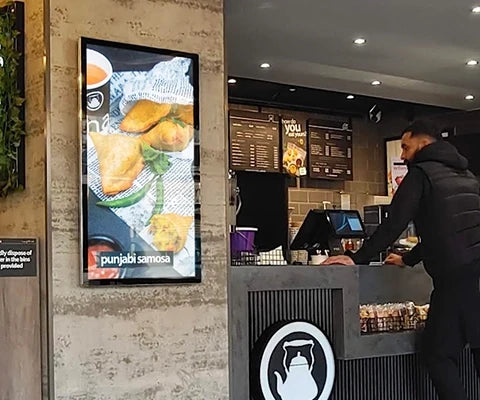

32" (PF32HD9): The perfect mid-size for digital menu boards and directory signage.
43" (PF43HD9): Our best-seller for high-impact window and wall advertisements.
50" (PF50HD9): Command attention in larger showrooms and reception areas.

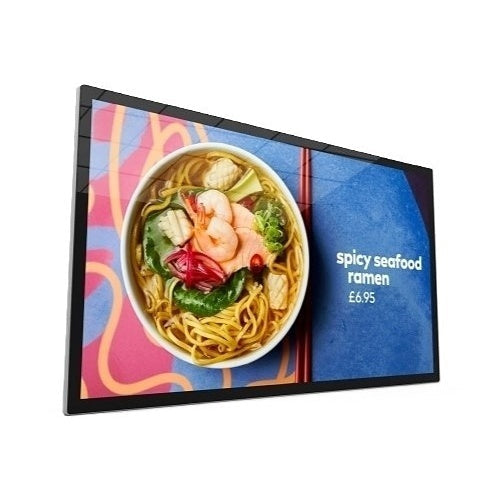

55" (PF55HD9): The ultimate large-format display for maximum visual impact.
Features:
-
24/7 Commercial Grade: Unlike domestic screens, these units are built with industrial-grade panels and cooling systems, rated for over 70,000 hours of continuous use.
-
450cd/m² IPS Panel: Experience incredible image quality and colour depth. The IPS technology ensures lifelike colours and a wide 178° viewing angle in both landscape and portrait.
-
Toughened Safety Glass: The edge-to-edge 7H hardness tempered glass protects the screen from damage in public spaces while providing an anti-glare finish for better visibility.
-
Integrated Android Media Player: No external PC required. The built-in player allows for seamless "Plug & Play" via USB or an easy upgrade to cloud-based management.
-

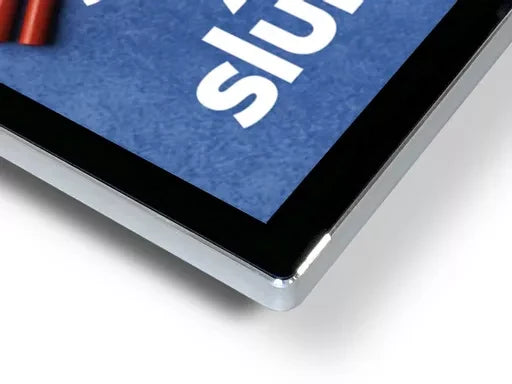

Sleek Aluminium Surround: The frame is sculpted from a single piece of diamond-cut 6-series aluminium alloy for a premium brushed finish and clean, modern lines.
What’s in the Box?
Every Slimline Pro display comes as a complete kit, ready for immediate installation:
-
1 x Allsee Slimline Pro Advertising Display (Chosen Size)
-
1 x Free Flush-Fit Wall Mount: A super-slim bracket that allows for landscape or portrait mounting with a near-zero gap to the wall.
-
1 x Remote Control & Batteries: For easy setup and manual control.
-
1 x Internal Locker Key: To keep your USB ports and power inputs secure from tampering.
-
1 x Power Cable: Standard UK mains connection.
-
1 x Free Scheduling Software: Manage your content cycles (e.g., breakfast, lunch, and dinner menus) with ease.
-
1 x User Manual: Comprehensive guide for setup and operation.
Optional Upgrades & Accessories
-
Network CMS Upgrade (W3): Upgrade to cloud management to update your screens remotely via the internet. Available in 1-Year, 3-Year, or Lifetime options.
-
Telescopic Ceiling Mounts: Ideal for window displays or locations where wall space is limited.
-
Freestanding Floor Stands/Trolleys: Transform your wall-mounted screen into a portable advertising totem for events and showrooms.
-
External Media Players: While it has a built-in player, the HDMI and VGA inputs allow you to connect your own NUC or third-party media source.
| Specification |
Details |
| Brand & Series Name |
Allsee Slimline Digital Signage Advertising Display Series (Plug and Play / Android) |
| Model Variants Supported |
PF22HD10 (22"), PF32HD9 (32"), PF43HD9 (43"), PF50HD9 (50"), PF55HD9 (55") [Standalone Wall-Mounted Advertising Display Series] |
| Colour Variants Available |
Piano Black & Brushed Aluminium (Edge-to-edge tempered safety glass face with diamond-cut 6-series aluminium alloy surround and robust steel back) |
| Display Sizes & Resolutions |
22 Inch: 1920 x 1080 Full HD | 32 Inch: 1920 x 1080 Full HD | 43 Inch: 1920 x 1080 Full HD | 50 Inch: 1920 x 1080 Full HD | 55 Inch: 1920 x 1080 Full HD |
| Display Brightness & Panel Type |
450 cd/m² Commercial IPS Panel (250 cd/m² on 22" model) | 16:9 Aspect Ratio | 178°/178° Ultra-Wide Viewing Angle | Direct LED Backlight | 16.7M Display Colours | 5000:1 Contrast Ratio |
| Touch Technology |
Non-Touch Display Panel (Commercial Standalone / Network Digital Signage Display) |
| System Architecture & Processing |
Integrated 24/7 Commercial Android Media Player | Quad-Core ARM Cortex-A17 CPU (1.6GHz) | Quad-Core ARM Mali-T764 GPU | 2GB DDR3 RAM | 8GB eMMC Internal Storage |
| Operating System & Software Compatibility |
Android 7.1 Commercial OS (Supports USB Plug & Play content playback or optional Cloud Network CMS update subscription) |
| Peripheral Connections & Interfaces |

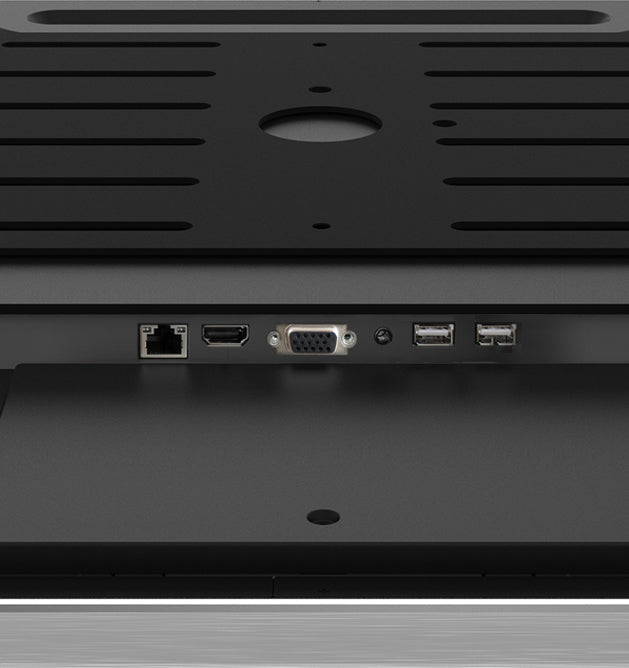

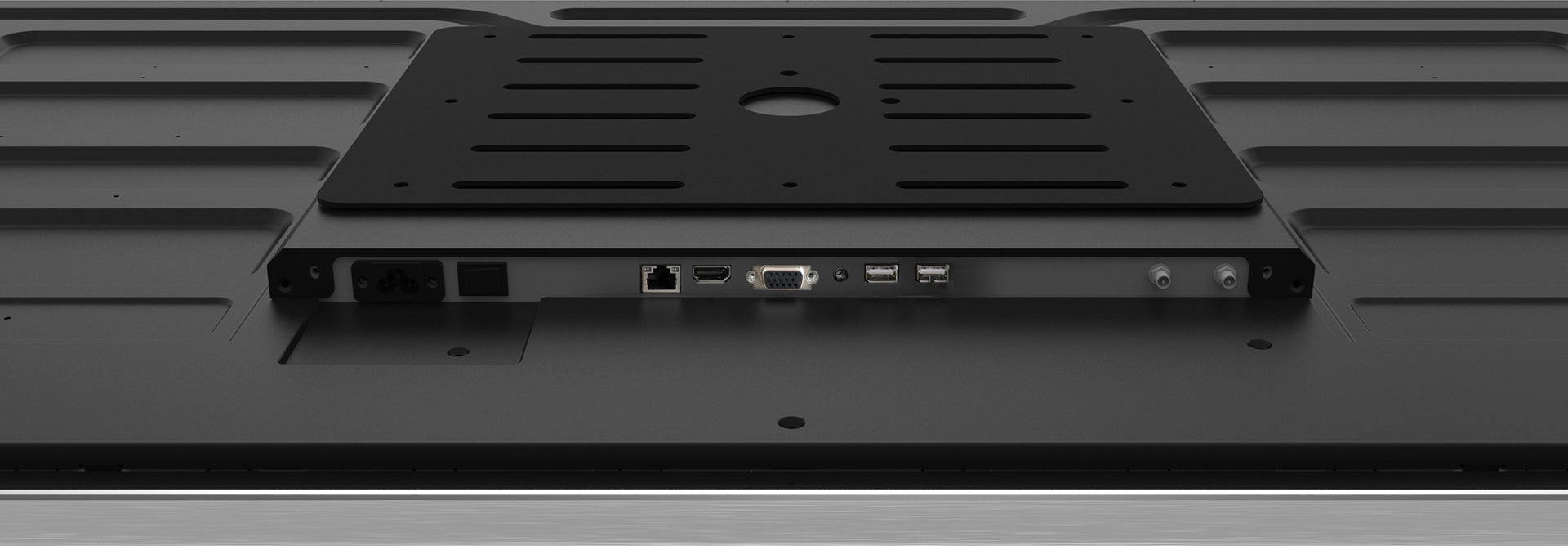

Inputs: 1x HDMI, 1x VGA, 2x USB Host (1x OTG/Host), 1x 3.5 mm Audio In, 1x RJ45 Ethernet LAN | Outputs: 1x 3.5 mm Audio Out |
| Network & Wireless Connectivity |
Gigabit Ethernet (10/100/1000 Mbps LAN RJ45) | Built-in Wi-Fi (802.11 b/g/n/ac) | Bluetooth 4.0 |
| Integrated Hardware Features |
Built-in Dual Stereo Speakers (2x 2W on 22" / 2x 5W on 32"–55") | Integrated Power Timer | Smart Ambient Light Sensor | Ticker-Tape Scrolling Text Support | Internal Lockable Access Compartment |
| Active Display Area (W x H) |
22": 475.0 mm x 266.4 mm | 32": 697.4 mm x 391.9 mm | 43": 941.2 mm x 529.4 mm | 50": 1072.8 mm x 603.0 mm | 55": 1209.6 mm x 680.4 mm |
| Unit Dimensions (W x H x D) |
22": 529.6 mm x 321.0 mm x 42.3 mm | 32": 752.0 mm x 446.0 mm x 48.0 mm | 43": 996.0 mm x 583.0 mm x 48.0 mm | 50": 1150.0 mm x 670.0 mm x 48.0 mm | 55": 1267.0 mm x 736.0 mm x 48.0 mm |
| Net Unit Weight |
22": ~6.0 kg | 32": ~11.5 kg | 43": ~17.0 kg | 50": ~28.0 kg | 55": ~30.2 kg |
| Power Supply & Power Consumption |
AC 110-240V (50/60Hz) Mains Input | Average Operational Consumption: 22" (~19W) | 32" (~42W) | 43" (~85W) | 50" (~89W) | 55" (~93W) | Standby: <0.5W |
| Hardware Reliability Ratings |
24/7 Commercial-Grade Continuous Operation (70,000+ Hours Lifespan) | Buttonless Tamper-Proof Enclosure | Operating Temperature: 0°C to 50°C |
| Mounting Options & Orientation |
Includes Super Slim Flush-Fit Wall Mount Bracket | VESA Pattern (22": 400x200 mm | 32"/43"/50"/55": 400x400 mm) | Supports Landscape and Portrait orientations |
| In the Box |
Slimline Pro Advertising Display Unit, Flush-Fit Wall Mount Bracket, AC Mains Power Cable, Remote Control, Lock Access Key, Free Scheduling Software, Setup Manual |
| Warranty & Support |
3-Year Commercial Manufacturer Warranty with Lifetime UK-Based Technical Support |
