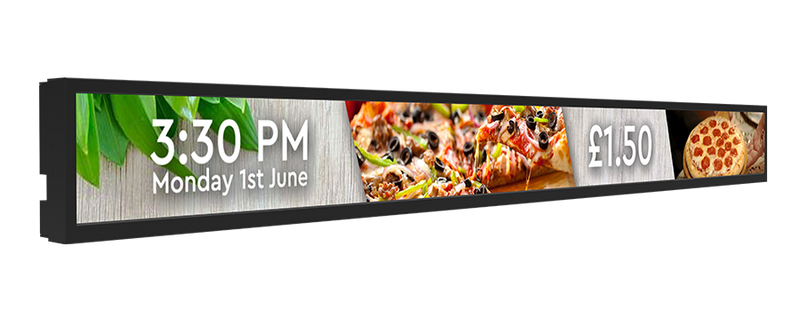

Transform your shop floor with the Allsee SE23B, a premium 23-inch ultra-wide digital shelf-edge display. Designed to replace static paper labelling and traditional "shelf talkers," this high-impact signage solution combines vivid imagery with smart interactivity to boost impulse buys and modernise the customer experience.
Key Features
-
Ultra-Wide Aspect Ratio: Custom-stretched to fit standard UK retail shelving and endcap units without obstructing stock.
-
High-Definition Clarity: Unlike pixelated LED strips, the SE23B uses a crisp LCD panel 1920 x 158, perfect for legible price tags, nutritional info, and QR codes.
-
700cd/m² IPS Panel: High-brightness commercial-grade screen ensures your promotions stand out, even under bright supermarket fluourescent lighting.
-
Anti-Glare Finish: Treated with a specialised coating to diffuse reflections, ensuring your content is readable from every angle.
-
Seamless Synchronisation: Link multiple displays across a single aisle to create a continuous, flowing visual "wave" of content.
-
24/7 Commercial Reliability: Engineered with industrial components for constant use, backed by a comprehensive UK-based warranty.
What’s in the Box?
Everything required to get your digital display operational straight out of the packaging:
-
1 x Allsee SE23B 23” Display Unit
-
1 x UK 3-Pin Power Supply & Cable
-
1 x Remote Control (Including batteries)
-
1 x Integrated Android Media Player (Built-in)
-
1 x Scheduling & Content Management Software
-
1 x Quick Start Guide (English)
-
1 x Mounting Template (For easy shelf-bracket alignment)
| Specification |
Details |
| Brand & Series Name |
Allsee LCD Shelf-Edge Ultra-Wide Stretched Label Display Series |
| Model Variants Supported |
SE23B (23-Inch Ultra-Wide Commercial Shelf-Edge Digital Display) |
| Colour Variants Available |
Black (Ultra-slim, narrow bezel enclosure with protective front glass cover) |
| Display Panel & Resolution |
23 Inch Ultra-Wide Stretched IPS Commercial Panel | 1920 x 158 Resolution | 16:1.3 Aspect Ratio | 500 cd/m² Brightness | 1000:1 Contrast Ratio | 178°/178° Viewing Angle | 16.7 Million Colours |
| Touch Technology |
Non-Touch Display Panel (Commercial Digital Shelf-Edge Strip Display) |
| System Architecture & Processing |
Integrated Commercial Android Media Player | Quad-Core Processor | 2GB DDR3 RAM | 16GB eMMC Internal Storage |
| Operating System & Software Compatibility |
Android OS (Supports USB Plug & Play content loading or optional Cloud Network CMS update subscription for multi-shelf management) |
| Shelf Strip Multi-Screen Synchronisation |
Integrated Daisy-Chain & Multi-Screen Network Sync (Allows continuous video animation or synchronized pricing updates across whole shelf bays) |
| Peripheral Connections & Interfaces |
1x USB 2.0 Host, 1x RJ45 Ethernet LAN, 1x Micro SD Card Slot, DC Power Input |
| Network & Wireless Connectivity |
Fast Ethernet (10/100 Mbps LAN RJ45) | Built-in Wi-Fi (802.11 b/g/n) | Bluetooth |
| Integrated Hardware Features |
Tool-free Shelf Mounting Brackets | Integrated Eco Power Timer | Compact Low-Profile Power Input | Passive Cooling System |
| Active Display Area (W x H) |
585.6 mm x 48.2 mm |
| Unit Dimensions (W x H x D) |
597.4 mm x 60.2 mm x 15.8 mm |
| Net Unit Weight |
1.2 kg |
| Power Supply & Power Consumption |
12V DC Input Power Adapter | Power Consumption: ~12W Typical | Standby: <0.5W |
| Hardware Reliability Ratings |
24/7 Commercial-Grade Continuous Operation (50,000+ Hours Lifespan) | Operating Temperature: 0°C to 50°C |
| Mounting Options & Orientation |

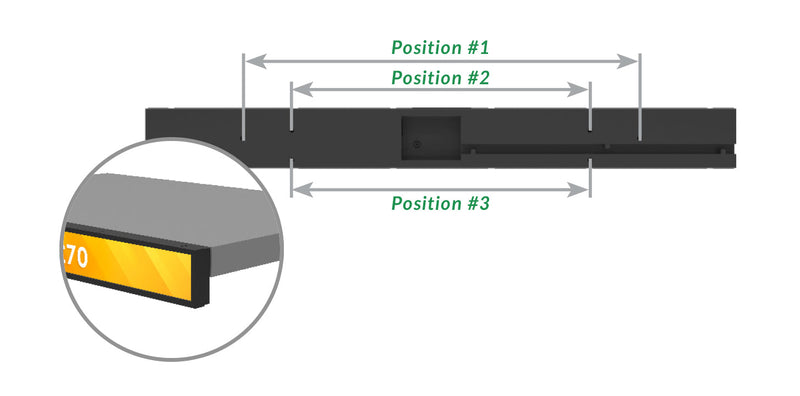

Clip-in Shelf Edge Strip Bracket Compatible | Direct Supermarket Shelving Strip Integration | Supports Horizontal Shelf Orientation |
| In the Box |
SE23B 23" Shelf-Edge Display Unit, Power Adapter with Mains Cable, Shelf Mounting Clips, Quick Start Guide |
| Warranty & Support |
3-Year Commercial Manufacturer Warranty with Lifetime UK-Based Technical Support |
