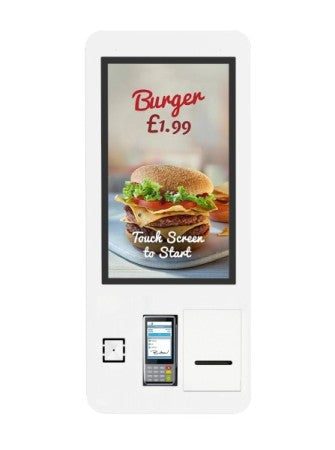

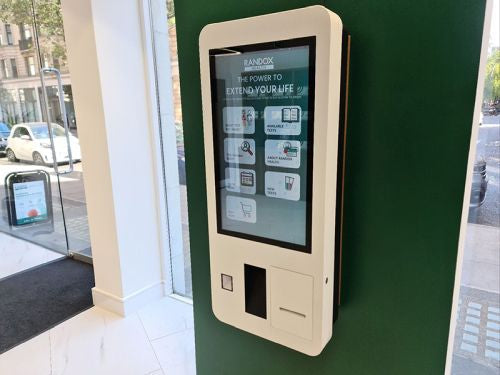

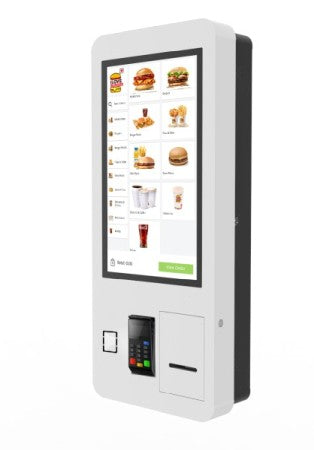

The Allsee PCAP Self-Service Kiosk is a comprehensive, all-in-one automated ordering solution designed to reduce queues and enhance the customer journey. Engineered for 24/7 commercial use, these kiosks feature a high-performance Intel Core i5 Windows PC integrated into a secure, slimline metal enclosure.

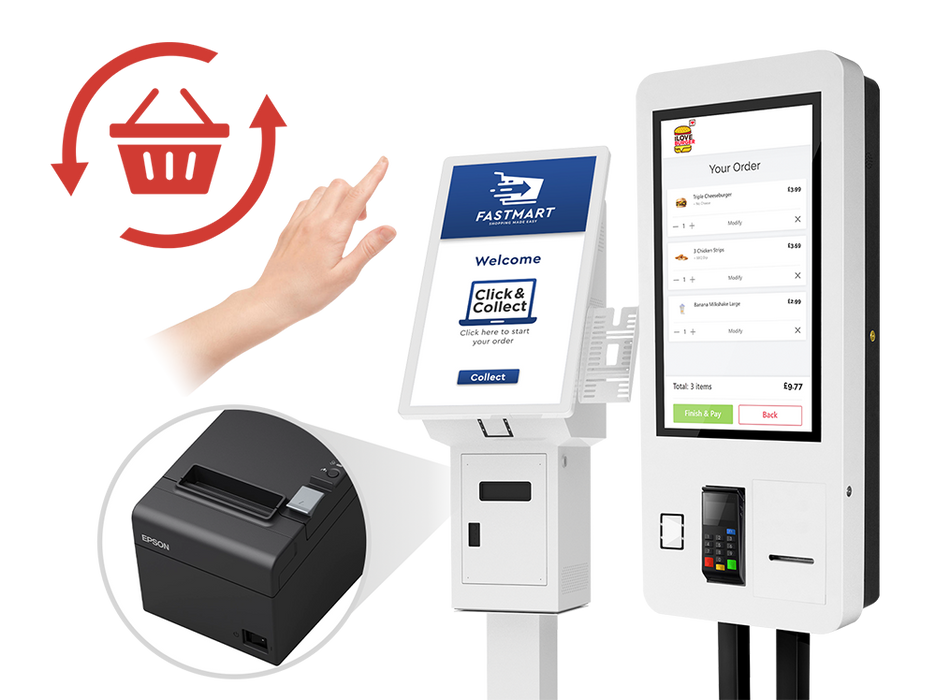

Equipped with a 10-point Projected Capacitive (PCAP) multi-touch display, an integrated 80mm thermal printer, and a 2D barcode/QR scanner, the SO-Series provides everything needed for self-service ordering, ticketing, and check-in.
Variant & SKU Guide
| Part Code |
Screen Size |
Resolution |
Brightness |
Integrated PC |
Installation Options |
| SO22B |
22 Inch |
1080 x 1920 |
250 cd/m² |
Intel Core i5 |
Wall, Countertop, or Floor |
| SO27C |
27 Inch |
1080 x 1920 |
350 cd/m² |
Intel Core i5 |
Wall or Floor Standing |
Allsee Cloud CMS Subscription Options
Manage your self-service interface remotely with a MySignagePortal CMS Subscription. This allows you to update menus, run promotional videos, and monitor kiosk status from any UK location.
-
1-Year CMS Subscription: Full cloud network access for 12 months.
-
3-Year CMS Subscription: Discounted multi-year plan for retail chains.
-
Lifetime CMS Subscription: A one-time payment for the life of the kiosk. No recurring annual fees
Key Features for QSR & Retail
-
All-in-One Automated System: Includes a high-speed Epson thermal printer and omni-directional scanner, reducing the need for separate hardware.
-
Easy Maintenance: A lockable front access door allows staff to swap printer rolls or perform tool-free maintenance without removing the unit from the wall.
-
Anti-Vandal Design: Features a thermally toughened 6H glass front and a secure metal enclosure designed for unsupervised public spaces.
-

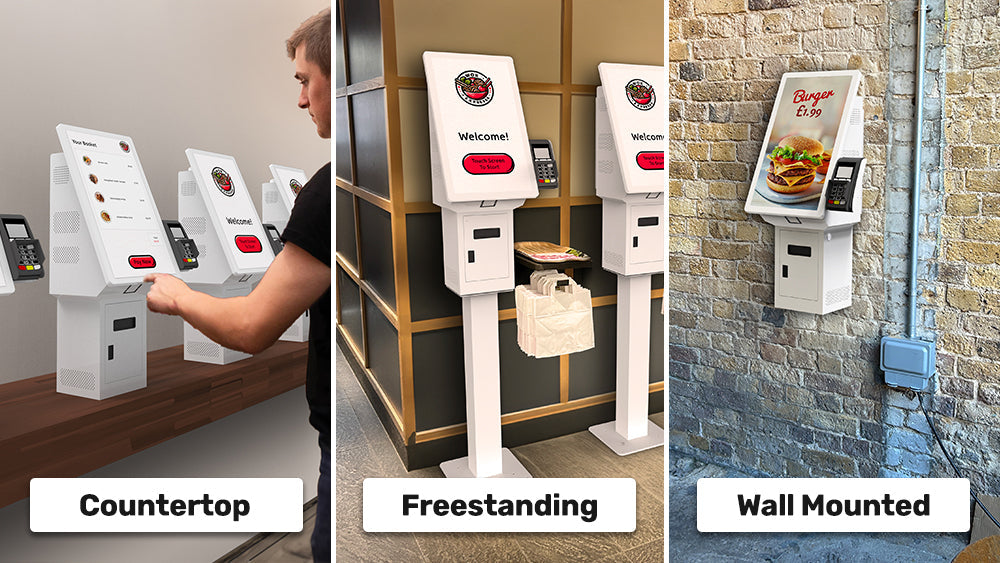

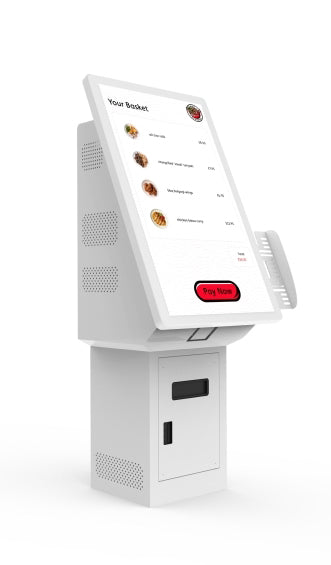

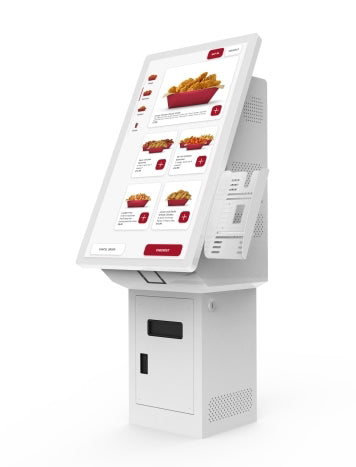

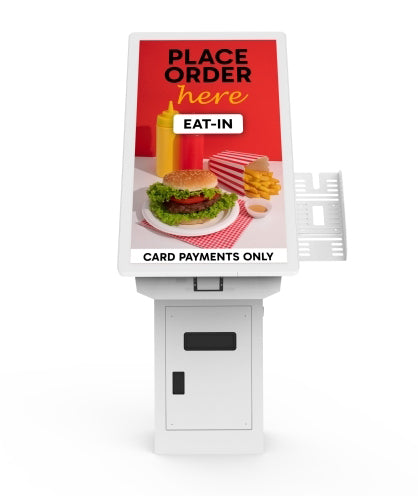

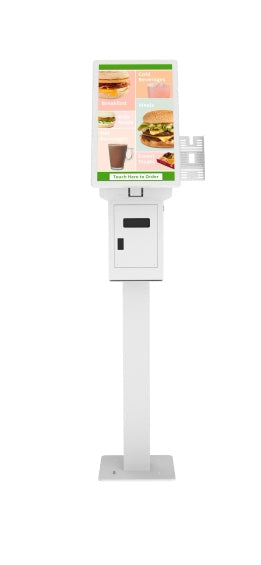

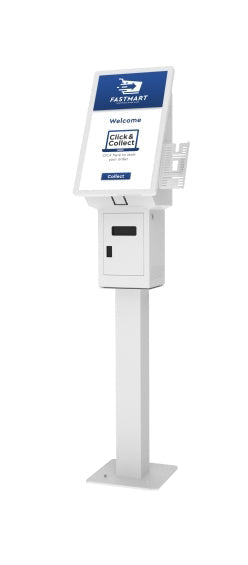

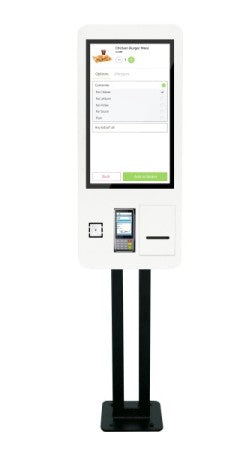

Versatile Mounting: The SO22B is ideal for countertop use in smaller cafes, while the SO27C serves as a high-impact wall-mounted or freestanding floor unit.
-

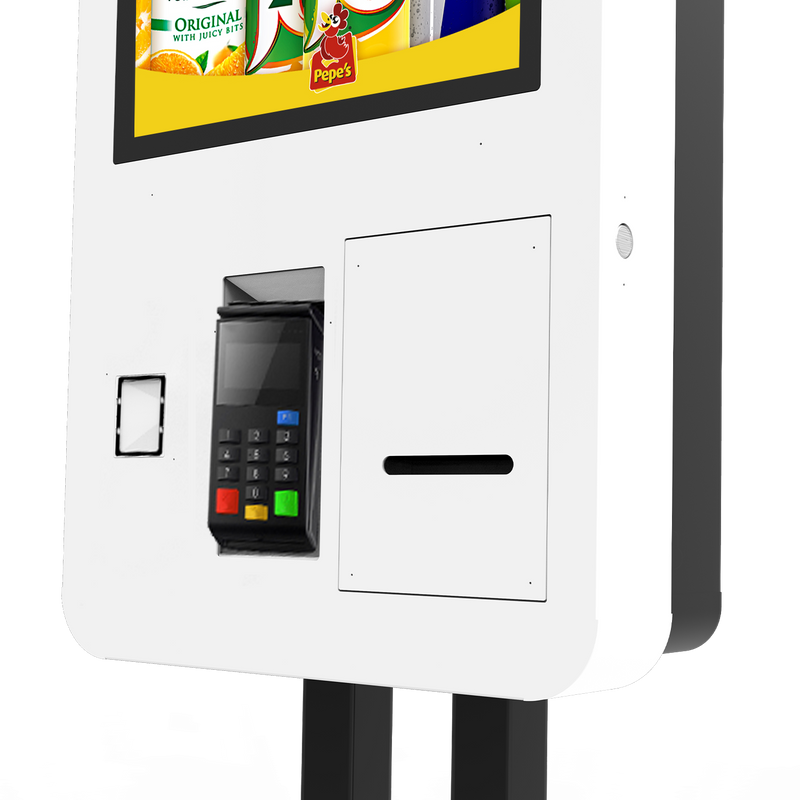

Payment Ready: Dedicated internal space allows for the seamless integration of third-party card payment terminals (NFC/Chip & PIN).

| Specification |
Details |
| Brand & Series Name |
Allsee PCAP Self-Service Ordering QSR Touch Screen Kiosk Series |
| Model Variants Supported |
SO22B (22"), SO27C / SO27A / SO27W (27") [Wall-Mounted, Countertop, or Floor Standing QSR Kiosk Series] |
| Colour Variants Available |
White / Black (Edge-to-edge tempered glass face with robust mild steel enclosure and lockable front maintenance access) |
| Display Sizes & Resolutions |
22 Inch: 1920 x 1080 Full HD | 27 Inch: 1920 x 1080 Full HD |
| Display Brightness & Panel Type |
450 cd/m² Commercial IPS Panel | 16:9 Aspect Ratio | 178°/178° Ultra-Wide Viewing Angle | 16.7M Display Colours | Direct LED Backlit |
| Touch Technology & Glass Treatment |
10-Point Projected Capacitive (PCAP) Multi-Touch | Minimum 6H thermally toughened safety glass | Anti-glare and oleophobic anti-fingerprint coating |
| System Architecture & Processing |
Android OS Variants: Quad-Core ARM Cortex Processor, 2GB RAM, 16GB eMMC Storage | Windows OS Variants: Intel Core i5 Processor, 8GB RAM, 256GB SSD Storage |
| Operating System Compatibility |
Android Models: Pre-installed Commercial Android OS | Windows Models: Supports Windows 7, 8, 10, or Linux (Compatible with third-party QSR and POS ordering platforms) |
| Integrated Peripherals & Scanners |
Integrated 80 mm Thermal Receipt Printer with Auto-Cutter (Easy-roll replacement) | Integrated 1D/2D QR Code & Barcode Scanner | Recessed Mounting Space for Payment Terminal / Card Reader (EFTPOS) |
| Peripheral Connections & Interfaces |
Internal Connectivity Locker: 1x HDMI, 1x VGA, 2x USB 3.0, 2x USB 2.0, 1x RJ45 Gigabit LAN, 3.5 mm Audio Output |
| Network & Wireless Connectivity |
Gigabit Ethernet (10/100/1000 Mbps LAN RJ45) | Dual-Band Wi-Fi (802.11 b/g/n/ac) | Bluetooth 4.0 |
| Integrated Hardware Features |
Built-in Dual Stereo Speakers (2x 5W) | Tool-free lockable front access door | Internal cable management system | Recessed scanner and touch glass for easy wiping |
| Active Display Area (W x H) |
22": 476.0 mm x 267.0 mm | 27": 597.6 mm x 336.1 mm |
| Unit Dimensions (W x H x D) |
22" Wall Mount: 348.0 mm x 752.0 mm x 123.0 mm | 27" Wall Mount: 428.0 mm x 892.0 mm x 132.0 mm | 27" Freestanding Floor Stand: 520.0 mm x 1750.0 mm x 450.0 mm |
| Net Unit Weight |
22": ~18.5 kg (Wall Mount) | 27": ~26.0 kg (Wall Mount) / ~48.0 kg (Freestanding with Stand) |
| Power Supply & Power Consumption |
AC 110-240V (50/60Hz) Mains Input | Average Operational Consumption: 22" (~55W) | 27" (~75W) | Standby: <0.5W |
| Hardware Reliability Ratings |
24/7 Commercial-Grade Continuous Operation | Operating Temperature: 0°C to 50°C |
| Mounting Configurations |
Flush Anti-Theft Wall Mount Bracket (Included as standard) | Optional Freestanding Floor Stand or Countertop Base |
| In the Box |
Self-Ordering Kiosk Display Unit, Integrated Thermal Receipt Printer, QR Code Scanner, Wall Mount Bracket, AC Power Cable, Remote Control, Lock Access Keys, Setup Guide |
| Warranty & Support |
3-Year Commercial Manufacturer Warranty with Lifetime UK-Based Technical Support |
