ACS ACR39U-H1

ACS ACR39U-H1

SKU ACR39U-H1ACSA
by ACS
€14.95 - €14.95
€14.95
€14.95 - €14.95
€14.95

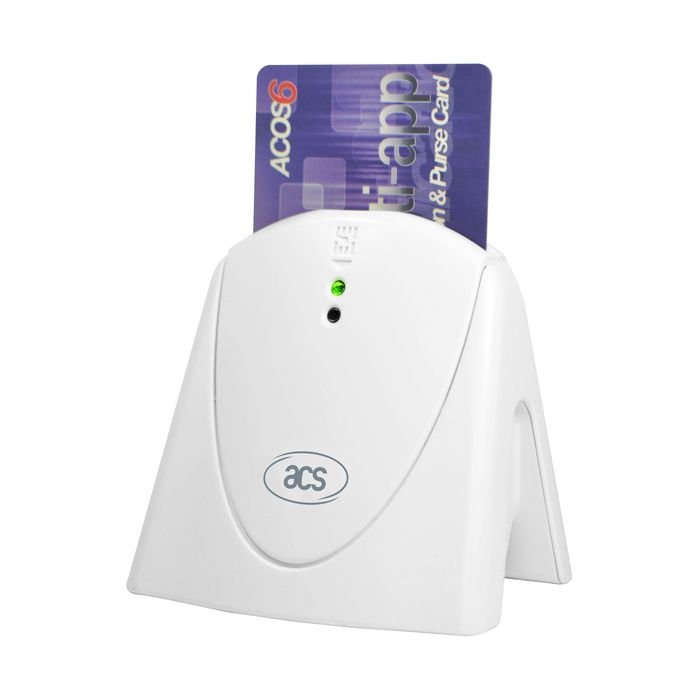

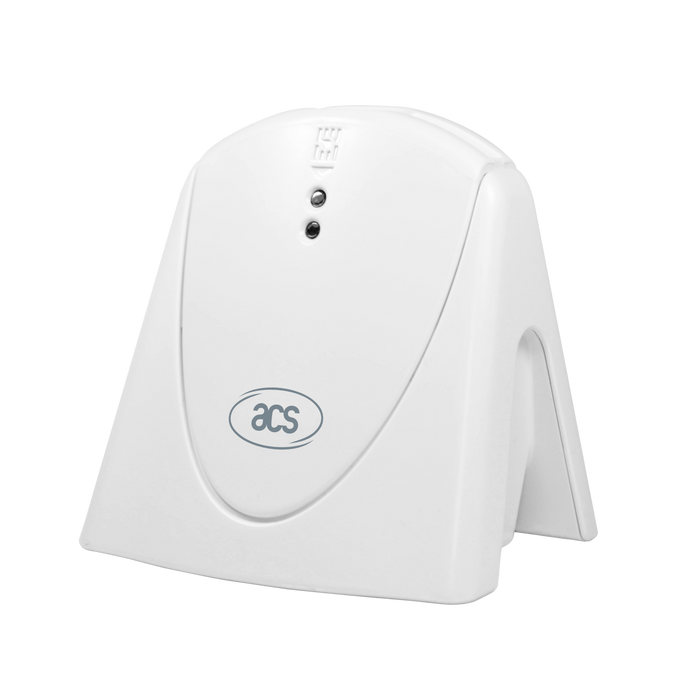

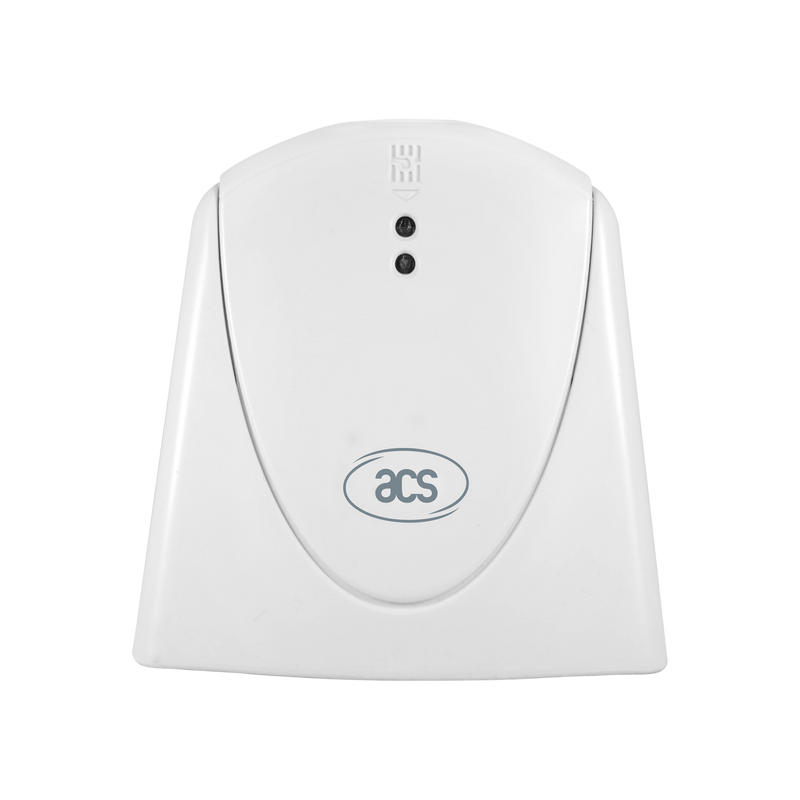

The ACS ACR39U-H1 (Manufacturer Part Number: ACR39U-H1ACSA) is a contact smart card reader with a weighted, upright vertical-insertion housing. It connects via a standard standard USB Type-A interface.

The vertical orientation allows for single-handed card entry and removal, making it a hardware tool for point-of-sale, healthcare, access control, and electronic government applications.

Features

  • Form Factor: Weighted vertical desk stand housing allowing upright card insertion.

  • Driver Standards: Compliant with CCID and PC/SC standards for native operating system integration without standard vendor driver software requirements.

  • Card Frameworks: Supports ISO 7816 Parts 1-4 Class A, B, and C (5V, 3V, 1.8V) cards, microprocessor cards using T=0 or T=1 protocols, and specific memory cards.

  • Credential Verification: Works directly with CAC (Common Access Card), PIV (Personal Identity Verification), and SIPRNET enterprise credentials.

System Compatibility

  • Windows: 7, 8, 8.1, 10, and 11

  • macOS: 10.x and newer

  • Linux & Solaris

  • Android: 3.1 and later (requires device USB host configuration)

Technical Specifications

Feature Details
Host Interface USB 2.0 Full Speed (Type-A Connector)
Card Orientation Upright Vertical Insertion Slot
Read/Write Speed Up to 600 Kbps
Clock Frequency 4.8 MHz
Cable Length 1.5 meters (fixed, non-detachable)
Card Cycle Rating Minimum 200,000 insertions
Dimensions 71.5 mm × 80.0 mm × 80.0 mm
Weight 174 grams
Certifications EMV Level 1 (Contact), PBOC, PC/SC, CCID, CE, FCC, RoHS, REACH, UKCA
