ACS ACR39T-A1 USB Smart Card Reader

ACS ACR39T-A1 USB Smart Card Reader

SKU ACR39T-A1
by ACS
€11.95 - €11.95
€11.95
€11.95 - €11.95
€11.95

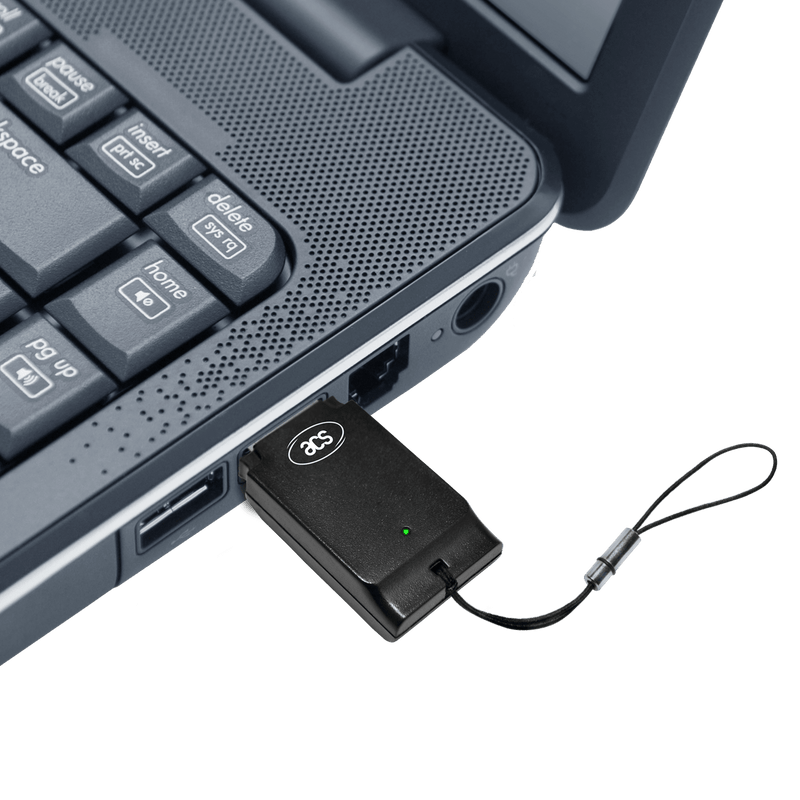

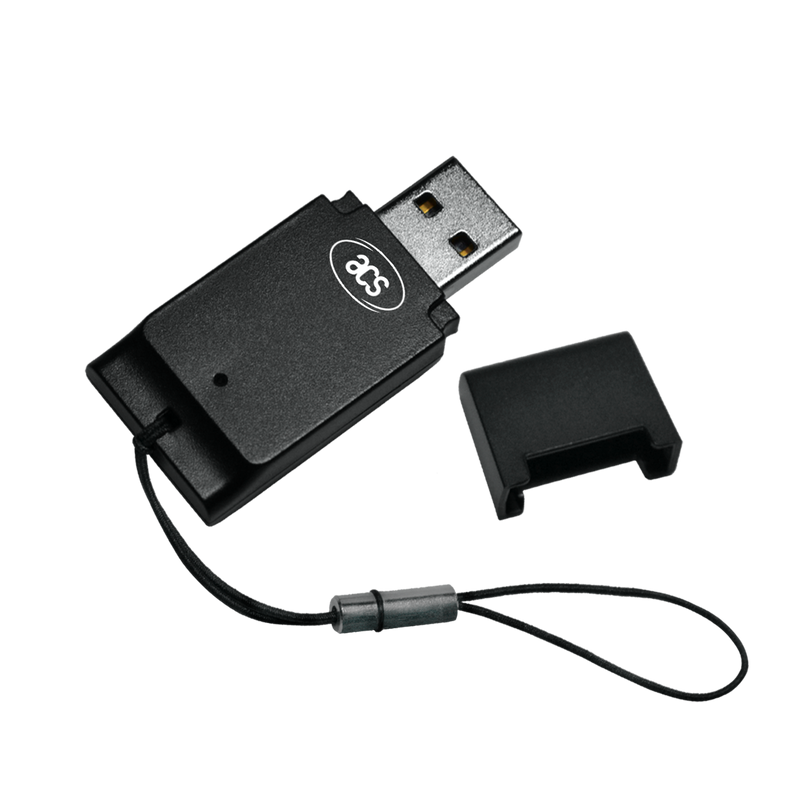

The ACS ACR39T-A1 is a contact smart card reader designed specifically for SIM-sized (2FF) smart cards. It features a standard USB Type-A host connector and a form factor similar to a standard USB flash drive.

This hardware interface reads and writes data for SIM-sized microprocessor credentials used in mobile communications, identity verification, and cryptographic network access.

Features

  • Card Form Factor: Single slot dedicated to standard SIM-sized cards (2FF format).

  • Driver Standards: Compliant with CCID and PC/SC standards for automatic system integration without manual driver installation.

  • Card Protocols: Supports ISO 7816 Class A, B, and C (5V, 3V, 1.8V) cards, microprocessor cards (T=0 and T=1 protocols), and specific memory cards.

  • Protection: Integrated short-circuit protection on all reader pins. Includes a removable protective cap for the USB connector.

System Compatibility

  • Windows: 7, 8, 8.1, 10, and 11

  • macOS: 10.x and newer

  • Linux & Solaris

  • Android: 3.1 and later (requires device USB host or OTG support)

Technical Specifications

Feature Details
Host Interface USB 2.0 Full Speed (Type-A Connector)
Slot Type 1 x SIM-Sized Card Slot (2FF)
Read/Write Speed 9.6 Kbps to 600 Kbps
Clock Frequency 4.80 MHz
Power Source Bus-powered via USB port (5V DC, max 50mA)
Card Insertion Rating Minimum 30,000 cycles
Dimensions 49.5 mm × 21.5 mm × 9.0 mm
Weight 8.5 grams
Certifications PC/SC, CCID, CE, FCC, VCCI, RoHS, REACH, UKCA, Microsoft WHQL
