Heavy-Duty Industrial Label Printer Made Simple

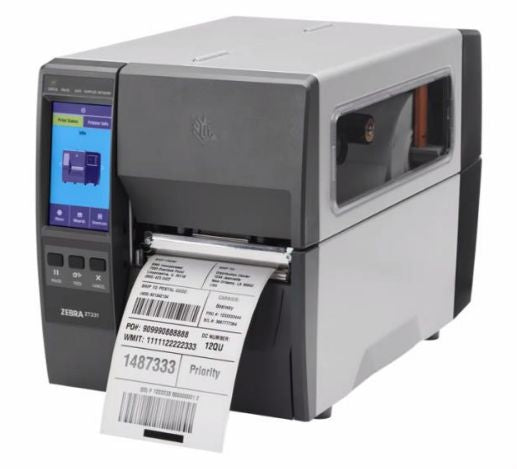

The Zebra ZT231 (ZT23142-T0E000FZ) is a powerful, durable label printer engineered for businesses that need high-volume printing without taking up too much room. Combining an industrial metal frame with a compact footprint, it is perfect for manufacturing sites, logistics depots, retail stockrooms, and healthcare settings.

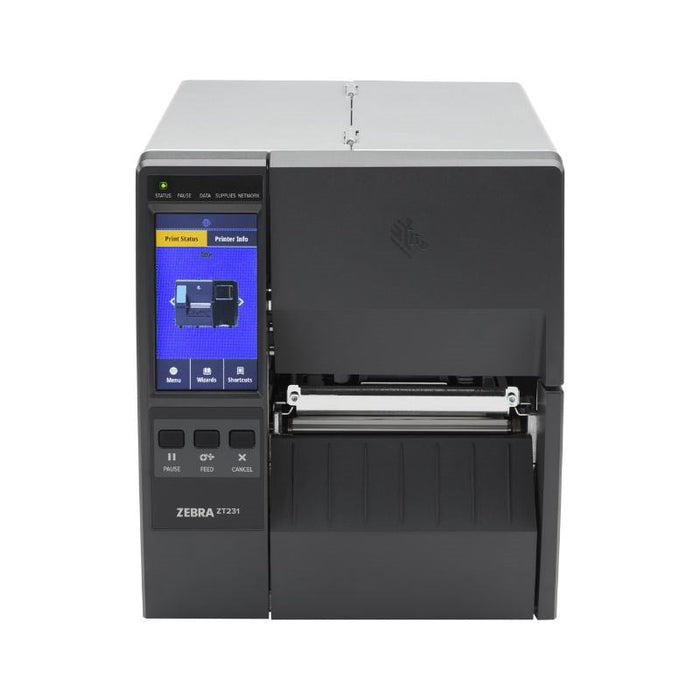

Equipped with a bright 4.3-inch colour touchscreen display, operating the ZT231 is as simple as using a smartphone. Staff can check printer status at a glance, view helpful setup wizards, and resolve issues quickly without technical training.
Key Features
-
Built for Heavy Use: Tough metal frame designed to handle daily printing in busy warehouses, factories, and shipping hubs.
-
Easy Colour Touchscreen: Large 4.3-inch colour screen makes checking printer status and changing settings simple for any worker.
-
Long-Lasting Printing: Thermal transfer technology uses ink ribbons to create sharp labels that do not fade, smudged, or rub off over time.
-
Network Ready: Comes with USB, Serial, Ethernet (LAN), and USB Host ports standard for simple connection to your office or factory network.
-
Space-Saving Lid: Bi-fold metal door folds upwards so the printer fits easily into tight workspaces and narrow shelves.
-
Fast Printing: Prints clear address and barcode labels at speeds up to 12 inches per second (305mm/s) to keep work moving quickly.
-

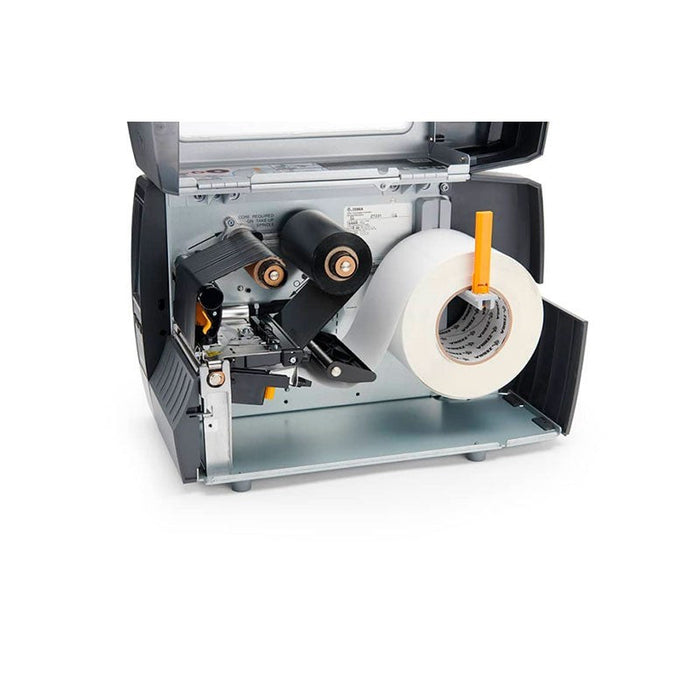

Simple Ribbon and Paper Loading: Large side-loading door lets staff swap label rolls and ribbons in seconds with minimal downtime.
Long-Lasting Labels & Complete Network Support
Unlike basic direct thermal printers, this thermal transfer model uses carbon ink ribbons to print crisp barcodes, text, and logos that resist heat, moisture, and chemical exposure. It is ideal for long-term box labeling, product tracking, asset tags, and outdoor shipping containers.
With built-in Ethernet, USB, and Serial ports, integrating the ZT231 into your existing computer setup or warehouse management software is fast and straightforward.
What is in the Box?
-
1 x Zebra ZT231 Thermal Transfer Printer (ZT23142-T0E000FZ)
-
1 x Official UK 3-Pin Power Cable
-
1 x User Setup & Safety Guide
| Specification |
Details |
| Product Series |
Zebra ZT231 Industrial Direct Thermal & Thermal Transfer Label Printer |
| Print Specifications & Resolutions |
Print Methods: Direct Thermal & Thermal Transfer | Resolution Options: 203 DPI (8 dots/mm) and 300 DPI (12 dots/mm) | Max. Print Speed: Up to 12 ips (305 mm/sec) at 203 DPI; Up to 8 ips (203 mm/sec) at 300 DPI | Max. Print Width: 104 mm (4.09 in.) | Max. Print Length: 3,988 mm (157 in.) at 203 DPI; 1,854 mm (73 in.) at 300 DPI |
| User Interface & Display Control |
4.3-inch full-colour resistive touch display panel with intuitive menu navigation, colour-coded status indicators, and multi-language support |
| Enclosure Design & Footprint |
All-metal frame with a durable metal media cover; compact bi-fold door configuration reduces operating space requirement by 35% compared to side-opening designs |
| Media Handling & Compatibility |
Media Types: Continuous, die-cut, notch, black mark | Media Width: 19.4 mm to 114 mm (0.75 in. to 4.50 in.) | Max. Media Roll OD: 203 mm (8.0 in.) on a 76 mm (3 in.) inner core; 152 mm (6.0 in.) on a 25.4 mm (1 in.) inner core | Media Thickness: 0.06 mm to 0.25 mm (0.0024 in. to 0.010 in.) | Loading System: Side-loading mechanism with color-coded paths |
| Ribbon Specifications |
Standard Ribbon Length: 450 m (1,476 ft) | Ribbon Width: 51 mm to 110 mm (2.00 in. to 4.33 in.) | Core ID: 25.4 mm (1 in.) | Ribbon Setup: Ink side out (outside wound); 3:1 media-to-ribbon roll ratio |
| Memory & Storage Capabilities |
256 MB SDRAM, 256 MB On-Board Linear Flash Memory |
| Standard Interfaces & Wireless Options |
Standard Connections: USB 2.0 High-Speed, USB Host Port, RS-232 Serial Port, 10/100 Ethernet (LAN), Bluetooth 4.1 / BLE | Optional Upgrades: Dual-Band 802.11ac Wi-Fi & Bluetooth 4.2 wireless module card, 802.11ac Wi-Fi card |
| Sensors & Diagnostics |
Transmissive gap sensor (fixed position) and movable reflective black mark sensor; print head element out detection sensor |
| Software & Security Suite |
Powered by Zebra Print DNA suite including Link-OS operating system, PrintSecure management, Profile Manager Enterprise, Zebra Setup Utilities, and Cloud Connect |
| Command Languages & Emulations |
ZPL II, EPL2, XML-enabled printing, APL (Alternate Programming Language) support |
| 1D Symbology Support |
Code 11, Code 39, Code 93, Code 128 (subsets A/B/C), ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, Interleaved 2-of-5, Industrial 2-of-5, Standard 2-of-5, Logmars, MSI, Codabar, Planet Code, Postnet, GS1 DataBar (RSS) |
| 2D & Postal Symbology Support |
PDF417, MicroPDF417, Code 49, Data Matrix, MaxiCode, QR Code, Aztec, MicroQR, GS1 DataBar Composite Codes, TLC-39 |
| Fonts & Graphic Formats |
7 bitmapped fonts, 1 smooth scalable font (CG Triumvirate Bold Condensed); supports user-downloadable fonts and graphics including custom logos and bitmap formats |
| Factory & Field Options |
Factory/Field Options: Guillotine Auto-Cutter, Label Peel/Peeler Mechanism (with liner take-up), UHF RFID Enginering Kit (factory or field installed, compliant with EPC Class 1 Gen 2 / ISO 18000-63) |
| Electrical & Energy Efficiency |
Auto-detectable internal power supply (100–240V AC, 50–60 Hz); ENERGY STAR Certified |
| Dimensions & Net Weight |
Dimensions: 432 mm (L) x 241 mm (W) x 279 mm (H) / 17.0 in. (L) x 9.5 in. (W) x 11.0 in. (H) | Weight: 9.1 kg (20 lbs) |
| Operating & Environmental Limits |
Operating Temp (Thermal Transfer): 5°C to 40°C | Operating Temp (Direct Thermal): 0°C to 40°C | Storage Temp: -40°C to 60°C | Relative Humidity: 20% to 85% non-condensing |
| Warranty |
1 Year Manufacturer Warranty |
