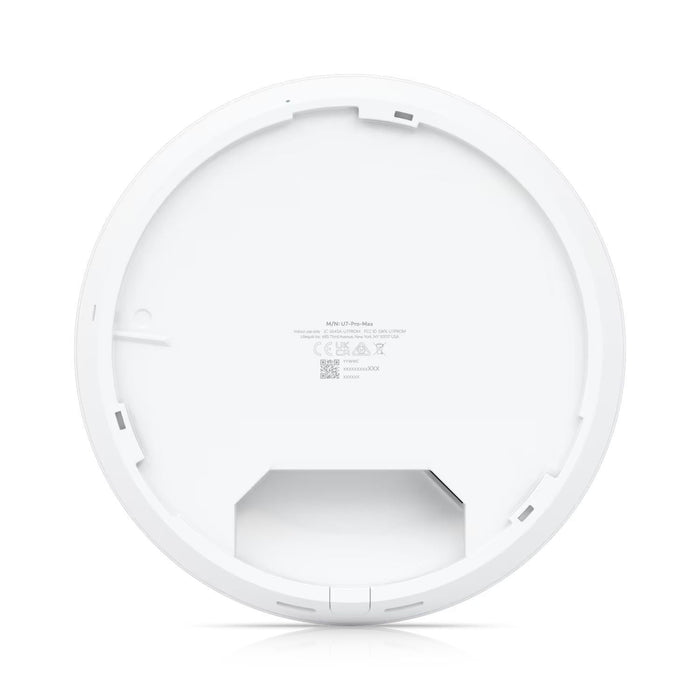

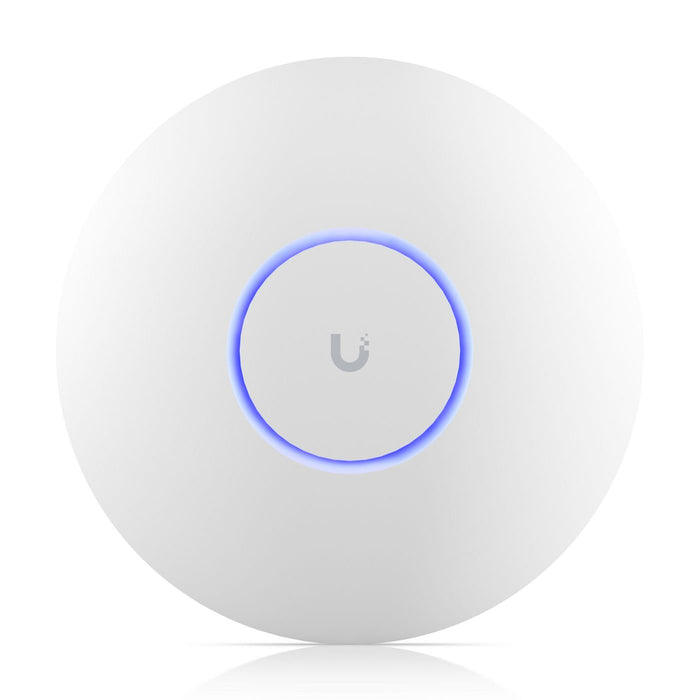

Ubiquiti UniFi U7 Pro Max Tri-Band Wi-Fi 7 Access Point (U7-PRO-MAX)

Ubiquiti UniFi U7 Pro Max Tri-Band Wi-Fi 7 Access Point (U7-PRO-MAX)

SKU U7-PRO-MAX
by Ubiquiti
Sold out
€286.95 - €286.95
€286.95
€286.95 - €286.95
€286.95

Product Overview The Ubiquiti U7-PRO-MAX is a flagship ceiling-mounted wireless access point engineered for maximum performance and wireless capacity in dense, high-demand environments. Harnessing advanced Wi-Fi 7 mechanics across the 2.4 GHz, 5 GHz, and 6 GHz radio bands, this premium unit offers 8 spatial streams and a massive aggregate data rate of up to 15 Gbps. A key feature is its dedicated hardware spectral scanning engine, which performs real-time environmental analysis to dynamically avoid channel interference. Equipped with a 2.5 Gbps Ethernet uplink and high-gain internal antennas, it comfortably covers up to 160 square metres while sustaining stable connections for over 500 client devices.

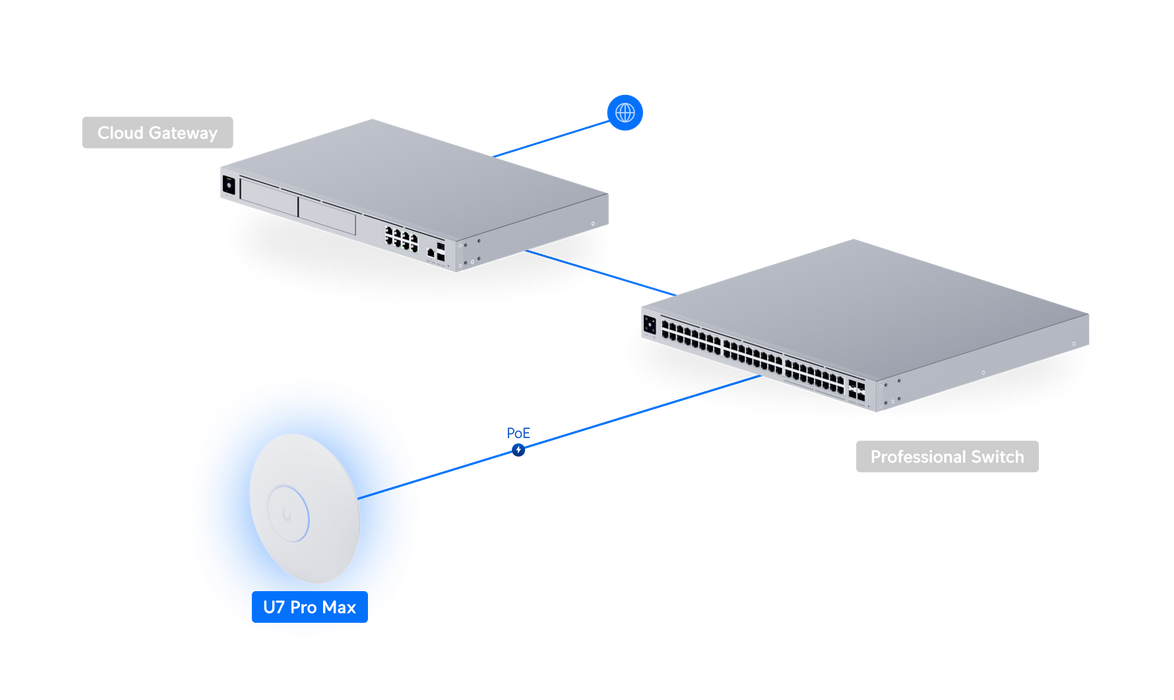

Please Note: This access point requires a PoE+ (Power over Ethernet) source, such as a PoE+ network switch or a separate 30W injection unit, to operate. A dedicated power supply unit is not packed inside the retail box.

Key Features

  • High-Capacity 8 Spatial Streams: Features a robust multi-user MIMO layout (4x4 on 5 GHz, 2x2 on 6 GHz, and 2x2 on 2.4 GHz) to handle ultra-dense client environments without performance drops.

  • Flagship Wi-Fi 7 Technology: Implements next-generation 802.11be protocols to deliver accelerated throughput speeds and significantly reduced packet latency across all connected endpoints.

  • Real-Time Spectral Analysis: Outfitted with a dedicated radio chip that continually maps the local wireless spectrum, automatically adjusting channels to sidestep surrounding signal congestion.

  • Multi-Gigabit Wired Uplink: Utilises a fast 2.5 GbE RJ45 connection port to eliminate backend infrastructure bottlenecks and support uncompromised wireless backhaul transfers.

  • Expansive Coverage Footprint: Designed to maintain a reliable, high-speed wireless canopy over a single open interior area up to 160 square metres (1,750 square feet).

  • Enterprise Client Management: Built to comfortably manage concurrent connections for more than 500 active user devices, making it ideal for large offices, auditoriums, and busy retail floors.

Technical Specifications

  • Manufacturer Part Code (MPN): U7-PRO-MAX

  • Dimensions: ⌀206 x 46 mm

  • Weight: 680 g

  • Enclosure Materials: Polycarbonate, Aluminium

  • Mounting Bracket Materials: Stainless Steel (SUS304), Galvanised Steel (SGCC)

  • Networking Interface: 1 x 1/2.5 Gbps RJ45 port

  • MIMO Configuration: 2.4 GHz (2x2) | 5 GHz (4x4) | 6 GHz (2x2)

  • Maximum Throughput Rates:

    • 2.4 GHz: 688 Mbps (40 MHz channel)

    • 5 GHz: 8.6 Gbps (240 MHz channel)

    • 6 GHz: 5.8 Gbps (320 MHz channel)

  • Antenna Gain: 2.4 GHz: 4 dBi | 5 GHz: 6 dBi | 6 GHz: 5.9 dBi

  • Power Method: 802.3at PoE+ (Supported range: 44–57V DC)

  • Max. Power Consumption: 25W

  • Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

  • Operating Temperature: -30 to 50°C

  • Management Requirement: UniFi Network application version 8.2.93 or later

What's in the Box?

  • 1 x Ubiquiti UniFi U7 Pro Max Access Point

  • 1 x Universal Ceiling/Wall Mounting Plate (Pro Mount)

  • 1 x Installation Screws, Nuts, and Wall Anchors Kit
