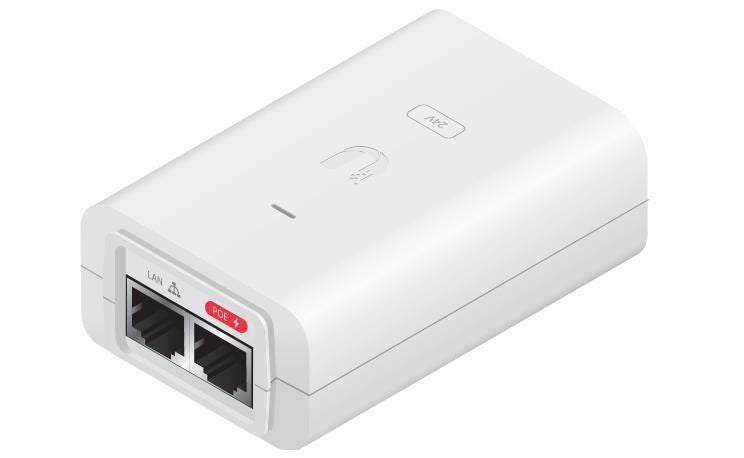

Ubiquiti 24V DC 12W Gigabit Passive PoE Injector - White (POE-24-12W-WH)

Ubiquiti 24V DC 12W Gigabit Passive PoE Injector - White (POE-24-12W-WH)

SKU POE-24-12W-WH
by Ubiquiti
€8.95 - €8.95
€8.95
€8.95 - €8.95
€8.95

The Ubiquiti POE-24-12W-WH is a compact external Power over Ethernet adapter finished in a clean white chassis. Supplying a continuous output of 24V DC at 0.5A for a maximum capacity of 12W, this injector is designed to run efficient, mid-draw 24V passive network endpoints. It is commonly deployed to support hardware such as the UniFi UAP-AC-Lite and UAP-AC-LR wireless access points, airMAX CPE client radios, and compatible outdoor security cameras. Outfitted with a pass-through Gigabit LAN port interface, it ensures your backhaul transmission lines suffer zero bandwidth restrictions. It also features a physical remote reset button that allows installers to power-cycle or factory-restore connected outdoor devices directly from the safety of the indoor communications cupboard.

Please Note: This adapter outputs passive 2-pair PoE and does not support standard active 802.3af/at switching protocols. Please verify the exact maximum power draw and voltage compliance of your specific device before installation.

Key Features

  • 12W Mid-Power Capacity: Supplies a stable 24V DC up to 0.5A, perfectly matched to the steady operational energy profiles of standard wireless access points and client bridges.

  • Unthrottled Gigabit Interface: Built with high-speed pass-through Data IN and PoE OUT RJ45 ports to maintain uncompromised wired network throughput across your backbone.

  • Integrated Hardware Reset: Features a physical manual reset button on the chassis, allowing you to trigger hardware reboots or factory resets remotely without climbing ladders to access the physical device.

  • Electrostatic Discharge Protection: Utilises a dedicated internal earth-grounding path inside the mains power cable alongside shielded sockets to bleed away static electricity build-up from outdoor copper cable runs.

  • Sub-Nanosecond Transient Shielding: Employs precise common and differential mode clamping circuitry to safely isolate unexpected voltage surges or lightning spikes in less than one nanosecond.

Technical Specifications

  • Manufacturer Part Code (MPN): POE-24-12W-WH

  • Product Type: Passive Power over Ethernet (PoE) Injector

  • Dimensions: 89 x 46 x 33 mm

  • Weight: 75 g

  • Output Voltage: 24V DC @ 0.5A

  • Power Capacity: 12W

  • Input Voltage: 100–240V AC @ 50/60Hz

  • Input Current: 0.3A @ 120VAC | 0.2A @ 240VAC

  • Interface Ports:

    • 1 x Gigabit Data IN (RJ45 Shielded Socket)

    • 1 x Gigabit Data & PoE OUT (RJ45 Shielded Socket)

  • PoE Pin Configuration: 2-Pair Powering; Pins 4, 5 (+) and Pins 7, 8 (-)

  • Remote Reset Capability: Yes (Integrated Reset Button)

  • AC Connector Interface: IEC-320 C6 (C5/C6 "Cloverleaf" style)

  • Clamping Protection: 11V Data / 60V Power

  • Max Surge Discharge: 1500A (8/20 µs) Power

  • Response Time: Less than 1 ns

  • Operating Temperature: 0 to 40°C

  • Certifications: CE, FCC, IC, UL, NDAA Compliant

What's in the Box?

  • 1 x Ubiquiti 24V 12W Gigabit Passive PoE Injector (White)

  • 1 x White UK Mains Power Cable (3-pin Grounded UK Plug)
