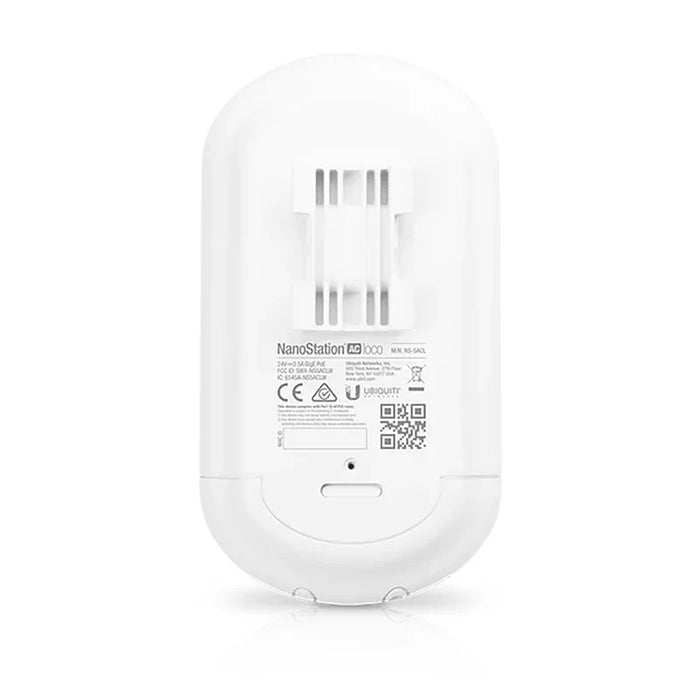

Ubiquiti airMAX NanoStation AC Loco 5GHz 13dBi Outdoor Wireless Bridge (LOCO5AC)

Ubiquiti airMAX NanoStation AC Loco 5GHz 13dBi Outdoor Wireless Bridge (LOCO5AC)

SKU LOCO5AC
by Ubiquiti
€47.95 - €47.95
€47.95
€47.95 - €47.95
€47.95

The Ubiquiti NanoStation AC Loco (LOCO5AC) is an ultra-compact, highly economical outdoor wireless bridge designed to establish high-throughput Point-to-Point (PtP) and Point-to-Multipoint (PtMP) network links. Operating on the clean 5GHz frequency band, this sleek Customer Premises Equipment (CPE) device delivers over 450 Mbps of real TCP/IP outdoor data throughput. It features an integrated 13dBi dual-linear polarised panel antenna engineered for excellent cross-polarity isolation. Driven by Ubiquiti's proprietary airMAX ac TDMA engine, the NanoStation AC Loco offers exceptional noise immunity and spectral efficiency, making it the ideal low-cost solution for short-to-medium range building-to-building network extensions.

Please Note: This device is powered via 24V passive Power over Ethernet (PoE) and does not include a PoE injector or power supply in the box. A compatible 24V DC passive PoE adapter (such as the POE-24-12W-G) must be purchased separately.

Key Features

  • Next-Generation airMAX ac Engine: Utilises hardware-timed scheduling to increase throughput scalability and reduce latency over outdoor wireless links.

  • Integrated 13dBi Antenna Array: Compact panel antenna design provides focused beam patterns to minimise adjacent channel interference in crowded RF environments.

  • Dedicated Management Wi-Fi Radio: Features a secondary, internal 2.4GHz Wi-Fi subsystem, allowing installers to instantly configure and tune the device via the UNMS/UISP mobile application without physical cable connections.

  • Ultra-Compact Weatherproof Chassis: Highly discrete, low-profile outdoor enclosure engineered to blend into building facades while enduring harsh winter conditions and prolonged UV exposure.

  • Gigabit Ethernet Interface: Equipped with a shielded 10/100/1000 Mbps RJ45 port to guarantee that high-speed wireless backhaul throughput is never restricted by physical connection limits.

Technical Specifications

  • Manufacturer Part Code (MPN): LOCO5AC (also known as NS-5ACL)

  • Product Type: Outdoor airMAX ac Wireless Bridge / CPE

  • Processor Architecture: Atheros MIPS 74Kc (560 MHz)

  • Memory & Storage: 64 MB DDR2

  • Networking Interface: 1 x 10/100/1000 Mbps RJ45 Port

  • Management Interface: Dedicated 2.4GHz Setup Wi-Fi Radio

  • Operating Frequency: 5150–5875 MHz (5GHz)

  • Antenna Gain: 13 dBi

  • Polarisation: Dual Linear

  • Channel Width Support: 10/20/30/40/50/60/80 MHz (PtP) | 10/20/30/40 MHz (PtMP)

  • Maximum Power Consumption: 8.5W

  • Power Method: 2-Pair Passive PoE (Pins 4, 5+; 7, 8 Return)

  • Supported Power Input: 24V DC Passive PoE (Injector Not Included)

  • ESD/EMP Protection: Air and Contact: ± 24kV

  • Operating Temperature: -40°C to 70°C

  • Certifications: CE, FCC, IC, RoHS, NDAA Compliant

What's in the Box?

  • 1 x Ubiquiti airMAX NanoStation AC Loco Device

  • 1 x Pole-Mounting Bracket Interlock

  • 2 x Heavy-Duty Zip Ties
