Topaz T-LBK462-KAHSB-R KioskGem Backlit LCD 1x5 HID USB - Pos-Hardware Ltd

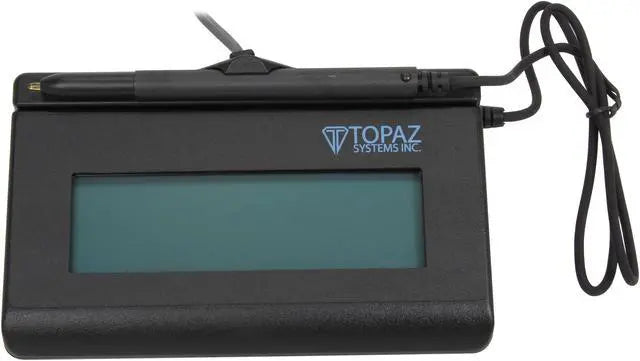

Topaz KioskGem LCD 1x5 HID USB Backlit Signature Pad (T-LBK462-KAHSB-R)

SKU T-LBK462-KAHSB-R
by Topaz
€546.95 - €546.95
€546.95
€546.95 - €546.95
€546.95

The Topaz T-LBK462-KAHSB-R is the high-performance "SignatureGem" version of the Kiosk series, built to provide maximum longevity and security. Designed for fixed integration, this unit mounts from the underside of a housing with no exposed fasteners, making it virtually tamper-proof. This "HID USB" model offers plug-and-play simplicity, ensuring high-speed data transfer and easy installation within modern Windows-based kiosk systems.

Key Features & Benefits

  • Rugged Tempered Glass Surface: Unlike standard membrane touchpads, this model features a durable glass signing area rated for over 2 million signatures. It is highly resistant to scratches and designed for heavy-duty public use.

  • Interactive Backlit LCD Display: The transflective screen displays "electronic ink" directly under the pen tip in real-time, providing essential visual feedback for the user in any lighting condition.

  • Specialised Kiosk Mounting: Engineered for deep integration, the unit bolts to an enclosure from the rear. This ensures a clean, flush-mount finish with no visible screws or cables for enhanced physical security.

  • High-Security Steel Tether: Features a high-stress, 160 lb (72 kg) rated steel cable tether to ensure the stylus remains permanently attached to the kiosk, preventing loss, damage, or theft.

  • Plug-and-Play HID USB Interface: Operates via a standard high-speed USB connection, providing both power and reliable data communication for rapid transaction processing.

  • Forensic-Quality Biometrics: Captures the unique pressure, speed, and timing of every signature, meeting the highest UK legal and security standards for digital authentication.

Feature Details
Model Number T-LBK462-KAHSB-R
Interface USB HID (High-Speed)
Display Type Transflective Backlit LCD
Sensor Type Active Electromagnetic (Tempered Glass)
Pen Type Active Energised Stylus (Battery-less)
Security Tether High-Stress Steel Cable (160 lb rated)
Dimensions 152mm x 97mm x 18mm
Signing Area 112mm x 33mm



Ideal for High-Traffic UK Kiosk Applications

The KioskGem HID USB model is the industry standard for environments where hardware reliability and physical security are paramount. It is widely utilised across the UK in:

  • Self-Service Check-in: Ideal for hospitals, hotels, and airports requiring unattended guest or patient registration.

  • Visitor Management Systems: For unmanned corporate receptions and high-security government building access.

  • Postal & Logistics Terminals: Integrated into self-service parcel lockers and shipping collection points.

  • Retail Self-Checkout: Used for credit applications, age verification, or loyalty programme enrolment at automated terminals.

Bulk Procurement & Project Quotes Are you a kiosk manufacturer or outfitting a large-scale public rollout? We offer competitive tiered pricing for volume business orders. For orders of 10 units or more, please email our sales department for a bespoke quote.
