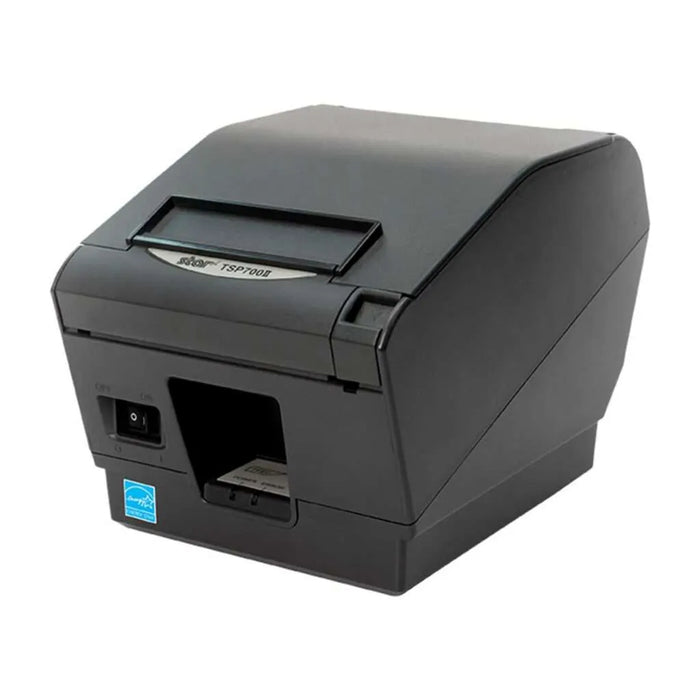

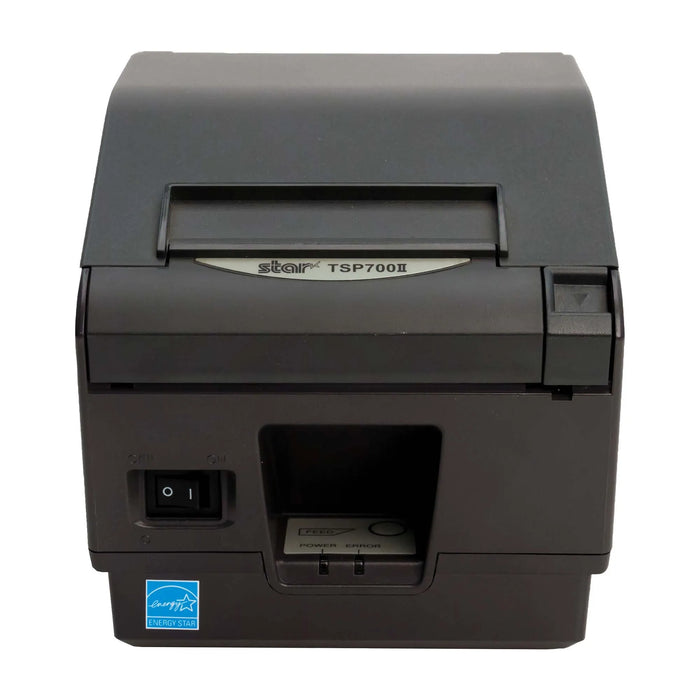

Star Micronics TSP743II Series: High-Speed Thermal Receipt, Label & Ticket Printers
he Star Micronics TSP743II (also known as the TSP700II series) is the industry-leading, multi-functional thermal printer designed for high-volume environments. Whether you require a robust EPOS receipt printer, a dedicated barcode label printer, or a high-speed ticketing solution, the TSP743II delivers unrivalled reliability and class-leading print speeds of 250mm/second.
Combining a splash-proof design with versatile mounting options, this series is the "gold standard" for retail, hospitality, and kiosk integration across the UK.
Key Performance Features
-
Market-Leading Speed: Capable of printing 48 receipts per minute (250mm/s), significantly reducing customer queuing times.
-
Advanced Media Support: Handles paper thicknesses up to 0.15mm, making it the ideal choice for high-quality event tickets and durable labels.
-
High-Resolution Output: Features a "Double Resolution Mode" for crisp 406 times 203dpi graphics, perfect for complex logos and 2D barcodes.
-
Cloud-Ready Connectivity: The HI X Interface models support Star CloudPRNT™, allowing for direct printing from web servers—essential for modern Click & Collect and online food delivery platforms
Technical Specifications:
| Feature | Specification |
| Print Method | Direct Thermal |
| Print Speed (Monochrome) | 250mm/second |
| Print Speed (Colour) | N/A (Direct Thermal Only) |
| Resolution | 203 dpi (Standard) / 406 x 203 dpi (High Res Mode) |
| Paper Width | 80mm (Standard), 82.5mm, 58mm (via guide) |
| Paper Thickness | 0.065mm to 0.15mm |
| Autocutter | Heavy-duty Guillotine (Full or Partial Cut) |
| Reliability | 60 Million Lines (MCBF) / 2 Million Cuts |
| Emulation | Star Line Mode, ESC/POS™ |
| Dimensions | 147(W) x 213(D) x 148(H) mm |
Model Configuration & Part Numbers
Select the appropriate interface and colourway for your existing Point of Sale architecture. Note that 24VDC models require the Star PS60 power supply (available separately) unless specified.
| Part Number | Model | Interface | Colour | Power Requirements |
| 39442400 | TSP743II-24 | No Interface | White | 24VDC (Requires PS60) |
| 39442410 | TSP743II-24 | No Interface | Charcoal Grey | 24VDC (Requires PS60) |
| 39442300 | TSP743IID-24 | Serial (RS232C) | White | 24VDC (Requires PS60) |
| 39442310 | TSP743IID-24 | Serial (RS232C) | Charcoal Grey | 24VDC (Requires PS60) |
| 39442501 | TSP743IIU-24 | USB | White | 24VDC (Requires PS60) |
| 39442511 | TSP743IIU-24 | USB | Charcoal Grey | 24VDC (Requires PS60) |
| 99257300 | TSP743II HI X | HI X (CloudPRNT) | Charcoal Grey | UK/EU PSU Included |
What's in the Box?
When you purchase a Star TSP743II series printer, the package includes:
-
Star TSP743II Thermal Printer (Specified Model & Colour)
-
Interface Cover (Protects cables and connections)
-
Wall Mount Kit (For vertical installation)
-
58mm Paper Guide (For printing on narrower rolls)
-
Power Switch Cover (Prevents accidental power-downs)
-
Start-Up Paper Roll
-
Set-Up Guide / Instruction Manual
Note on Power Supplies: > * For the HI X (99257300) model, a UK/EU Power Supply Unit is included in the box.
For all other 24VDC models, the Star PS60 Power Supply is sold separately. Please ensure you add this to your order if you do not have an existing 24VDC power source.
Professional Applications
Hospitality & Kitchen Printing
With a splash-proof design and internal drip-traps, the TSP743II is the gold standard for kitchen order printing. Its rugged build ensures it withstands the heat and humidity of busy UK commercial kitchens.
Retail & EPOS
Featuring a large 100mm diameter paper roll capacity, the TSP743II requires 60% less maintenance than standard 80mm printers. It integrates seamlessly with Windows, Linux, and macOS systems.
Ticketing & Lottery
The high-tension paper feed and integrated black mark sensor allow for precision printing on card stock (0.15mm), making it perfect for cinema tickets, sports stadium entries, and lottery vouchers.
