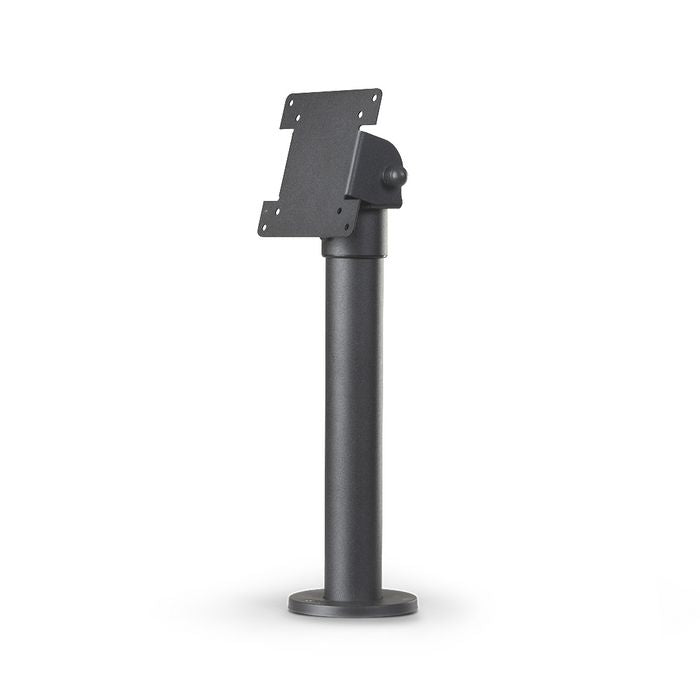

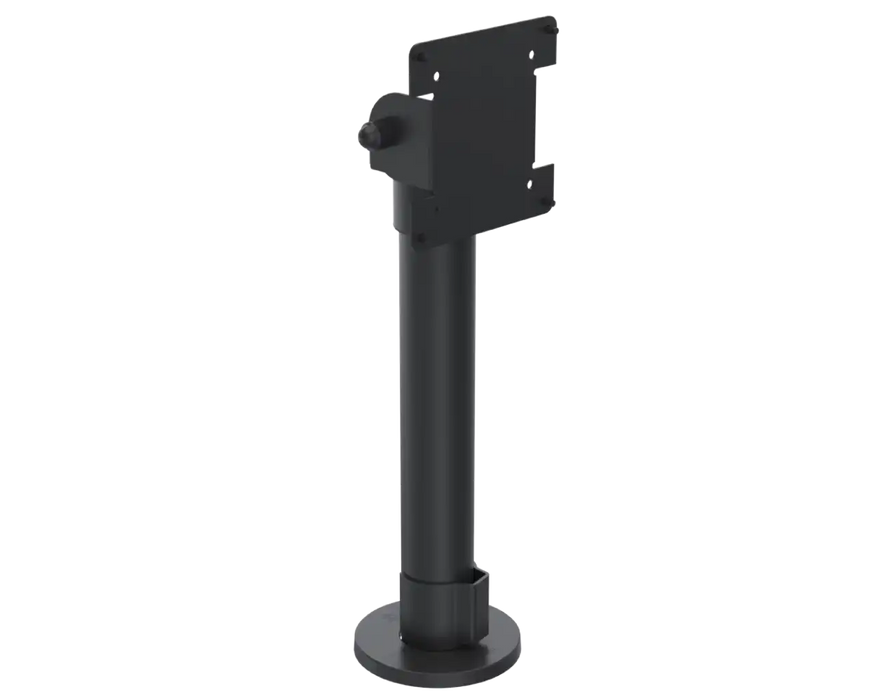

SpacePole Classic Essentials VESA Top Screen Pole Mount

Clearing valuable space at the checkout counter while keeping essential equipment securely positioned is a priority for any modern till area. The SpacePole SPV1102-FX-02 is a premium, high-durability mounting system designed to lift your primary touch monitor off the counter surface. This heavy-duty metal mounting solution is ideal for busy UK supermarkets, high-street retail stores, convenience shops, and hospitality settings.

Dedicated Top Mount for Modular Peripheral Expansion

The core structural benefit of this top screen mount configuration is that it attaches cleanly to the upper section of a standard 300mm SpacePole. By fixing the display mount to the top of the column, it leaves the entire lower section of the pole open for expanding your point-of-sale layout. This allows you to smoothly attach secondary peripheral swing arms for receipt printers, payment terminal cradles, or barcode scanners to a single post, completely removing clutter from tight counter setups.

Fluid Ergonomic Tilting and Smooth Screen Rotation

To accommodate checkout staff of varying heights and prevent screen glare from indoor store lighting, the mounting bracket features robust ergonomic adjustment tools. The integrated DuraTilt joint allows the display to tilt smoothly between +10 degrees and -70 degrees, giving operators their ideal viewing angle. The entire unit can also rotate up to 310 degrees on the base pole, allowing staff to easily turn the screen around for customer confirmation or shared manager viewing.

Universal VESA Layout and Robust Cable Routing

The solid metal mounting plate features industry-standard VESA 75mm x 75mm and 100mm x 100mm hole patterns, rendering it fully compatible with a wide selection of touchscreen displays ranging from 11-inch up to 27-inch sizes. To protect your equipment from accidental damage and network disconnects, the setup utilizes both internal and external cable routing tracks, completely concealing data and power wires from view inside the 44.5mm diameter pole.

Heavy-Duty Build and Secure Counter Installation

Built to handle heavy checkout use, the frame is manufactured from high-grade structural metal and hard-wearing Delrin components, supporting monitor weights of up to 10kg. The base features a standard 97mm flange footprint that bolts firmly into your counter layout, complete with an included lock ring for added structural support. The smooth, black powder-coated surface is simple to wipe clean, helping your team maintain high hygiene standards at the front counter.

Technical Specifications

• Product Type: POS VESA Top Screen Pole Mount

• Product Component: Top mount assembly on a 300mm support pole

• VESA Compatibility: Standard 75mm x 75mm and 100mm x 100mm configurations

• Supported Screen Sizes: 11-inch up to 27-inch touchscreen displays

• Weight Capacity: Designed for displays weighing between 1kg and 10kg

• Adjustments: +10° to -70° tilt range with up to 310° horizontal rotation

• Base Footprint: Standard flange base (97mm diameter) / Pole diameter: 44.5mm (SP2)

• Cable Protection: Internal cable pathways and external management clips included

• Colour Finish: Professional matt black (02)

• Manufacturer Warranty: 5-Year warranty on metal structural parts

• Product Code: SPV1102-FX-02
