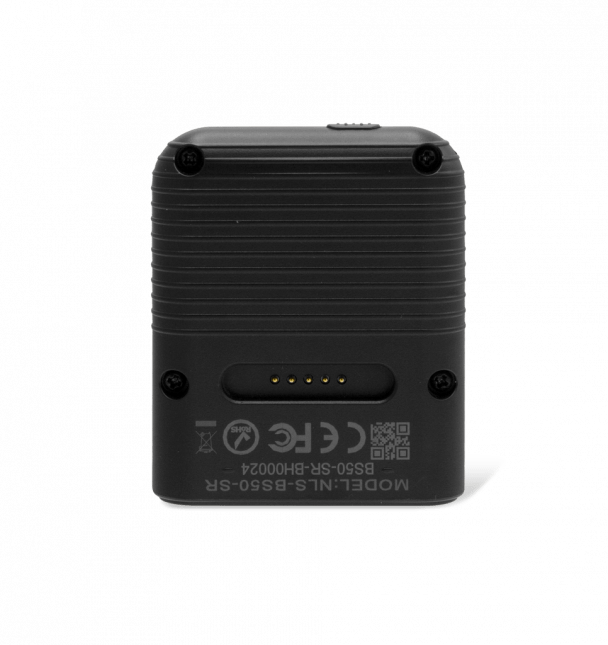

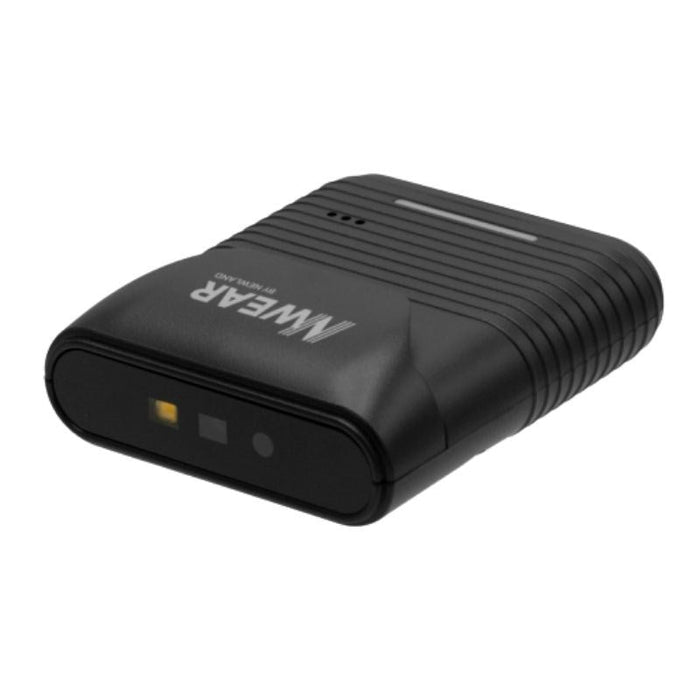

Newland WD2 Wearable 2D Megapixel Scanner (Hands-Free Efficiency)
The Newland WD2 Wearable Scanner is a revolutionary, lightweight device designed to boost productivity in warehousing, logistics, and retail picking by enabling true hands-free operation. Weighing just 43 grams and securely mounted to an electronic hand strap, the WD2 allows workers to scan items instantly without needing to put down or pick up a device, maximizing efficiency.
Featuring Megapixel 2D scanning technology, the WD2 captures virtually all 1D and 2D barcodes with outstanding speed and accuracy.
Key Features for Ultimate Productivity
-

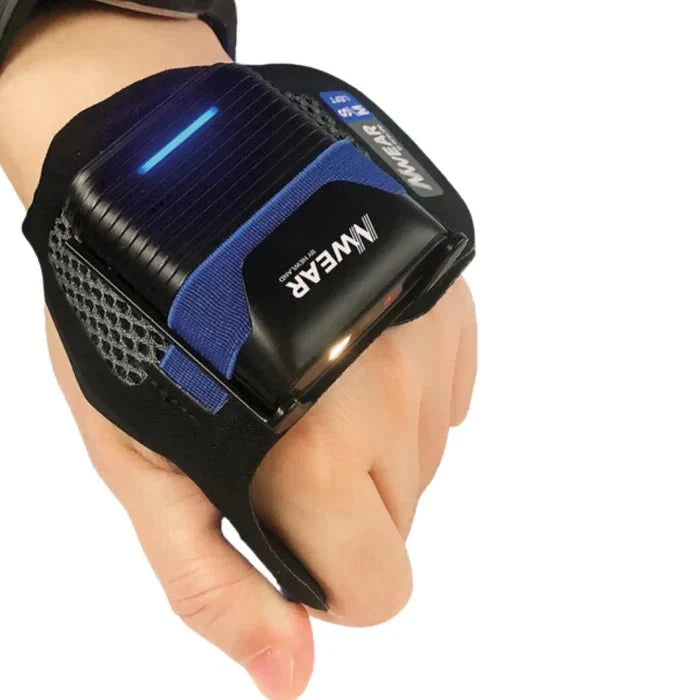

Hands-Free Operation: The scanner connects to an electronic hand strap with an integrated thumb-activated trigger, freeing both hands for picking, packing, and material handling.
-
Ultralight & Ergonomic: At only 43g, the WD2 eliminates hand fatigue during long shifts. The hand strap is available in two sizes (S/M and L) and supports both right and left-handed operators, fitting comfortably over gloves.
-
Megapixel Scanning: Equipped with a 1280x800 CMOS Imager, it provides superior performance on high-density, distorted, or poorly printed codes across all 1D and 2D symbologies.
-
Precision Aiming (Acuscan): Allows workers to confidently focus the scanner on the exact code they need, even when codes are grouped closely together, minimizing errors.
-
Strong Wireless Range: Uses Bluetooth 5.0 technology with anti-interference, offering a reliable wireless range of up to 80 meters in open space.
-
Rugged Reliability: Built to withstand demanding environments with an IP65 sealing (dust and water resistant) and a robust 1.5-meter drop resistance.
-
All-Day Power: The 670 mAh battery provides up to 10 hours of continuous operation and recharges fully in less than 2 hours.
| Part Number (Example) | Range Type | Aimer Type | Ideal For |
| WD2-BS50-SR | Standard Range | Red Crosshair Laser | Precision scanning of small, high-density, or closely grouped barcodes (e.g., small retail items). |
| WD2-BS50-MR | Mid Range | Red Dot Laser | Scanning larger, isolated barcodes from greater distances (e.g., pallets, high shelving in a warehouse). |
| Accessory | Part Number (Example) | Description |
| Charging Cradle | CD50 | 2-Slot Charging Station. Cradles can be linked ("daisy-chained") together to form multi-dock stations (up to 10 bays) using a single power supply. |
| Hand Strap | EHSV2-RH/LH-S/M | Electronic Hand Strap (with trigger) for Right Hand or Left Hand, available in Small/Medium and Large sizes (often sold in 5-packs). |
| USB-C Cable | CBLMP100U | Magnetic contact connector to USB-A cable (1m) for charging/data. |
| Power Supply | ADP710 / ADP19032 | Fast Charging Power Adapter (PSU) required for powering multi-cradle stations. |
| Warranty | SVCWD2-3Y / SVCWD2-5Y | Comprehensive Coverage Service Extension (3-Year or 5-Year options). |
