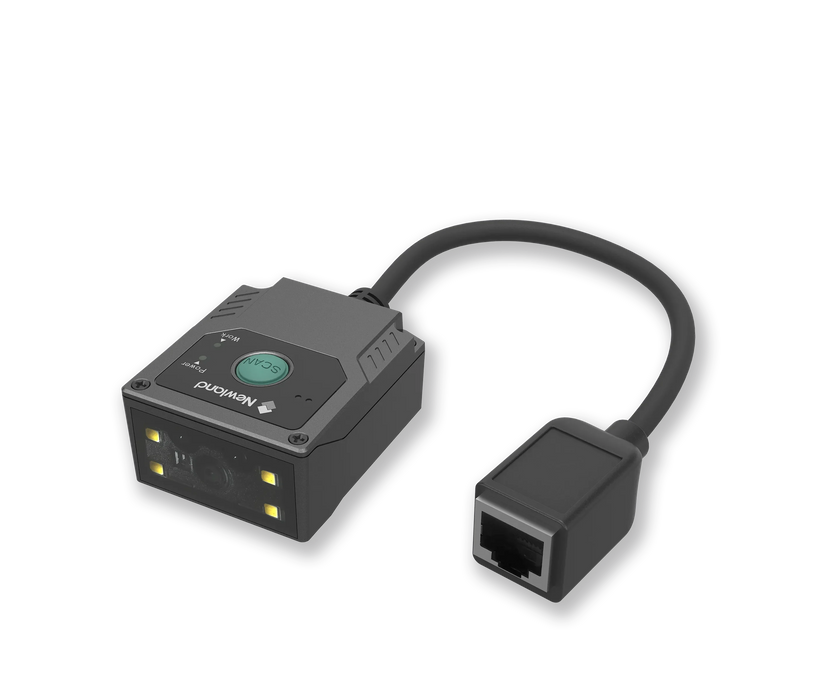

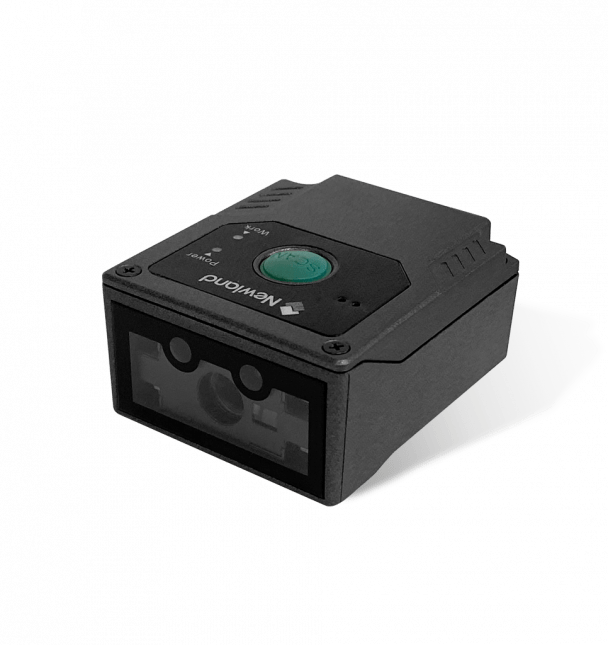

Newland FM430 Barracuda 2D Mega Pixel Fixed Mounted Reader, Green Laser

Newland FM430 Barracuda 2D Mega Pixel Fixed Mounted Reader, Green Laser

SKU NLS-FM430-U
by Newland
€143.95 - €175.95
€143.95
€143.95 - €175.95
€143.95

The Newland FM430 Barracuda is a high-performance, compact, fixed-mount scanner built for seamless integration into kiosks, self-service terminals, production lines, and access control points. Featuring a cutting-edge Megapixel camera, the FM430 is designed to aggressively and reliably capture virtually any 1D or complex 2D barcode, including those displayed on mobile phone screens.

Key Features for Optimal Performance

  • First Megapixel Scanner: High-resolution sensor captures even damaged, low-contrast, or densely packed codes with speed and ease.

  • Superior Motion Tolerance: Equipped with an exceptional 2.5m/s motion tolerance, it can rapidly and reliably capture fast-moving items.

  • Quick-Switch Mode: Allows users to instantly toggle between "Normal" mode (optimized for paper) and a specific mode tailored for reading barcodes from bright mobile phone screens.

  • Comfortable Illumination: Features soft, white LED illumination and a 10° angled design for comfort.

  • Infrared (IR) Trigger: The built-in sensor detects the presence of a barcode instantly, ensuring speedy, first-time reads.

  • Durability: Built to last with IP52 rated sealing and 1.2m drop resistance to concrete.

Part Number Aimer Type Interface Cable Length Power/Accessories
NLS-FM430-U Green LED USB 2 Meter USB Powered (Extension Cable)
NLS-FM430-00 Green LED USB 50 cm USB Powered (Direct Cable)
NLS-FM430-RC Green LED RS-232 2 Meter Multi-plug adapter included (Extension Cable)
NLS-FM430L-U Red Laser USB 2 Meter USB Powered (Extension Cable)
NLS-FM430L-00 Red Laser USB 50 cm USB Powered (Direct Cable)
NLS-FM430L-RC Red Laser RS-232 2 Meter Multi-plug adapter included (Extension Cable)



  • Aimer Type:

    • Standard (No L): Uses a Green LED aimer (a dot) which is less intrusive, often preferred in consumer-facing environments.

    • "L" Models: Use a visible Red Laser aimer (crosshair or lines), which is easier for users to spot and aim in bright lighting or complex applications.

  • Cable Length:

    • "00" Models: Feature a short 50 cm cable, ideal for mounting directly inside a compact kiosk or terminal body where the host PC is very close.

    • "U" / "RC" Models: Feature a long 2 meter extension cable for applications where the host PC is further away, offering maximum installation flexibility.

  • Interface/Power:

    • USB ("U" / "00"): Power is supplied directly via the USB connection.

    • RS-232 ("RC"): Requires external power, which is conveniently included via the multi-plug adapter.
