BIXOLON XD5-40dOEWK/BEG 4-inch Direct Thermal Label Printer | Triple Interface & LCD

BIXOLON XD5-40dOEWK/BEG 4-inch Direct Thermal Label Printer | Triple Interface & LCD

SKU XD5-40dOEWK/BEG
by Bixolon
€388.95 - €388.95
€388.95
€388.95 - €388.95
€388.95

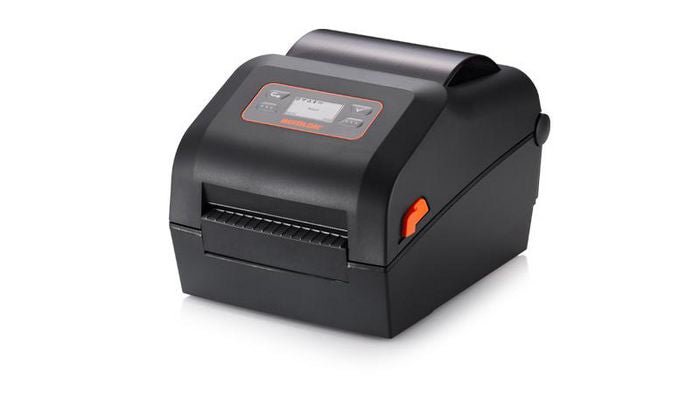

The BIXOLON XD5-40dOEWK/BEG is a high-performance, mid-level direct thermal desktop printer featuring a built-in LCD for intuitive visual configuration. This "OEWK" variant is the most comprehensive in the XD5 series, offering a professional set of wired and wireless interfaces including USB, Serial, Ethernet, and Wi-Fi.

Designed for efficiency in UK manufacturing, logistics, and retail, it delivers industry-leading print speeds of up to 178mm/sec while maintaining crisp 203 dpi resolution.

Key Features

  • Advanced Visual Interface: Features a 200 x 100 pixel FSTN LCD display with intuitive menu buttons for easier setup, real-time status alerts, and standalone management.

  • Comprehensive Connectivity: Comes standard with an all-in-one interface suite: USB 2.0, USB Host, RS232 (Serial), Ethernet (LAN), and Wi-Fi (802.11a/b/g/n).

  • High-Speed Output: Processes complex labelling tasks rapidly at speeds up to 178mm/sec (7 ips).

  • Twin Function™: Use the built-in USB Host port to easily duplicate existing printer settings and data across an entire estate of printers without a PC.

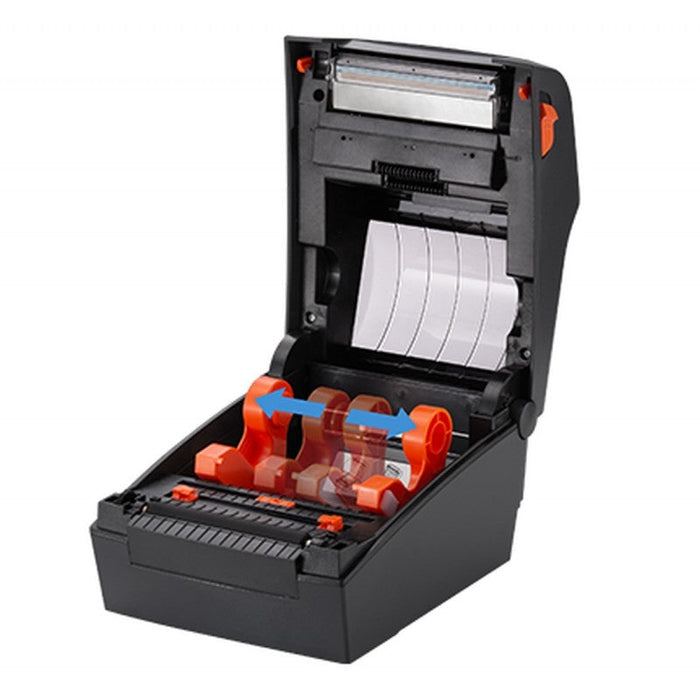

  • Smart Media Detection™: Automatically identifies various media formats (Gap, Black Mark, Continuous, or Notch) to ensure accurate printing and minimal setup time.

  • Flexible Emulation: Fully compatible with market-leading programming languages including SLCS, BPL-Z™ (ZPL II), and BPL-E™ (EPL).

Feature Specification
Manufacturer Part Code XD5-40dOEWK/BEG
Print Method Direct Thermal
Resolution 203 dpi (8 dots/mm)
Max Print Speed 178 mm/sec
Max Print Width 108 mm
Media Width Range 15 mm to 118 mm
Standard Memory 64 MB SDRAM / 128 MB Flash
Display Type FSTN LCD (200 x 100 pixels)
Dimensions (WxDxH) 194mm x 248mm x 169mm
Weight 1.89 kg



Software & Support

  • Universal Compatibility: Fully compatible with Microsoft Windows, Apple macOS, Linux, Android, and iOS.

  • Professional Design: Includes BarTender® UltraLite for BIXOLON and Label Artist-II™ for bespoke barcode and label creation.

  • Fleet Management: Compatible with BIXOLON’s XPM™ web-based printer profile management software.

What’s in the Box?

  • BIXOLON XD5-40dOEWK Printer (Black).

  • External Power Supply Unit & UK Power Cord.

  • USB Type B Cable.

  • Quick Installation Guide.
