BIXOLON XD5-40dOEK 4-inch Direct Thermal Label Printer | USB, Serial, Ethernet & LCD

BIXOLON XD5-40dOEK 4-inch Direct Thermal Label Printer | USB, Serial, Ethernet & LCD

SKU XD5-40dOEK
by Bixolon
€323.95 - €323.95
€323.95
€323.95 - €323.95
€323.95

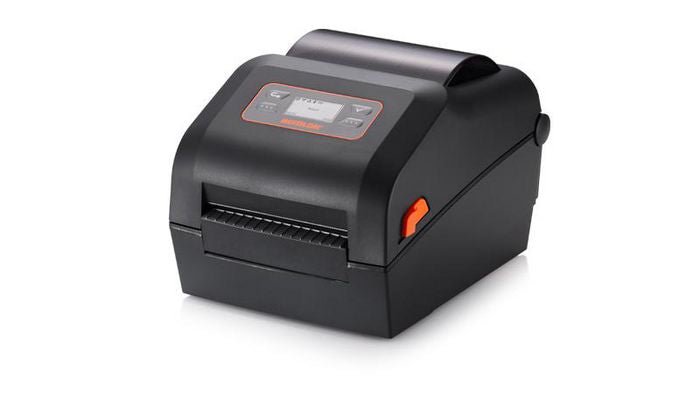

The BIXOLON XD5-40dOEK is a mid-level, high-performance desktop label printer designed for professional environments that require speed and precision. As part of the advanced XD5 series, this specific variant features a built-in LCD display for intuitive visual configuration and real-time status updates.

Equipped with a comprehensive set of wired interfaces, it is an ideal solution for UK manufacturing, logistics, retail, and healthcare applications.

Key Features

  • Enhanced User Interface: Features a 200 x 100 pixel FSTN LCD display with intuitive menu buttons for easier setup and management without a PC.

  • Superior Speed: Delivers rapid direct thermal printing at speeds of up to 178mm/sec (7 ips), ensuring high efficiency for large labelling tasks.

  • Comprehensive Connectivity: Comes standard with a "Triple Interface" setup including USB 2.0, USB Host, RS232 (Serial), and Ethernet (LAN).

  • Twin Function™: The USB Host port allows for the easy duplication of printer settings and data across an entire estate of printers, simplifying large-scale deployments.

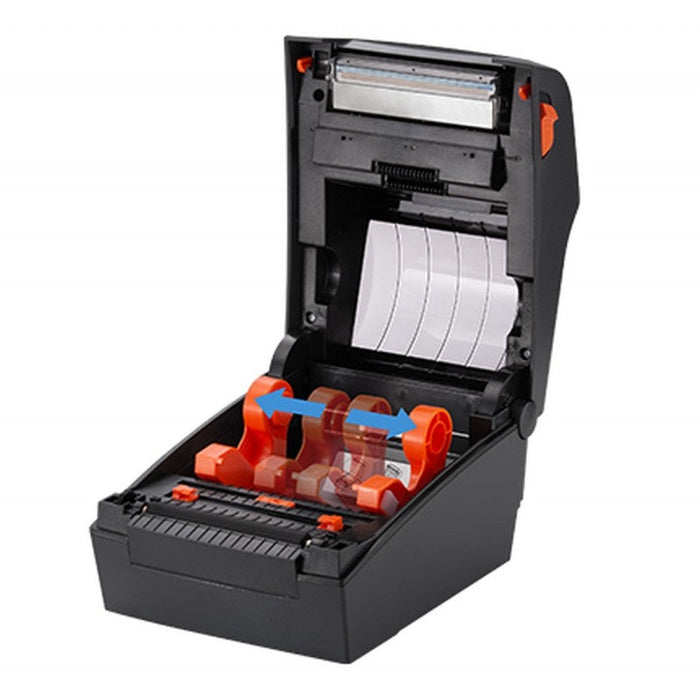

  • Smart Media Handling: Equipped with Smart Media Detection™ to automatically recognise Gap, Black Mark, Continuous, or Notch media formats.

  • Versatile Emulation: Fully compatible with industry-standard programming languages including SLCS, BPL-Z™ (ZPL II), and BPL-E™ (EPL).

Feature Specification
Manufacturer Part Code XD5-40dOEK
Print Method Direct Thermal
Resolution 203 dpi ($8 \text{ dots/mm}$)
Max Print Speed 178 mm/sec
Max Print Width 108 mm
Media Width Range 15 mm to 118 mm
Media Roll Diameter Up to 127 mm (5 inches)
Memory 64 MB SDRAM / 128 MB Flash
Display FSTN LCD (200 x 100 pixels)
Dimensions (WxDxH) 194mm x 248mm x 169mm



Software & Drivers

  • Supported OS: Compatible with Microsoft Windows, Apple macOS, and Linux.

  • Design Tools: Bundled with BarTender® UltraLite for BIXOLON and Label Artist-II™.

  • Management Utility: Fully compatible with BIXOLON’s XPM™ web-based printer profile management software.

What’s in the Box?

  • BIXOLON XD5-40dOEK Label Printer (Black)

  • External AC/DC Power Adaptor & UK Power Cord

  • USB Type B Cable

  • Quick Installation Guide
