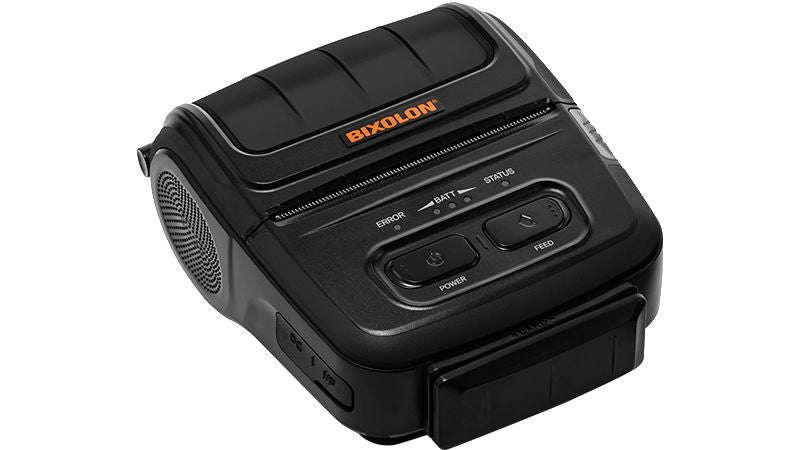

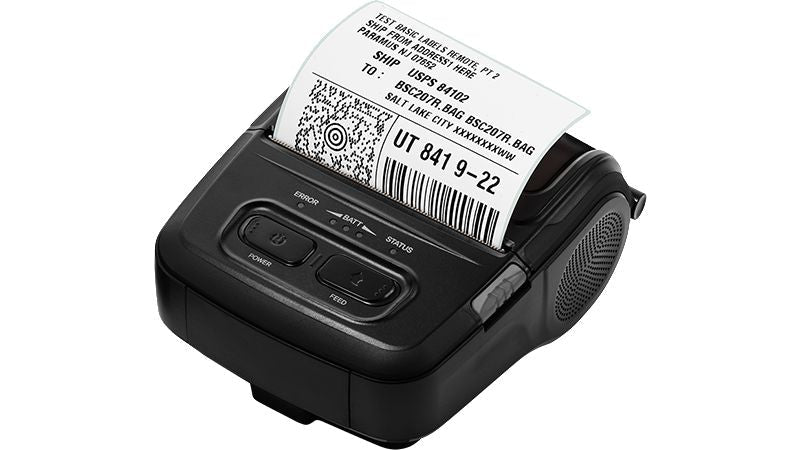

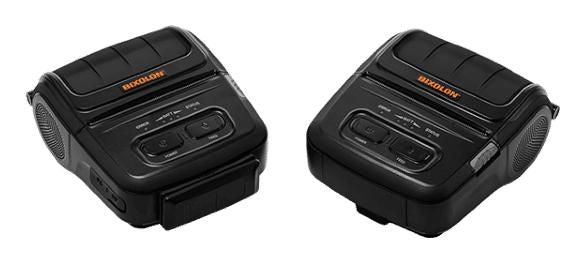

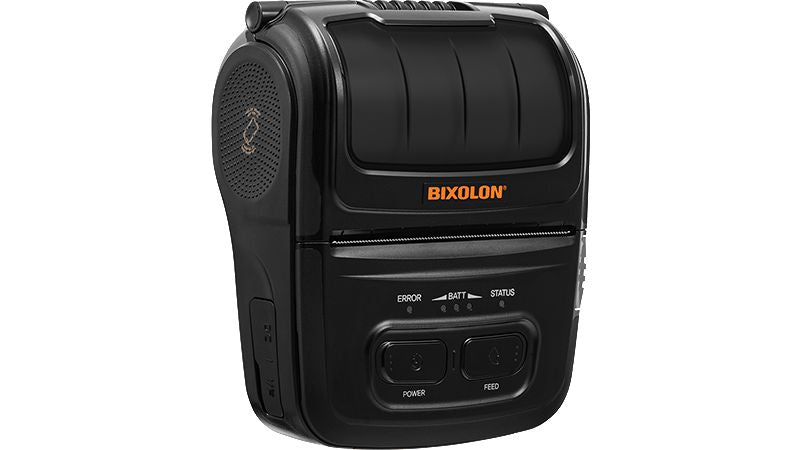

Bixolon SPP-L310IAK5 Direct Thermal Mobile Label Printer

The Bixolon SPP-L310IAK5 is a mid-range, 3-inch (80mm) rugged mobile barcode label printer engineered for on-the-go printing applications across transport, logistics, warehousing, healthcare, and retail. Operating via direct thermal print technology, this lightweight unit eliminates the need for ink or toner, delivering barcode labels, receipt labels, and dispatch documentation precisely when and where they are required.

The specific SPP-L310IAK5 variant features built-in USB 2.0, RS232 Serial, and Bluetooth 5.0 (MFi certified) connectivity, enabling communication with Apple iOS, Android, and Windows mobile devices, handheld terminals, and tablets.

Key Operational Features

High-Speed Direct Thermal Printing

The internal print engine delivers high-resolution 203 dpi (8 dots/mm) text, graphics, and 1D/2D barcodes at print speeds up to 5 inches per second (127 mm/sec) for standard liner media. For organisations utilising eco-friendly layouts, it supports optional linerless media roll configurations at print speeds up to 4 inches per second (102 mm/sec).

Advanced Mobile Connectivity & Pairing

Equipped with Bluetooth 5.0 and physical USB and Serial ports, this model provides stable data transmission rates over wireless networks. An embedded Near Field Communication (NFC) tag allows for auto-pairing with Android and iOS warehouse scanners or tablets, bypassing manual Bluetooth pairing menus to minimise setup delays in the field.

Industrial Build Quality & Ingress Protection

Weighing 385g including the battery, the compact outer casing carries an IP54 protection rating against dust ingress and water splashing. The mechanical housing is drop-tested to withstand repeated falls from up to 1.8 metres (6 feet) onto concrete surfaces, ensuring survivability in rough courier, transport, and distribution environments.

Broad Media & Sensor Capabilities

The printer features a flexible media bay accepting standard 80mm roll widths. Using a detachable media holder accessory, it can adjust downward to support 58mm, 62mm, 66mm, 70mm, and 74mm label rolls. Integrated tracking sensors include a transmissive gap sensor, reflective black mark sensor, paper end indicator, and a mechanical cover-open sensor to prevent misprints and tracking errors.

Comprehensive Software & Emulation Support

The device offers native compatibility with market-leading printer languages including SLCS, BPL-Z (ZPL II), and BPL-C (CPCL), switching between command languages automatically without requiring manual mode adjustments. It is fully backed by Windows drivers, Linux/Mac CUPS drivers, and comprehensive SDKs for custom software deployment.

Core Applications

• Logistics & Transport: Courier proof of delivery, dispatch notes, freight tracking labels, and shipping tags.

• Warehousing: Inventory management labels, pick-and-pack routing slips, bin location markers, and pallet tracking barcodes.

• Retail: Shelf-edge price marking, markdowns, click-and-collect order labels, and direct store delivery tracking.

• Healthcare: Bedside specimen labelling, pharmacy prescription labels, asset tracking, and patient records management.

Technical Specifications

What is in the Box?

• 1 x Bixolon SPP-L310 Mobile Label Printer Unit

• 1 x Rechargeable 3200 mAh Lithium-ion Battery Pack

• 1 x AC/DC Battery Charger & Power Cord (UK Mains Plug Configuration)

• 1 x Durable Plastic Belt Clip

• 1 x Quick Start Reference Guide
